MAX6023 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

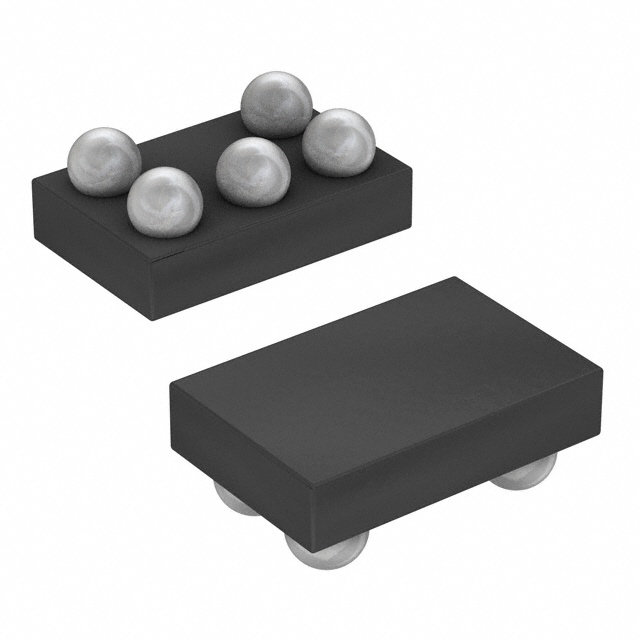

IC VREF SERIES 4.5V 5UCSP

Part	Temperature Coefficient	Voltage - Output (Min/Fixed)	Package / Case	Output Type	Noise - 0.1Hz to 10Hz	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Reference Type	Current - Output	Supplier Device Package	Tolerance	Noise - 10Hz to 10kHz	Voltage - Input [Min]	Voltage - Input [Max]
Analog Devices Inc./Maxim Integrated MAX6023EBT45+
Analog Devices Inc./Maxim Integrated MAX6023EBT25	30 ppm/°C	2.5 V	5-WFBGA CSPBGA	1.81 mOhm	60 µVp-p	35 µA	85 °C	-40 °C	Surface Mount	Series	500 µA	5-UCSP (1x1.52)	0.2 %	125 µVrms	2.7 V	12.6 V
Analog Devices Inc./Maxim Integrated MAX6023EBT21	30 ppm/°C	2.048 V	5-WFBGA CSPBGA	1.81 mOhm	40 µVp-p	35 µA	85 °C	-40 °C	Surface Mount	Series	500 µA	5-UCSP (1x1.52)	0.2 %	105 µVrms	2.5 V	12.6 V
Analog Devices Inc./Maxim Integrated MAX6023EBT21-T	30 ppm/°C	2.048 V	5-WFBGA CSPBGA	1.81 mOhm	40 µVp-p	35 µA	85 °C	-40 °C	Surface Mount	Series	500 µA	5-UCSP (1x1.52)	0.2 %	105 µVrms	2.5 V	12.6 V
Analog Devices Inc./Maxim Integrated MAX6023EBT41+	30 ppm/°C	4.096 V	5-WFBGA CSPBGA	1.81 mOhm	100 µVp-p	35 µA	85 °C	-40 °C	Surface Mount	Series	500 µA	5-UCSP (1x1.52)	0.2 %	200 µVrms	4.296 V	12.6 V
Analog Devices Inc./Maxim Integrated MAX6023EBT50-T	30 ppm/°C	5 V	5-WFBGA CSPBGA	1.81 mOhm	120 µVp-p	35 µA	85 °C	-40 °C	Surface Mount	Series	500 µA	5-UCSP (1x1.52)	0.2 %	240 µVrms	5.2 V	12.6 V
Analog Devices Inc./Maxim Integrated MAX6023EBT25+T	30 ppm/°C	2.5 V	5-WFBGA CSPBGA	1.81 mOhm	60 µVp-p	35 µA	85 °C	-40 °C	Surface Mount	Series	500 µA	5-UCSP (1x1.52)	0.2 %	125 µVrms	2.7 V	12.6 V
Analog Devices Inc./Maxim Integrated MAX6023EBT50+T	30 ppm/°C	5 V	5-WFBGA CSPBGA	1.81 mOhm	120 µVp-p	35 µA	85 °C	-40 °C	Surface Mount	Series	500 µA	5-UCSP (1x1.52)	0.2 %	240 µVrms	5.2 V	12.6 V
Analog Devices Inc./Maxim Integrated MAX6023EBT21+T	30 ppm/°C	2.048 V	5-WFBGA CSPBGA	1.81 mOhm	40 µVp-p	35 µA	85 °C	-40 °C	Surface Mount	Series	500 µA	5-UCSP (1x1.52)	0.2 %	105 µVrms	2.5 V	12.6 V
Analog Devices Inc./Maxim Integrated MAX6023EBT12+	30 ppm/°C	1.25 V	5-WFBGA CSPBGA	1.81 mOhm	25 µVp-p	35 µA	85 °C	-40 °C	Surface Mount	Series	500 µA	5-UCSP (1x1.52)	0.24 %		2.5 V	12.6 V
