ELT-315 Series
Manufacturer: Everlight Electronics Co Ltd
Beta
⌘K

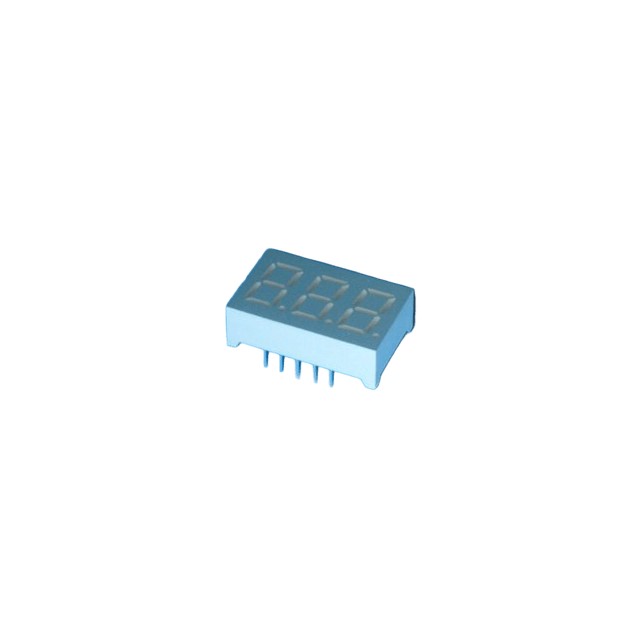

DISP 7SEG 0.36" TRP YLW-GN 12DIP
| Part | Color | Wavelength - Peak | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Digit/Alpha Size | Digit/Alpha Size | Millicandela Rating | Current - Test | Number of Characters | Voltage - Forward (Vf) (Typ) | Package / Case | Package / Case | Common Pin | Display Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Everlight Electronics Co Ltd | Yellow-Green | 575 nm | 0.555 in | 22.6 mm | 14.1 mm | 0.283 in | 0.89 in | 7.2 mm | 9.14 mm | 0.36 in | 3.2 mcd | 20 mA | 3 | 2 V | 12-DIP | 0.4 in 11 Leads | Common Cathode | 7-Segment |
Everlight Electronics Co Ltd | Red | 650 nm | 0.555 in | 22.6 mm | 14.1 mm | 0.283 in | 0.89 in | 7.2 mm | 9.14 mm | 0.36 in | 20 mA | 3 | 2 V | 12-DIP | 0.4 in 11 Leads | Common Cathode | 7-Segment | |
 Everlight Electronics Co Ltd | Orange-Red | 621 nm | 0.555 in | 22.6 mm | 14.1 mm | 0.283 in | 0.89 in | 7.2 mm | 9.14 mm | 0.36 in | 12.5 mcd | 20 mA | 3 | 2 V | 12-DIP | 0.4 in 11 Leads | Common Cathode | 7-Segment |
