173081 Series

Catalog

EIS POST ASSY V 3P GOLD NATU.

Part	Applications	Mounting Type	Contact Type	Contact Material	Number of Positions Loaded	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Shape	Insulation Color	Pitch - Mating	Pitch - Mating	Connector Type	Contact Length - Mating	Contact Length - Mating	Style	Insulation Height	Insulation Height	Fastening Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Overall Contact Length	Overall Contact Length	Termination	Shrouding	Voltage Rating	Contact Finish - Mating	Current Rating (Amps)	Number of Positions

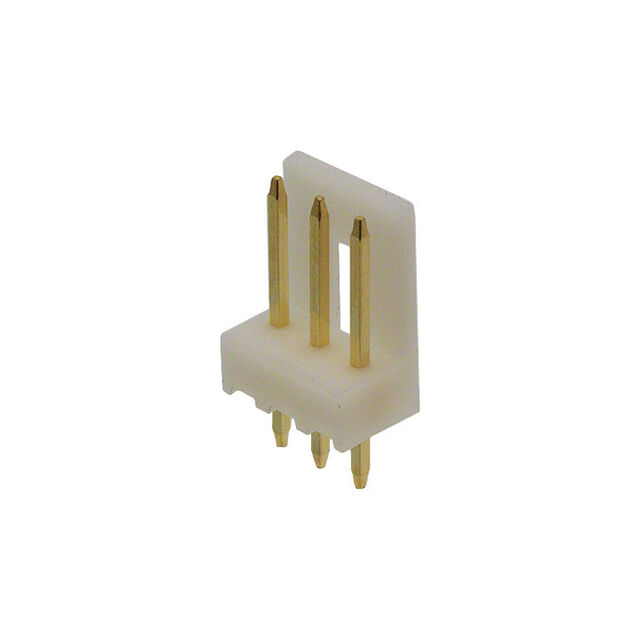

TE Connectivity AMP Connectors 173081-3	General Purpose	Through Hole	Male Pin	Brass	All	Nylon 6/6 Polyamide (PA66)	0.142 in	3.6 mm	Square	Natural	2.5 mm	0.098 in	Header	7.49 mm	0.295 in	Board to Cable/Wire	0.409 in	10.4 mm	Latch Holder	UL94 V-0	95 °C	-20 ░C	1	14 mm	0.551 in	Solder	Shrouded - 1 Wall	250 VAC 350 VDC	Gold	Varies by Wire Gauge

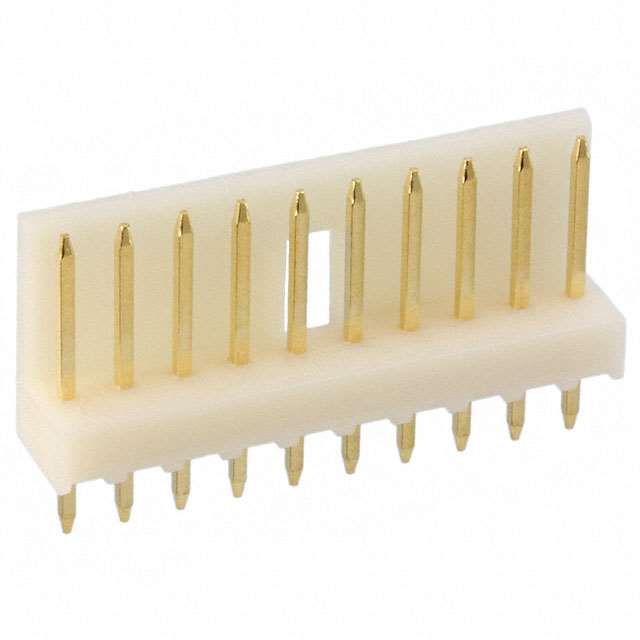

TE Connectivity AMP Connectors 1-173081-0	General Purpose	Through Hole	Male Pin	Brass	All	Nylon 6/6 Polyamide (PA66)	0.142 in	3.6 mm	Square	Natural	2.5 mm	0.098 in	Header	7.49 mm	0.295 in	Board to Cable/Wire	0.409 in	10.4 mm	Latch Holder	UL94 V-0	95 °C	-20 ░C	1	14 mm	0.551 in	Solder	Shrouded - 1 Wall	250 VAC 350 VDC	Gold	Varies by Wire Gauge	10
TE Connectivity AMP Connectors 173081-8	General Purpose	Through Hole	Male Pin	Brass	All	Nylon 6/6 Polyamide (PA66)	0.142 in	3.6 mm	Square	Natural	2.5 mm	0.098 in	Header	7.49 mm	0.295 in	Board to Cable/Wire	0.409 in	10.4 mm	Latch Holder	UL94 V-0	95 °C	-20 ░C	1	14 mm	0.551 in	Solder	Shrouded - 1 Wall	250 VAC 350 VDC	Gold	Varies by Wire Gauge	8
