Da0 Series Series

Miniature Single Pole Rocker Switch Rocker Switches Rocker

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Miniature Single Pole Rocker Switch Rocker Switches Rocker

Part	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mounting Type	Voltage Rating - AC	Current Rating (Amps)	Switch Function	Electrical Life	Approval Agency	Actuator Type	Actuator Marking	Termination Style	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features
Littelfuse/Commercial Vehicle Products DA102J11S115QF	85 °C	-20 C	SPST	Panel Mount Snap-In	125 V	16 A	On-Off	10000 Cycles	cULus	Concave (Curved)	No Marking	Quick Connect - 0.187" (4.7mm)	White
Littelfuse/Commercial Vehicle Products DA102J4RS215QF7	85 °C	-20 C	SPST	Panel Mount Snap-In	125 V	16 A	On-Off	10000 Cycles	cULus	Concave (Curved) - Illuminated	No Marking	Quick Connect - 0.187" (4.7mm)	Red	Neon Red	125 VAC

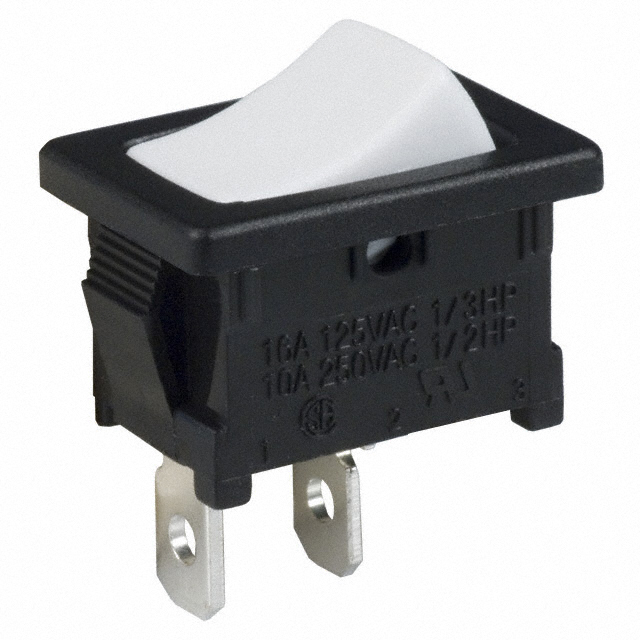

Littelfuse/Commercial Vehicle Products DA102J11S215QF	85 °C	-20 C	SPST	Panel Mount Snap-In	125 V	16 A	On-Off	10000 Cycles	cULus	Concave (Curved)	No Marking	Quick Connect - 0.187" (4.7mm)	White
Littelfuse/Commercial Vehicle Products DA102J12S215HQF	85 °C	-20 C	SPST	Panel Mount Snap-In	125 V	16 A	On-Off	10000 Cycles	cULus	Concave (Curved)	O I	Quick Connect - 0.187" (4.7mm)	Black
Littelfuse/Commercial Vehicle Products DA102J5GS215QF6	85 °C	-20 C	SPST	Panel Mount Snap-In	125 V	16 A	On-Off	10000 Cycles	cULus	Concave (Curved) - Illuminated	No Marking	Quick Connect - 0.187" (4.7mm)	Green	Green LED	1.85 VDC
Littelfuse/Commercial Vehicle Products DA102J12B215DQF	85 °C	-20 C	SPST	Panel Mount Snap-In	125 V	16 A	On-Off	10000 Cycles	cULus	Concave (Curved)	ON OFF Vertical	Quick Connect - 0.187" (4.7mm)	Black			27.13 mm	19.2 mm	Guard

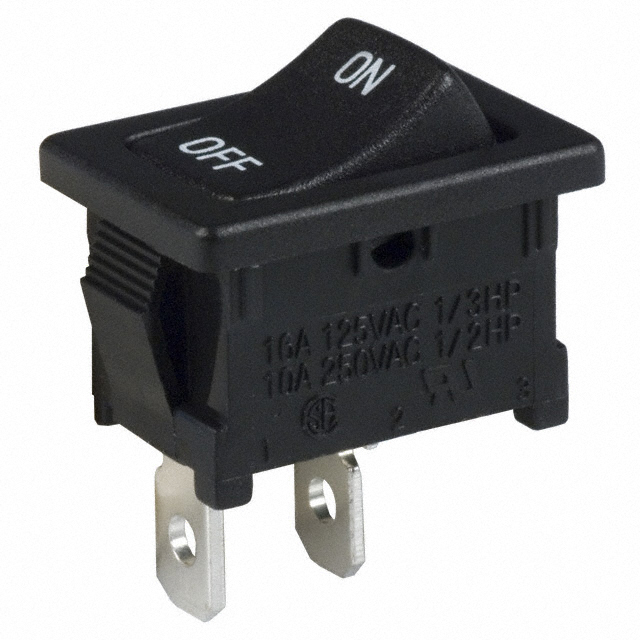

Littelfuse/Commercial Vehicle Products DA102J12S215DQF	85 °C	-20 C	SPST	Panel Mount Snap-In	125 V	16 A	On-Off	10000 Cycles	cULus	Concave (Curved)	ON OFF Vertical	Quick Connect - 0.187" (4.7mm)	Black

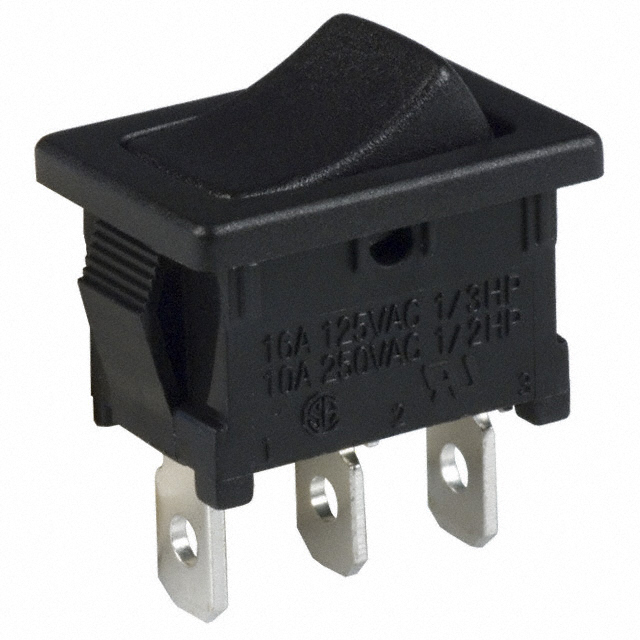

Littelfuse/Commercial Vehicle Products DA101J12S215QF	85 °C	-20 C	SPDT	Panel Mount Snap-In	125 V	16 A	On-On	10000 Cycles	cULus	Concave (Curved)	No Marking	Quick Connect - 0.187" (4.7mm)	Black
Littelfuse/Commercial Vehicle Products DA102J5GG215QF6	85 °C	-20 C	SPST	Panel Mount Snap-In	125 V	16 A	On-Off	10000 Cycles	cULus	Concave (Curved) - Illuminated	No Marking	Quick Connect - 0.187" (4.7mm)	Green	Green LED	1.85 VDC			Guard
Littelfuse/Commercial Vehicle Products DA101J11S215QF	85 °C	-20 C	SPDT	Panel Mount Snap-In	125 V	16 A	On-On	10000 Cycles	cULus	Concave (Curved)	No Marking	Quick Connect - 0.187" (4.7mm)	White

Catalog

Miniature Single Pole Rocker Switch Rocker Switches Rocker

Key Features

• Guards to prevent accidental actuation

• Maintained function only

• IP54 splash proof rubber boot option

Description

Those designing medical instrumentation need to make sure that the components they use can withstand the harsh environments they’re used in. C&K’s DA series miniature single pole rocker switches are perfect for that industry because of their IP54 splash proof rubber boot option and guards that prevent accidental actuation. Also used by makers of small appliances, computers and peripherals, the DA series also feature options for both momentary and maintained functions.
