H3072 Series
Manufacturer: Harwin Inc.
Beta
⌘K

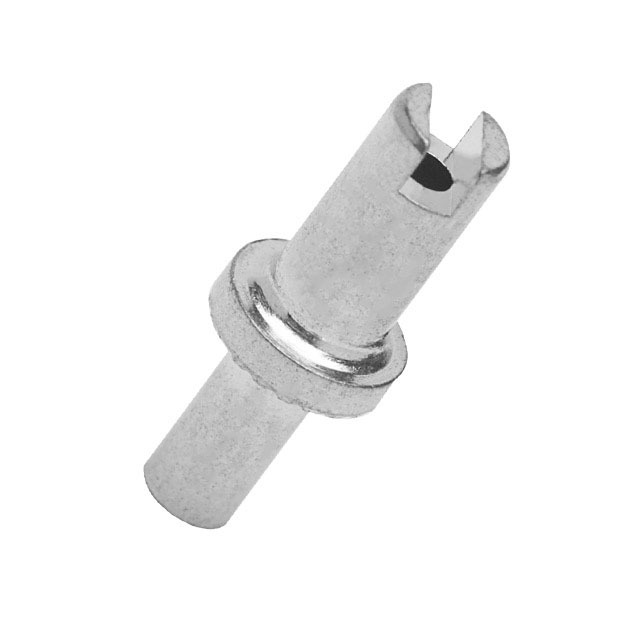

VERTICAL THROUGHBOARD SLOTTED LUG ROHS COMPLIANT: YES
| Part | Insulation | Length - Below Flange [Min] [x] | Length - Below Flange [Max] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Max] [x] | Length - Above Board [Min] [x] | Length - Above Board [Min] [x] | Length - Above Board [Max] [x] | Length - Above Board [Max] [x] | Number of Turrets | Contact Finish | Flange Diameter [Max] [diameter] | Flange Diameter [Min] [diameter] | Flange Diameter [Max] [diameter] | Flange Diameter [Min] [diameter] | Contact Material | Terminal Type | Mounting Type | Length - Overall [Max] [x] | Length - Overall [Min] [x] | Length - Overall [Max] [x] | Length - Overall [Min] [x] | Termination | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Max] [diameter] | Staking Side OD [Max] | Staking Side OD [Min] | Staking Side OD [Max] | Staking Side OD [Min] | Board Thickness | Board Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Non-Insulated | 3.96 mm | 0.161 " | 0.156 " | 4.09 mm | 0.241 " | 6.12 mm | 6.62 mm | 0.261 " | Single | Tin | 4.09 mm | 3.96 mm | 0.161 in | 0.156 in | Brass Alloy | Fork Hollow Single End | Through Hole | 0.422 in | 10.21 mm | 10.71 mm | 0.402 in | Swage | 2.03 mm | 0.08 " | 0.083 " | 2.11 mm | 2.01 mm | 0.076 in | 0.079 in | 1.93 mm | 0.126 in | 3.2 mm |
