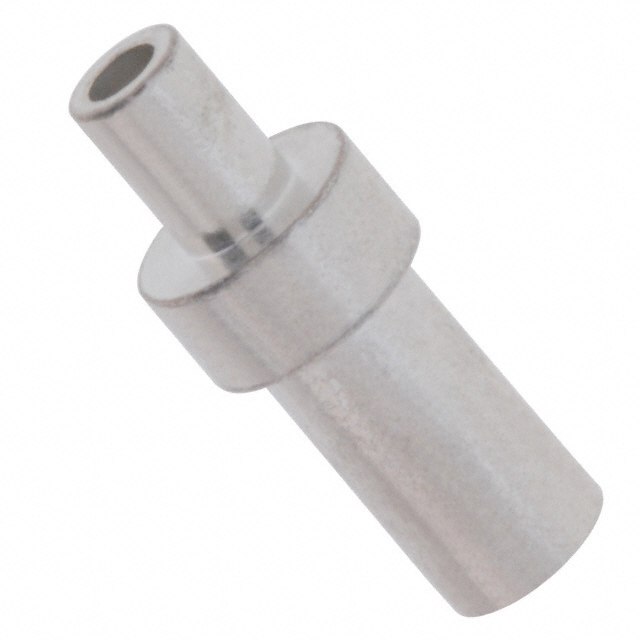

0344-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PIN RCPT
| Part | Board Thickness | Board Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter | Mounting Hole Diameter | Termination | Socket Depth | Socket Depth | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Tail Type | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 1.57 mm | 0.062 " | -55 C | 125 °C | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | Gold | 0.25 Ám | 10 Áin | 0.067 in | 1.7 mm | Swage | 0.2 in | 5.08 mm | 1.63 mm | 0.064 in | No Tail | 8.23 mm | 0.324 " | 0.125 in | 3.18 mm | Beryllium Copper |
 Mill-Max Manufacturing Corp. | 1.57 mm | 0.062 " | -55 C | 125 °C | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | Gold | 0.76 Ám | 30 Áin | 0.067 in | 1.7 mm | Swage | 0.2 in | 5.08 mm | 1.63 mm | 0.064 in | No Tail | 8.23 mm | 0.324 " | 0.125 in | 3.18 mm | Beryllium Copper |
Mill-Max Manufacturing Corp. | 1.57 mm | 0.062 " | -55 C | 125 °C | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | Tin | 5.08 Ám | 200 Áin | 0.067 in | 1.7 mm | Swage | 0.2 in | 5.08 mm | 1.63 mm | 0.064 in | No Tail | 8.23 mm | 0.324 " | 0.125 in | 3.18 mm | Beryllium Copper |
Mill-Max Manufacturing Corp. | 1.57 mm | 0.062 " | -55 C | 125 °C | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | Gold | 0.25 Ám | 10 Áin | 0.067 in | 1.7 mm | Swage | 0.2 in | 5.08 mm | 1.63 mm | 0.064 in | No Tail | 8.23 mm | 0.324 " | 0.125 in | 3.18 mm | Beryllium Copper |
Mill-Max Manufacturing Corp. | 1.57 mm | 0.062 " | -55 C | 125 °C | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | Gold | 0.76 Ám | 30 Áin | 0.067 in | 1.7 mm | Swage | 0.2 in | 5.08 mm | 1.63 mm | 0.064 in | No Tail | 8.23 mm | 0.324 " | 0.125 in | 3.18 mm | Beryllium Copper |
Mill-Max Manufacturing Corp. | 1.57 mm | 0.062 " | -55 C | 125 °C | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | Gold | 0.76 Ám | 30 Áin | 0.067 in | 1.7 mm | Swage | 0.2 in | 5.08 mm | 1.63 mm | 0.064 in | No Tail | 8.23 mm | 0.324 " | 0.125 in | 3.18 mm | Beryllium Copper |
