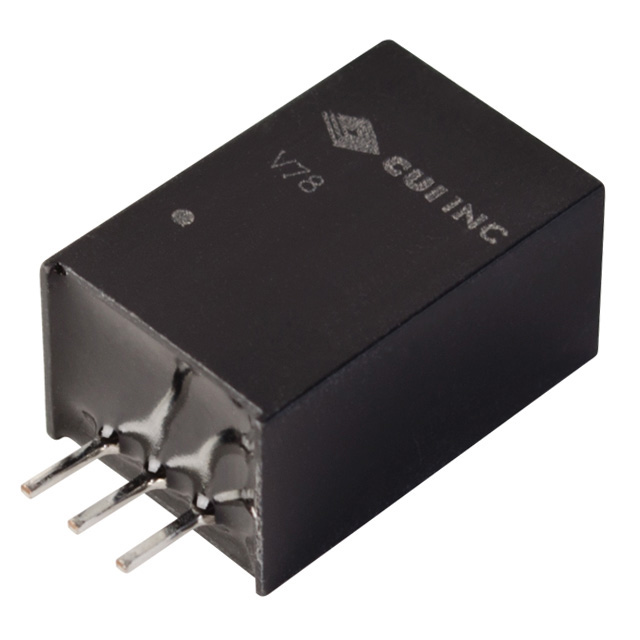

V7805 Series
Manufacturer: CUI Inc.
Beta
⌘K
MODULE DC-DC 12VIN 1-OUT 5V 1.5A 7.5W 3-PIN
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Input (Max) [Max] | Features | Number of Outputs | Voltage - Output 1 | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Power (Watts) | Mounting Type | Type | Efficiency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Package / Case | Standard Number | Approval Agency | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 85 °C | -40 C | ITE (Commercial) | 18 V | OTP SCP | 1 | 5 V | 6.5 V | 1.5 A | 7.5 W | Through Hole | Linear Regulator Replacement | 93 % | 9 mm | 0.69 in | 0.35 in | 0.45 " | 11.5 mm | 17.5 mm | 3-SIP Module | |||
 CUI Inc. | 85 °C | -40 C | ITE (Commercial) | 18 V | OTP SCP | 1 | 5 V | 7 V | 2 A | 10 W | Right Angle Through Hole | Linear Regulator Replacement | 91 % | 11.5 mm | 0.35 in | 0.45 in | 0.69 in | 17.5 mm | 9 mm | 3-SIP Module | 55024 55032 Class A 60950-1 | CB Scheme EN IEC | |
 CUI Inc. | 85 °C | -40 C | ITE (Commercial) | 32 V | OTP SCP | 1 | 5 V | 6.5 V | 500 mA | Through Hole | Linear Regulator Replacement | 93 % | 7.6 mm | 0.4 " | 0.3 " | 0.45 " | 11.4 mm | 10.2 mm | 3-SIP Module | ||||
 CUI Inc. | 85 °C | -40 C | ITE (Commercial) | 72 V | OTP SCP | 1 | 5 V | 9 V | 500 mA | Right Angle Through Hole | Linear Regulator Replacement | 87 % | 11.5 mm | 0.35 in | 0.45 in | 0.69 in | 17.5 mm | 9 mm | 3-SIP Module | ||||
 CUI Inc. | 85 °C | -40 C | ITE (Commercial) | 18 V | OTP SCP | 1 | 5 V | 6.5 V | 1.5 A | 7.5 W | Right Angle Through Hole | Linear Regulator Replacement | 93 % | 11.5 mm | 0.35 in | 0.45 in | 0.69 in | 17.5 mm | 9 mm | 3-SIP Module | |||
 CUI Inc. | 85 °C | -40 C | ITE (Commercial) | 72 V | OTP SCP | 1 | 5 V | 9 V | 500 mA | Through Hole | Linear Regulator Replacement | 87 % | 9 mm | 0.69 in | 0.35 in | 0.45 " | 11.5 mm | 17.5 mm | 3-SIP Module | ||||
 CUI Inc. | 85 °C | -40 C | ITE (Commercial) | 28 V | OTP Remote On/Off SCP | 1 | 5 V | 6 V | 500 mA | Surface Mount | Linear Regulator Replacement | 94 % | 8.3 mm | 0.29 in | 0.33 " | 0.6 " | 15.2 mm | 7.3 mm | 10-SMD Module 6 Leads | Active High Enable | |||
 CUI Inc. | 85 °C | -40 C | ITE (Commercial) | 18 V | OTP Remote On/Off SCP | 1 | 5 V | 7 V | 1 A | 5 W | Surface Mount | Linear Regulator Replacement | 90 % | 8.5 mm | 0.29 in | 0.33 " | 0.6 " | 15.2 mm | 7.3 mm | 10-SMD Module 6 Leads | Active High Enable | ||
 CUI Inc. | 85 °C | -40 C | ITE (Commercial) | 32 V | OTP SCP | 1 | 5 V | 6.5 V | 1 A | 5 W | Through Hole | Linear Regulator Replacement | 93 % | 9 mm | 0.69 in | 0.35 in | 0.45 " | 11.5 mm | 17.5 mm | 3-SIP Module | |||
 CUI Inc. | 85 °C | -40 C | ITE (Commercial) | 32 V | OTP SCP | 1 | 5 V | 6.5 V | 1 A | 5 W | Right Angle Through Hole | Linear Regulator Replacement | 93 % | 11.5 mm | 0.35 in | 0.45 in | 0.69 in | 17.5 mm | 9 mm | 3-SIP Module |
