833-031 Series
Manufacturer: EDAC Inc.
Beta
⌘K

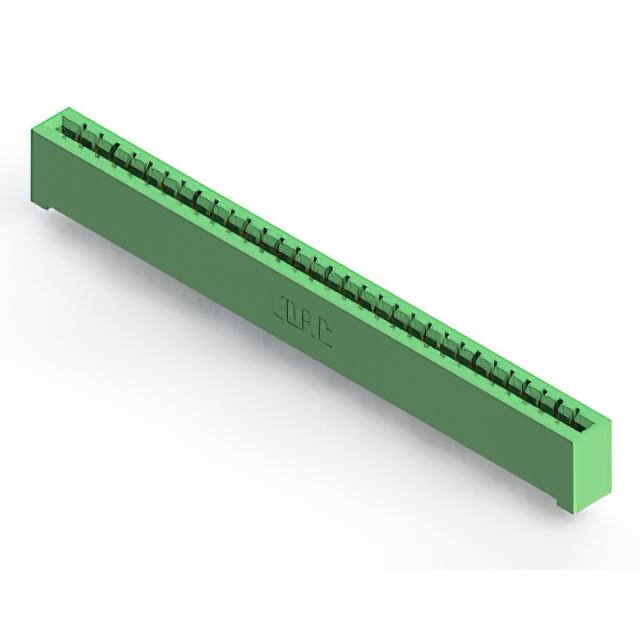

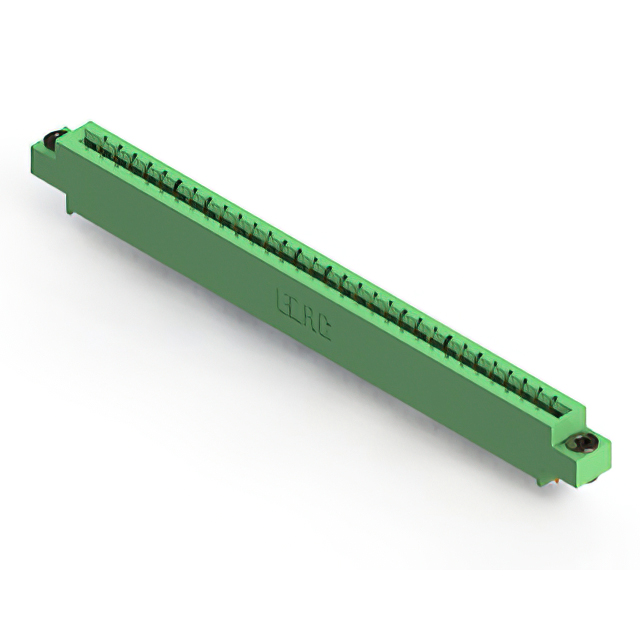

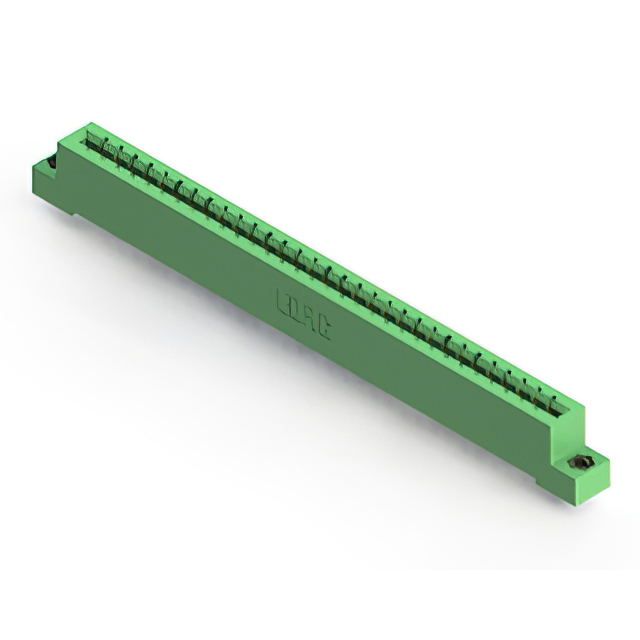

CONN EDGE SGL FMALE 31POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Read Out | Flange Feature | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row [custom] | Termination | Contact Finish | Contact Material | Number of Positions [custom] | Pitch | Pitch | Mounting Type | Contact Type | Color | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 1 | Single | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 31 | Wire Wrap | Gold | Copper Alloy | 31 | 3.96 mm | 0.156 in | Through Hole | Cantilever | Green | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 1 | Single | Side Mount Opening Unthreaded | Non Specified - Single Edge | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 31 | Solder | Gold | Copper Alloy | 31 | 3.96 mm | 0.156 in | Through Hole | Cantilever | Green | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 1 | Single | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 31 | Solder | Gold | Copper Alloy | 31 | 3.96 mm | 0.156 in | Right Angle Through Hole | Cantilever | Green | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 1 | Single | Non Specified - Single Edge | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 31 | Solder | Gold | Copper Alloy | 31 | 3.96 mm | 0.156 in | Right Angle Through Hole | Cantilever | Green | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 1 | Single | Floating Bobbin Top Mount Opening | Non Specified - Single Edge | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 31 | Solder Eyelet(s) | Gold | Copper Alloy | 31 | 3.96 mm | 0.156 in | Through Hole | Cantilever | Green | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 1 | Single | Side Mount Opening Unthreaded | Non Specified - Single Edge | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 31 | Wire Wrap | Gold | Copper Alloy | 31 | 3.96 mm | 0.156 in | Through Hole | Cantilever | Green | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 1 | Single | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 31 | Solder Eyelet(s) | Gold | Copper Alloy | 31 | 3.96 mm | 0.156 in | Through Hole | Cantilever | Green | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 1 | Single | Non Specified - Single Edge | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 31 | Solder | Gold | Copper Alloy | 31 | 3.96 mm | 0.156 in | Through Hole | Cantilever | Green | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 1 | Single | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 31 | Wire Wrap | Gold | Copper Alloy | 31 | 3.96 mm | 0.156 in | Through Hole | Cantilever | Green | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 1 | Single | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 125 °C | -40 C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 31 | Solder | Gold | Copper Alloy | 31 | 3.96 mm | 0.156 in | Right Angle Through Hole | Cantilever | Green |
