SK12BA Series
Manufacturer: NKK Switches
Beta
⌘K

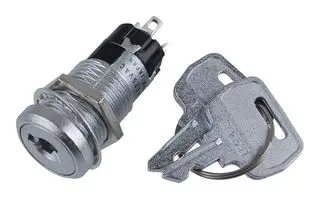

KEYLOCK SWITCH, ON-NONE-ON, SPDT, SK SERIES, 2 POSITION, SOLDER, 3 A
| Part | Depth Behind Flange | Mechanical Life | Electrical Life | Voltage Rating - AC | Termination Style | Circuit | Contact Timing | Panel Cutout Dimensions [diameter] | Number of Positions | Mounting Type | Actuator Type | Current Rating (Amps) | Features | Contact Material | Switch Function | Key Removable Positions | Angle of Throw | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 27 mm | 30000 Steps | 10000 Cycles | 125 V | Solder Lug | SPDT | Non-Shorting (BBM) | 12 mm | 2 | Panel Mount | Flat Key | 3 A | Epoxy Sealed Terminals | Silver (Ag) | On-On | 1 | 90 ° | -25 °C | 70 °C |
