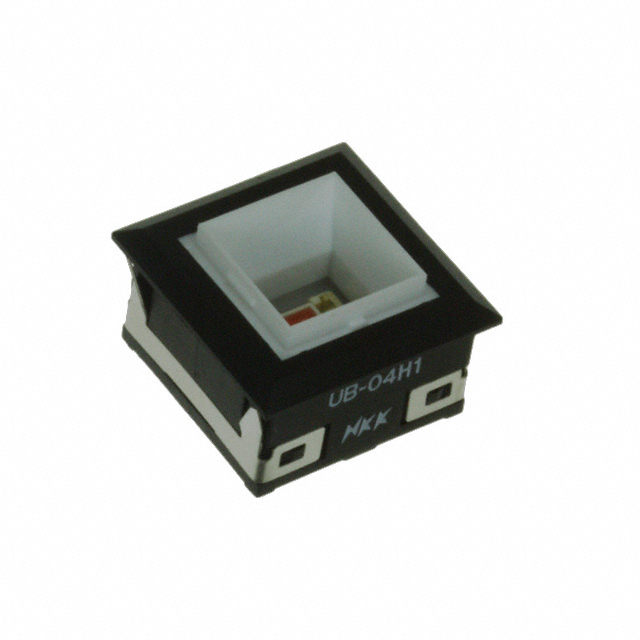

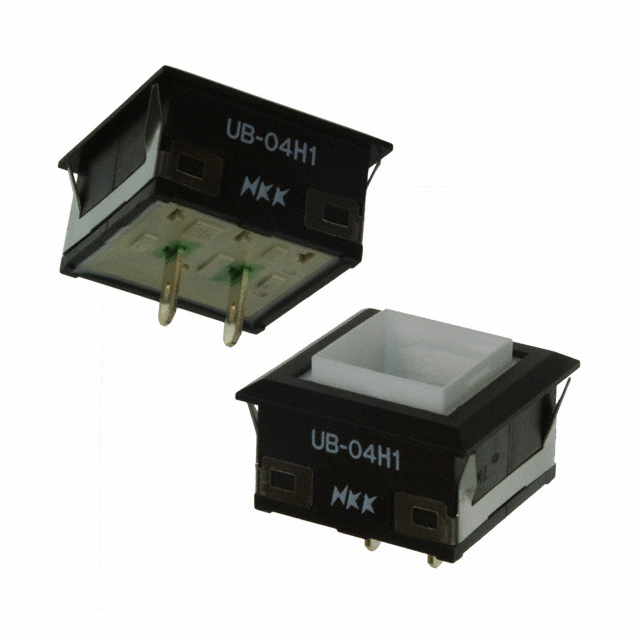

UB04KW015 Series
Manufacturer: NKK Switches
Beta
⌘K
INDICATOR SQ AMB ILLUM AMBER CAP
| Part | Lens Color | Lamp Color | Voltage | Lens Style | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current | Lens Transparency | Panel Cutout Shape | Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Amber | Amber | 2 V | Square with Flat Top | 0.7 " | 17.78 mm | 0.7 " | 17.78 mm | 30 mA | Diffused | Square | LED | |
NKK Switches | Green | Green | 2.1 V | Square with Flat Top | 0.64 in | 16.2 mm | 0.64 in | 16.2 mm | 25 mA | Diffused | Square | LED | Solder Lug |
NKK Switches | Red | Red | 1.85 V | Square with Flat Top | 0.7 " | 17.78 mm | 0.7 " | 17.78 mm | 30 mA | Clear | Square | LED | |
 NKK Switches | Red | 1.85 V | Square with Flat Top | 0.7 " | 17.78 mm | 0.7 " | 17.78 mm | 30 mA | Square | LED | |||
 NKK Switches | Green | 2.1 V | Square with Flat Top | 0.7 " | 17.78 mm | 0.7 " | 17.78 mm | 30 mA | Square | LED |
