8964-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Length - Overall [x]	Length - Overall [x]	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]
Mill-Max Manufacturing Corp. 8964-0-15-80-30-14-04-0	-55 C	125 °C	Standard Tail	9.78 mm	0.385 in	Press-Fit	0.25 Ám	10 Áin	Beryllium Copper	0.51 mm	0.02 in	Gold	1.45 mm	0.057 in	4.57 mm	0.18 in	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm
Mill-Max Manufacturing Corp. 8964-0-15-01-30-14-04-0	-55 C	125 °C	Standard Tail	9.78 mm	0.385 in	Press-Fit	0.25 Ám	10 Áin	Beryllium Copper	0.51 mm	0.02 in	Gold	1.45 mm	0.057 in	4.57 mm	0.18 in	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm

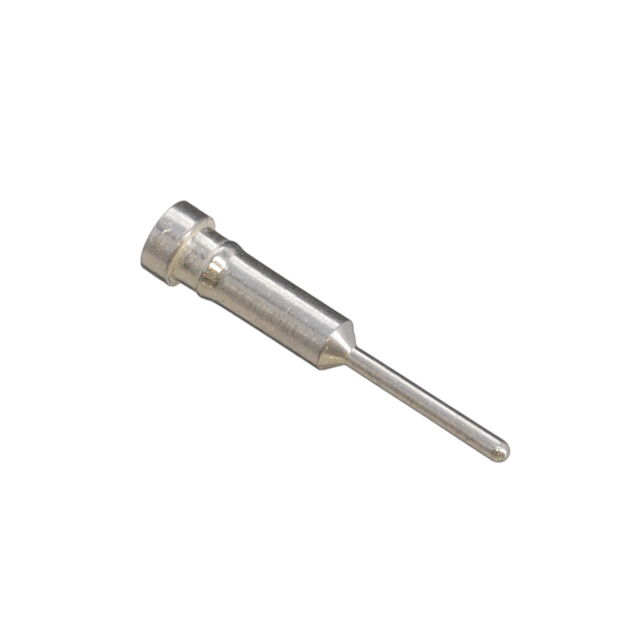

Mill-Max Manufacturing Corp. 8964-0-15-01-30-27-04-0	-55 C	125 °C	Standard Tail	9.78 mm	0.385 in	Press-Fit	0.76 Ám	30 Áin	Beryllium Copper	0.51 mm	0.02 in	Gold	1.45 mm	0.057 in	4.57 mm	0.18 in	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm
Mill-Max Manufacturing Corp. 8964-0-15-80-30-84-04-0	-55 C	125 °C	Standard Tail	9.78 mm	0.385 in	Press-Fit	2.54 µm	100 µin	Beryllium Copper	0.51 mm	0.02 in	Tin	1.45 mm	0.057 in	4.57 mm	0.18 in	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm
Mill-Max Manufacturing Corp. 8964-0-15-80-30-27-04-0	-55 C	125 °C	Standard Tail	9.78 mm	0.385 in	Press-Fit	0.76 Ám	30 Áin	Beryllium Copper	0.51 mm	0.02 in	Gold	1.45 mm	0.057 in	4.57 mm	0.18 in	0.072 "	1.83 mm	0.64 mm	0.015 "	0.025 in	0.38 mm
