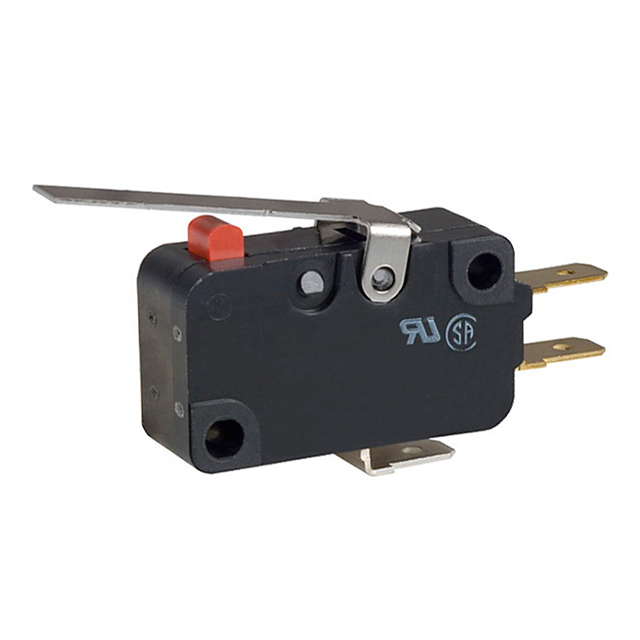

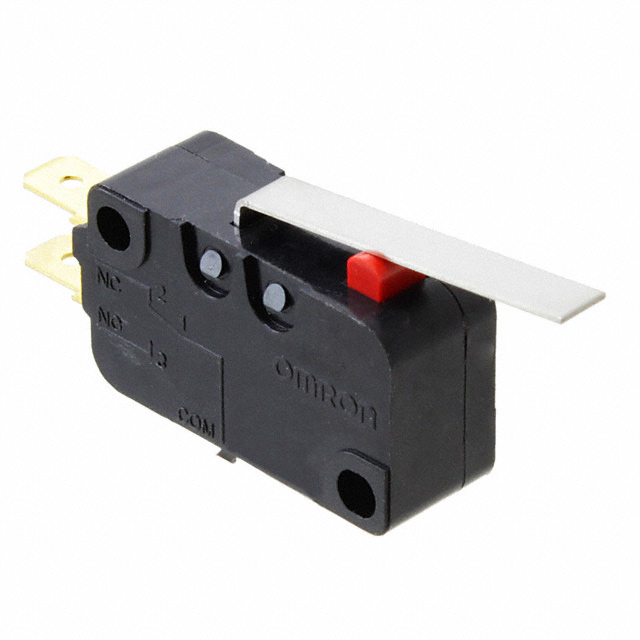

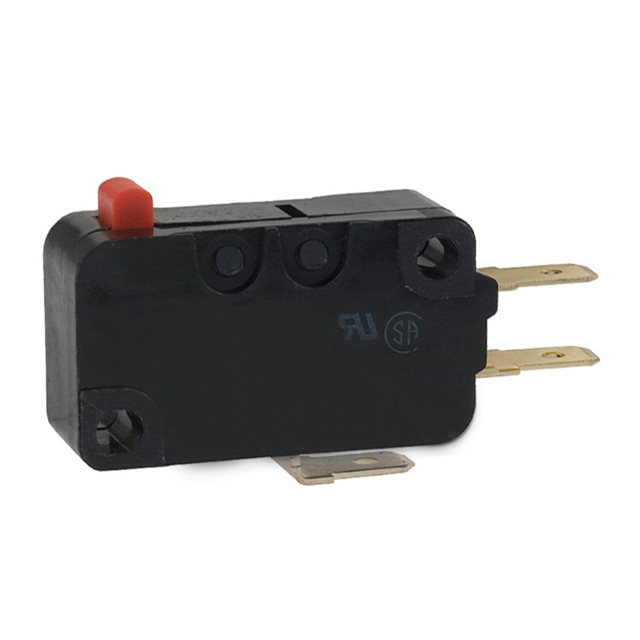

D3V Series
Basic / Snap Action Switches Miniature Basic Switch
Manufacturer: Omron Electronics Inc-EMC Div
Catalog
Basic / Snap Action Switches Miniature Basic Switch
Beta
⌘K
Basic / Snap Action Switches Miniature Basic Switch
Basic / Snap Action Switches Miniature Basic Switch
Basic / Snap Action Switches Miniature Basic Switch
| Part | Pretravel | Pretravel | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Operating Position | Operating Position | Overtravel | Overtravel | Voltage Rating - DC | Differential Travel | Differential Travel | Release Force | Electrical Life | Termination Style | Operating Force | Mounting Type | Voltage Rating - AC | Circuit | Actuator Type | Mechanical Life | Current Rating (Amps) | Operating Position [custom] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 0.063 in | 1.6 mm | IP40 | -25 °C | 105 ░C | On-Mom | 0.6 in | 15.2 mm | 0.79 mm | 0.031 in | 30 V | 0.5 mm | 0.02 in | 50 gf | 200000 Cycles | Quick Connect - 0.187" (4.7mm) | 200 gf | Chassis Mount | 250 V | SPST-NC | Lever Straight | 10000000 Cycles | 6 A 11 A | ||
 Omron Electronics Inc-EMC Div | 0.047 in | 1.2 mm | IP40 | -25 °C | 105 ░C | On-Mom | 0.579 in | 14.7 mm | 1 mm | 0.04 in | 125 VDC | 0.4 mm | 0.016 " | 50 gf | 200000 Cycles | Quick Connect - 0.187" (4.7mm) | 200 gf | Chassis Mount | 250 V | SPST-NC | Round (Pin Plunger) | 10000000 Cycles | 11 A 600 mA | ||
 Omron Electronics Inc-EMC Div | 0.157 in | 4 mm | IP40 | -25 °C | 105 ░C | On-Mom | 18.7 mm | 1.6 mm | 0.062 in | 125 VDC | 0.8 mm | 0.031 " | 14 gf | 100000 Cycles | Quick Connect - 0.187" (4.7mm) | 125 gf | Chassis Mount | 250 V | SPDT | Lever Simulated Roller | 10000000 Cycles | 16 A 600 mA | 0.738 in | ||
Omron Electronics Inc-EMC Div | 0.063 in | 1.6 mm | IP40 | -25 °C | 85 °C | On-Mom | 0.6 in | 15.2 mm | 0.79 mm | 0.031 in | 125 VDC | 0.5 mm | 0.02 in | 20 gf | 50000 Cycles | Quick Connect - 0.250" (6.3mm) | 125 gf | Chassis Mount | 250 V | SPDT | Lever Straight | 10000000 Cycles | 21 A 600 mA | ||
Omron Electronics Inc-EMC Div | 0.047 in | 1.2 mm | IP40 | -25 °C | 105 ░C | On-Mom | 0.579 in | 14.7 mm | 1 mm | 0.04 in | 125 VDC | 0.3 mm | 0.012 " | 15 gf | 200000 Cycles | Quick Connect - 0.250" (6.3mm) | 100 gf | Chassis Mount | 250 V | SPST-NC | Round (Pin Plunger) | 10000000 Cycles | 11 A 100 mA | ||
Omron Electronics Inc-EMC Div | 0.157 in | 4 mm | IP40 | -25 °C | 105 ░C | On-Mom | 0.6 in | 15.2 mm | 1.6 mm | 0.062 in | 30 V | 0.8 mm | 0.031 " | 6.118 gf | 500000 Cycles | Quick Connect Solder | 60 gf | Chassis Mount | 250 V | SPST-NC | Lever Straight | 10000000 Cycles | 6 A | 0.187 in 4.7 mm | |
Omron Electronics Inc-EMC Div | 0.047 in | 1.2 mm | IP40 | -25 °C | 105 ░C | On-Mom | 0.579 in | 14.7 mm | 1 mm | 0.039 in | 0.4 mm | 0.016 " | 15 gf | 500000 Cycles | Quick Connect - 0.250" (6.3mm) | 100 gf | Chassis Mount | 125 V | SPDT | Round (Pin Plunger) | 10000000 Cycles | 6 A | |||
Omron Electronics Inc-EMC Div | 0.063 in | 1.6 mm | IP40 | -25 °C | 105 ░C | On-Mom | 0.6 in | 15.2 mm | 0.79 mm | 0.031 in | 125 VDC | 0.6 mm | 0.025 in | 15 gf | 100000 Cycles | Quick Connect - 0.250" (6.3mm) | 100 gf | Chassis Mount | 250 V | SPST-NC | Lever Straight | 10000000 Cycles | 16 A 600 mA | ||
 Omron Electronics Inc-EMC Div | 0.063 in | 1.6 mm | IP40 | -25 °C | 105 ░C | On-Mom | 0.815 in | 20.7 mm | 0.79 mm | 0.031 in | 125 VDC | 0.5 mm | 0.02 in | 50 gf | 200000 Cycles | Quick Connect - 0.187" (4.7mm) | 240 gf | Chassis Mount | 250 V | SPDT | Lever Roller | 10000000 Cycles | 11 A 100 mA | ||
Omron Electronics Inc-EMC Div | IP40 | -25 °C | 105 ░C | On-Mom | 0.6 in | 15.2 mm | 2.5 mm | 0.098 in | 125 VDC | 2 mm | 0.08 in | 8.158 gf | 200000 Cycles | Quick Connect - 0.187" (4.7mm) | 70 gf | Chassis Mount | 250 V | SPDT | Lever Straight | 10000000 Cycles | 11 A 600 mA |
