172064 Series

Manufacturer: Molex

Catalog

5.70MM PITCH, MEGA-FIT RIGHT-ANGLE HEADER, 2 CIRCUITS, 0.38ΜM GOLD (AU) PLATING, UL 94 V-0, GLOW-WIRE CAPABLE, TRAY, BLACK

Part	Number of Positions	Number of Rows [custom]	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Fastening Type	Style	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Termination	Features	Shrouding	Contact Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Insulation Material	Connector Type	Insulation Color	Number of Positions Loaded	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating
Molex 1720640002	2	2	Tin	0.38 µm	15 µin	Copper	Locking Ramp	Board to Cable/Wire	5.7 mm	0.224 in	Square	Solder	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	Male Pin	14.53 mm	0.572 "	0.142 in	3.6 mm	Liquid Crystal Polymer (LCP)	Header	Black	All	UL94 V-0	Right Angle Through Hole	Gold

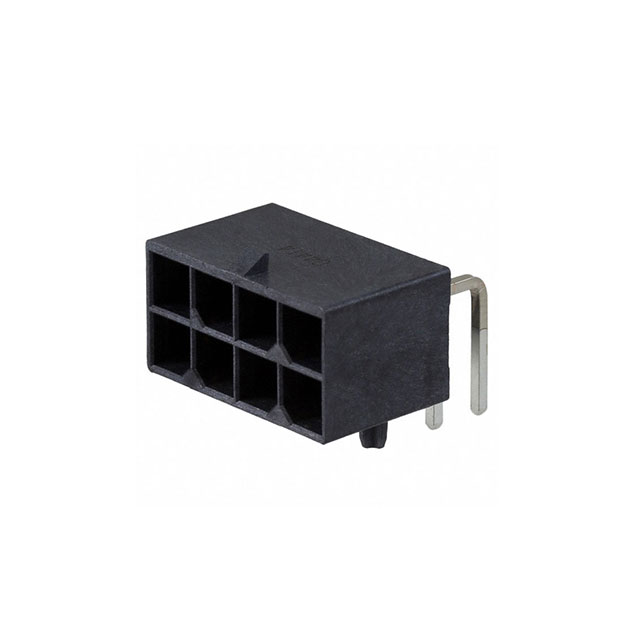

Molex 1720640008	8	2	Tin	0.38 µm	15 µin	Copper	Locking Ramp	Board to Cable/Wire	5.7 mm	0.224 in	Square	Solder	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	Male Pin	14.53 mm	0.572 "	0.142 in	3.6 mm	Liquid Crystal Polymer (LCP)	Header	Black	All	UL94 V-0	Right Angle Through Hole	Gold	Automotive General Purpose Industrial Telecommunications	2.54 µm	100 µin	5.7 mm	0.224 in
Molex 1720641008	8	2	Tin	0.76 Ám	30 Áin	Copper	Locking Ramp	Board to Cable/Wire	5.7 mm	0.224 in	Square	Solder	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	Male Pin	14.53 mm	0.572 "	0.142 in	3.6 mm	Liquid Crystal Polymer (LCP)	Header	Black	All	UL94 V-0	Right Angle Through Hole	Gold	Automotive General Purpose Industrial Telecommunications	2.54 µm	100 µin	5.7 mm	0.224 in
Molex 1720641002	2	2	Tin	0.76 Ám	30 Áin	Copper	Locking Ramp	Board to Cable/Wire	5.7 mm	0.224 in	Square	Solder	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	Male Pin	14.53 mm	0.572 "	0.142 in	3.6 mm	Liquid Crystal Polymer (LCP)	Header	Black	All	UL94 V-0	Right Angle Through Hole	Gold
Molex 1720641012	12	2	Tin	0.76 Ám	30 Áin	Copper	Locking Ramp	Board to Cable/Wire	5.7 mm	0.224 in	Square	Solder	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	Male Pin	14.53 mm	0.572 "	0.142 in	3.6 mm	Liquid Crystal Polymer (LCP)	Header	Black	All	UL94 V-0	Right Angle Through Hole	Gold	Automotive General Purpose Industrial Telecommunications	2.54 µm	100 µin	5.7 mm	0.224 in

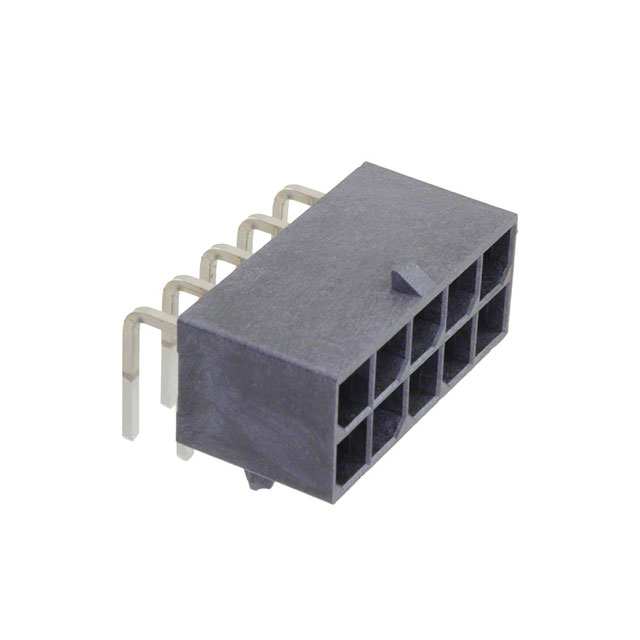

Molex 1720641010	10	2	Tin	0.76 Ám	30 Áin	Copper	Locking Ramp	Board to Cable/Wire	5.7 mm	0.224 in	Square	Solder	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	Male Pin	14.53 mm	0.572 "	0.142 in	3.6 mm	Liquid Crystal Polymer (LCP)	Header	Black	All	UL94 V-0	Right Angle Through Hole	Gold	Automotive General Purpose Industrial Telecommunications	2.54 µm	100 µin	5.7 mm	0.224 in
Molex 1720640012	12	2	Tin	0.38 µm	15 µin	Copper	Locking Ramp	Board to Cable/Wire	5.7 mm	0.224 in	Square	Solder	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	Male Pin	14.53 mm	0.572 "	0.142 in	3.6 mm	Liquid Crystal Polymer (LCP)	Header	Black	All	UL94 V-0	Right Angle Through Hole	Gold				5.7 mm	0.224 in
Molex 1720641912

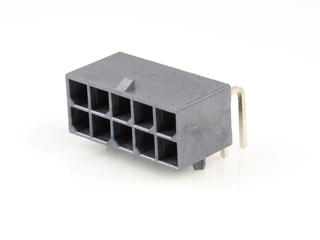

Molex 1720640010	10	2	Tin	0.38 µm	15 µin	Copper	Locking Ramp	Board to Cable/Wire	5.7 mm	0.224 in	Square	Solder	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	Male Pin	14.53 mm	0.572 "	0.142 in	3.6 mm	Liquid Crystal Polymer (LCP)	Header	Black	All	UL94 V-0	Right Angle Through Hole	Gold				5.7 mm	0.224 in
Molex 1720641006	6	2	Tin	0.76 Ám	30 Áin	Copper	Locking Ramp	Board to Cable/Wire	5.7 mm	0.224 in	Square	Solder	Board Guide Glow Wire Compliant	Shrouded - 4 Wall	Male Pin	14.53 mm	0.572 "	0.142 in	3.6 mm	Liquid Crystal Polymer (LCP)	Header	Black	All	UL94 V-0	Right Angle Through Hole	Gold				5.7 mm	0.224 in
