KTPS36 Series

Catalog

AC/DC WALL MOUNT ADAPTER 15V 36W

Part	Applications	Current - Output (Max) [Max]	Voltage - Output	Output Connector	Output Connector [diameter]	Output Connector [x]	Cord Length	Cord Length	Approval Agency	Operating Temperature [Max]	Power (Watts)	Input Type	Input Connector	Form	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Polarization	Region Utilized	Standard Number	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Cord Length	Weight	Weight
Volgen + Furuno KTPS36-150240WA-VI-P1	ITE (Commercial)	2.4 A	15 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in	cUL UL	40 °C	36 W	Fixed Blade	NEMA 1-15P	Wall Mount	Level VI	100 VAC	240 VAC	34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	Positive Center	North America
Volgen + Furuno KTPS36-050500WA-VI-P1	ITE (Commercial)		5 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in	IEC	40 °C	25 W	Fixed Blade	NEMA 1-15P	Wall Mount	Level VI	100 VAC	240 VAC	34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	Positive Center	North America	62368-1	5 A
Volgen + Furuno KTPS36-150240DT-2P-VI-P12	ITE (Commercial)	2.4 A	15 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in	CB CE cUL GS PSE UL	40 °C	36 W	Cord (Sold Separately)	IEC 320-C6	Desktop (Class II)	Level VI	100 VAC	240 VAC		50 mm	33 mm			100 mm	Positive Center	International			1.97 in	1.3 in	3.94 in
Volgen + Furuno KTPS36-0940DT-3P-VI-C-P1	ITE (Commercial)	4 A	9 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in	IEC	40 °C	36 W	Cord (Sold Separately)	IEC 320-C6	Desktop (Class I)	Level VI	100 VAC	240 VAC		53 mm	38 mm			115 mm	Positive Center	International	62368-1		2.09 "	1.5 in	4.53 "
Volgen + Furuno KTPS36-480075MP-VI-P1	ITE (Commercial)	750 mA	48 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	39.4 in		CB CE cUL GS PSE RCM UL	40 °C	36 W	Multi-Blade (Included)	Multi-Blade (Included)	Wall Mount	Level VI	100 VAC	240 VAC		35 mm	66 mm			79 mm	Positive Center	International			1.38 in	2.6 in	3.11 "	1 m
Volgen + Furuno KTPS36-090334DT-2P-VI-P1	ITE (Commercial)	3.34 A	9 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in	IEC	40 °C	30 Watts	Cord (Sold Separately)	IEC 320-C6	Desktop (Class II)	Level VI	100 VAC	240 VAC		50 mm	33 mm			100 mm	Positive Center	International	62368-1		1.97 in	1.3 in	3.94 in
Volgen + Furuno KTPS36-120300MP-VI-P2-NA	ITE (Commercial)	3 A	12 V	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	39.4 in		CB CE cUL GS PSE RCM UL	40 °C	36 W	Fixed Blade Multi-Blade	NEMA 1-15P	Wall Mount	Level VI	100 VAC	240 VAC		35 mm	66 mm			79 mm	Positive Center	International			1.38 in	2.6 in	3.11 "	1 m	0.35 lb	160 g
Volgen + Furuno KTPS36-120300MP-VI-P1	ITE (Commercial)	3 A	12 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	39.4 in		IEC	40 °C	36 W	Multi-Blade (Included)	Multi-Blade (Included)	Wall Mount	Level VI	100 VAC	240 VAC		35 mm	66 mm			79 mm	Positive Center	International	62368-1		1.38 in	2.6 in	3.11 "	1 m
Volgen + Furuno KTPS36-050500MP-VI-P2R	ITE (Commercial)		5 V	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	39.4 in		IEC	40 °C	25 W	Multi-Blade (Included)	Multi-Blade (Included)	Wall Mount	Level VI	100 VAC	240 VAC		35 mm	66 mm			79 mm	Positive Center	International	62368-1	5 A	1.38 in	2.6 in	3.11 "	1 m

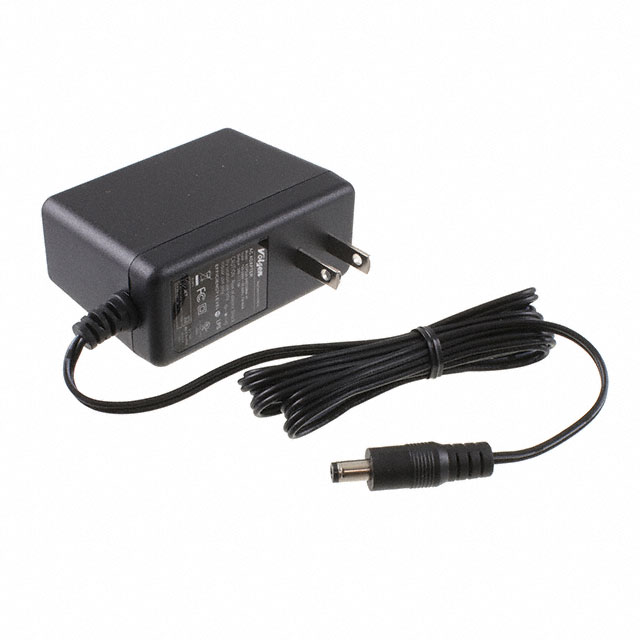

Volgen + Furuno KTPS36-240150WA-VI-P1	ITE (Commercial)	1.5 A	24 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in	cUL UL	40 °C	36 W	Fixed Blade	NEMA 1-15P	Wall Mount	Level VI	100 VAC	240 VAC	34 mm	1.34 "	2.05 "	72 mm	52 mm	2.83 "	Positive Center	North America
