2245C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

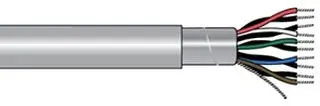

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 5 PAIR, 18 AWG, 0.81 MM², 100 FT, 30.5 M
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Jacket Color | Conductor Material | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Usage | Conductor Insulation | Shield Type | Jacket (Insulation) Material | Voltage | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 0.445 in | 11.3 mm | 10 | Slate | Copper Tinned | 18 AWG | 16 | 30 AWG | Drain Wire | 80 °C | -20 ░C | 100 ft | 30.5 m | 1.143 mm | 0.045 in | Communication Control | Poly-Vinyl Chloride (PVC) | Foil | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Pair |
