T Series Series

Subminiature Toggle Switch Toggle Switches Toggle

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Subminiature Toggle Switch Toggle Switches Toggle

...

Part	Illumination	Features	Bushing Thread	Actuator Type	Current Rating (Amps)	Voltage Rating - AC	Electrical Life	Mounting Type	Switch Function	Circuit	Actuator Material	Actuator Length [x]	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Length
Littelfuse/Commercial Vehicle Products T101SY9AQE	Non-Illuminated	Epoxy Sealed Terminals	Unthreaded	Standard Round	3 A	120 V	60000 Cycles	Through Hole Right Angle	On-On	SPDT	Brass Chrome Plated	9.4 mm	28 V	-30 ░C	85 °C	PC Pin
Littelfuse/Commercial Vehicle Products T101MH9AGE	Non-Illuminated	Epoxy Sealed Terminals	Unthreaded	Standard Round	3 A	120 V	60000 Cycles	Through Hole Right Angle	On-On	SPDT	Brass Chrome Plated	5.44 mm	28 V	-30 ░C	85 °C	PC Pin
Littelfuse/Commercial Vehicle Products T101LH9ABE	Non-Illuminated	Epoxy Sealed Terminals	Unthreaded	Standard Round	0.4 VA	20 V	60000 Cycles	Through Hole Right Angle	On-On	SPDT	Brass Chrome Plated		20 V	-30 ░C	85 °C	PC Pin

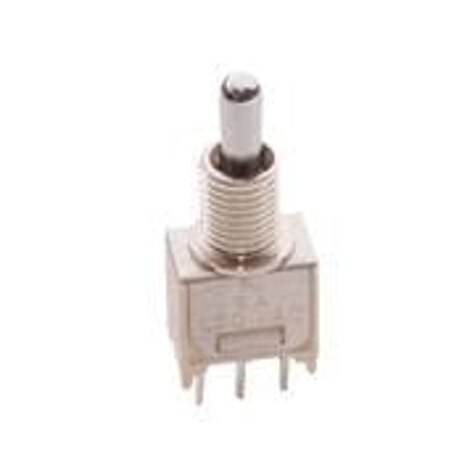

Littelfuse/Commercial Vehicle Products T201S1TABE	Non-Illuminated		1/4-40	Standard Round	0.4 VA	20 V	60000 Cycles	Panel Mount Right Angle	On-On	DPDT	Brass Chrome Plated	10.41 mm	20 V	-30 ░C	85 °C	PC Pin	0.25 in
Littelfuse/Commercial Vehicle Products T211LY9ARE	Non-Illuminated	Jumper needed to achieve triple throw	Unthreaded	Standard Round	2 A	120 V	30000 Cycles	Through Hole Right Angle	On-On-On	SP3T	Brass Chrome Plated		28 V	-30 ░C	85 °C	PC Pin
Littelfuse/Commercial Vehicle Products T203STDCBE	Non-Illuminated	Epoxy Sealed Terminals	1/4-40	Standard Round	0.4 VA	20 V	30000 Cycles		On-Off-On	DPDT	Brass Chrome Plated		20 V	-30 ░C	85 °C	PC Pin	0.25 in	8.38 mm
Littelfuse/Commercial Vehicle Products T207SH9CQE	Non-Illuminated	Epoxy Sealed Terminals	Unthreaded	Standard Round	2 A	120 V	30000 Cycles	Through Hole	On-Off-Mom	DPDT	Brass Chrome Plated	9.4 mm	28 V	-30 ░C	85 °C	PC Pin

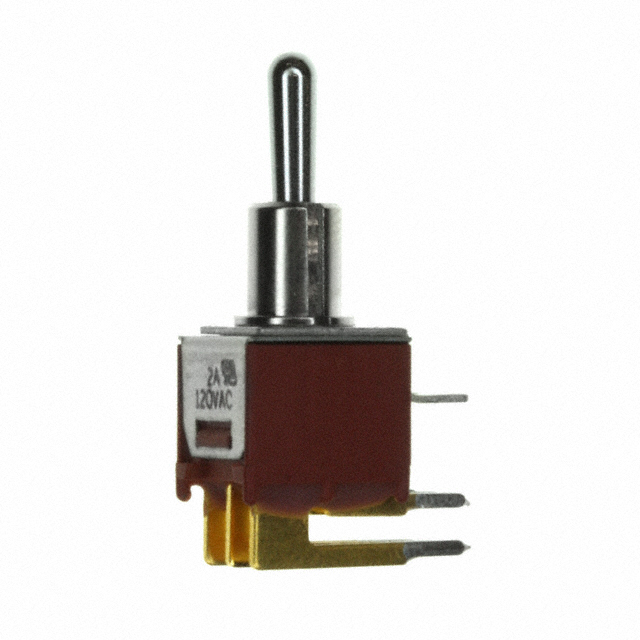

Littelfuse/Commercial Vehicle Products T211LY9ALE	Non-Illuminated	Jumper needed to achieve triple throw	Unthreaded	Standard Round	2 A	120 V	30000 Cycles	Through Hole Right Angle	On-On-On	SP3T	Brass Chrome Plated		28 V	-30 ░C	85 °C	PC Pin

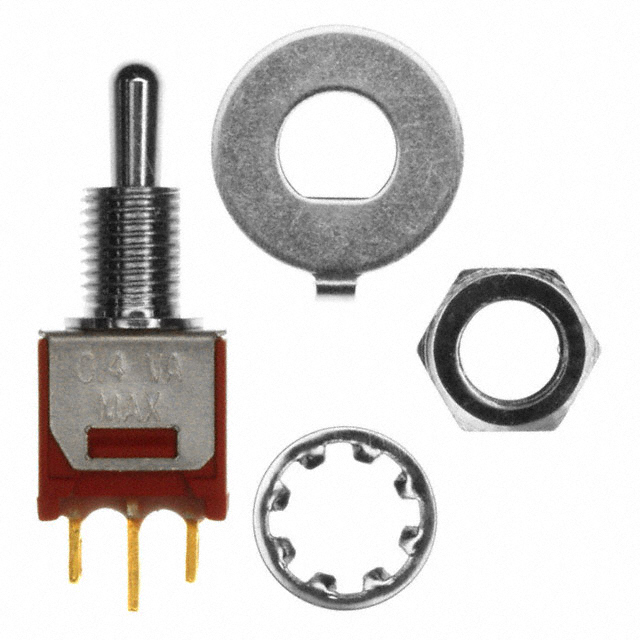

Littelfuse/Commercial Vehicle Products T107MHZBE	Non-Illuminated	Epoxy Sealed Terminals	10-48	Standard Round	0.4 VA	20 V	30000 Cycles		On-Off-Mom	SPDT	Brass Chrome Plated	5.33 mm	20 V	-30 ░C	85 °C	Solder Lug	4.95 mm

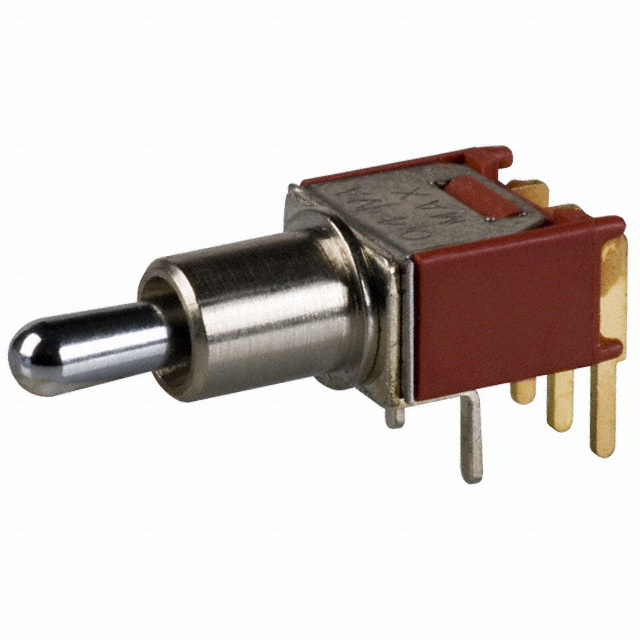

Littelfuse/Commercial Vehicle Products T108MH9ABE	Non-Illuminated	Epoxy Sealed Terminals	Unthreaded	Standard Round	0.4 VA	20 V	30000 Cycles	Through Hole Right Angle	On-Mom	SPDT	Brass Chrome Plated	5.33 mm	20 V	-30 ░C	85 °C	PC Pin

Catalog

Subminiature Toggle Switch Toggle Switches Toggle

Key Features

• Compact size—small footprint

• Single and double pole models

• PC and panel mount options available

Description

The T series subminiature toggle switch from C&K is an RoHS-compliant, compact toggle switch most often used in hand-held communications and medical instrumentation devices. In addition to a small footprint, with the T series, engineers have the option of PC or panel-mounted versions and the choice between single and double pole models to power their product designs.
