TPS3702-Q1 Series

Automotive high-accuracy window voltage detector for overvoltage and undervoltage monitoring

Catalog

Automotive high-accuracy window voltage detector for overvoltage and undervoltage monitoring

Part	Number of Voltages Monitored	Voltage - Threshold	Package / Case	Supplier Device Package	Reset	Type	Mounting Type	Output	Operating Temperature [Min]	Operating Temperature [Max]	Utilized IC / Part	Function	Contents	Primary Attributes	Grade	Qualification
Texas Instruments TPS3702CX50DDCR	1	5 V	SOT-23-6 Thin TSOT-23-6	SOT-23-THIN	Active Low	Voltage Detector	Surface Mount	Open Drain or Open Collector	-40 °C	125 ¯C

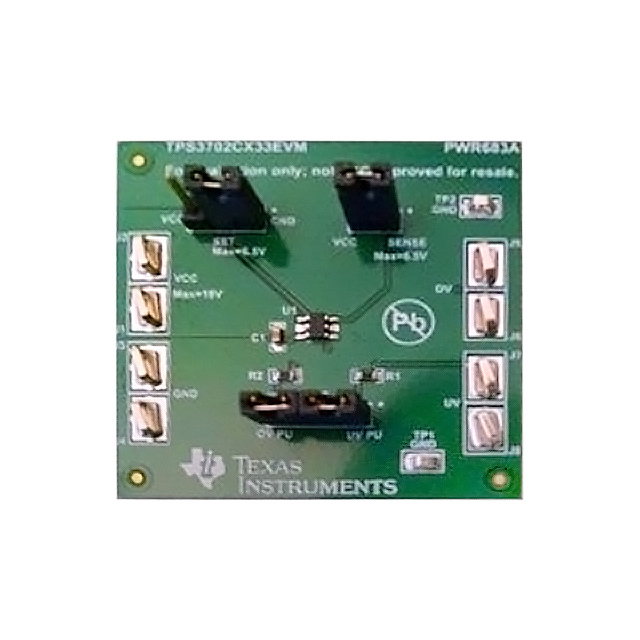

Texas Instruments TPS3702CX33EVM-683						Power Management					TPS3702	Power Supply Supervisor/Tracker/Sequencer	Board(s)	Voltage Detector
Texas Instruments TPS3702CX10DDCR	1	1 V	SOT-23-6 Thin TSOT-23-6	SOT-23-THIN	Active Low	Voltage Detector	Surface Mount	Open Drain or Open Collector	-40 °C	125 ¯C
Texas Instruments TPS3702CX12QDDCRQ1	1	1.2 V	SOT-23-6 Thin TSOT-23-6	SOT-23-THIN	Active Low	Voltage Detector	Surface Mount	Open Drain or Open Collector	-40 °C	125 °C					Automotive	AEC-Q100
Texas Instruments TPS3702CX18DDCR	1	1.8 V	SOT-23-6 Thin TSOT-23-6	SOT-23-THIN	Active Low	Voltage Detector	Surface Mount	Open Drain or Open Collector	-40 °C	125 ¯C
Texas Instruments TPS3702CX33DDCR	1	3.3 V	SOT-23-6 Thin TSOT-23-6	SOT-23-THIN	Active Low	Voltage Detector	Surface Mount	Open Drain or Open Collector	-40 °C	125 ¯C
Texas Instruments TPS3702CX33QDDCRQ1	1	3.3 V	SOT-23-6 Thin TSOT-23-6	SOT-23-THIN	Active Low	Voltage Detector	Surface Mount	Open Drain or Open Collector	-40 °C	125 °C					Automotive	AEC-Q100
Texas Instruments TPS3702AX33DDCT	1	3.3 V	SOT-23-6 Thin TSOT-23-6	SOT-23-THIN	Active Low	Voltage Detector	Surface Mount	Open Drain or Open Collector	-40 °C	125 ¯C
Texas Instruments TPS3702CX18DDCT	1	1.8 V	SOT-23-6 Thin TSOT-23-6	SOT-23-THIN	Active Low	Voltage Detector	Surface Mount	Open Drain or Open Collector	-40 °C	125 ¯C
Texas Instruments TPS3702AX33QDDCRQ1	1	3.3 V	SOT-23-6 Thin TSOT-23-6	SOT-23-THIN	Active Low	Voltage Detector	Surface Mount	Open Drain or Open Collector	-40 °C	125 °C					Automotive	AEC-Q100

Catalog

Automotive high-accuracy window voltage detector for overvoltage and undervoltage monitoring

Key Features

• AEC-Q100 Qualified:Device temperature grade 1: –40°C to 125°C ambient operating temperatureDevice HBM ESD classification level 2Device CDM ESD classification level C4BInput Voltage Range: 2V to 18VHigh threshold accuracy:0.25% (typical)0.9% (–40°C to 125°C)Fixed window thresholds optimized for nominal rails between 1V and 5VOpen-drain outputs for overvoltage and undervoltage indicationInternal glitch immunityThreshold adjust using the SET pinLow quiescent current: 7µA (typical)Internal threshold hysteresis: 0.55%, 1.0%SOT-6 packageAEC-Q100 Qualified:Device temperature grade 1: –40°C to 125°C ambient operating temperatureDevice HBM ESD classification level 2Device CDM ESD classification level C4BInput Voltage Range: 2V to 18VHigh threshold accuracy:0.25% (typical)0.9% (–40°C to 125°C)Fixed window thresholds optimized for nominal rails between 1V and 5VOpen-drain outputs for overvoltage and undervoltage indicationInternal glitch immunityThreshold adjust using the SET pinLow quiescent current: 7µA (typical)Internal threshold hysteresis: 0.55%, 1.0%SOT-6 package

Description

The TPS3702-Q1 is an integrated overvoltage and undervoltage window voltage detector in a small SOT-6 package. This highly accurate voltage detector is an excellent choice for systems that operate on low-voltage supply rails and have narrow margin supply tolerances. Low threshold hysteresis options of 0.55% and 1.0% prevent false reset signals when the monitored voltage supply is in the normal range of operation. Internal glitch immunity and noise filters further eliminate false resets resulting from erroneous signals. The TPS3702-Q1 does not require any external resistors for setting overvoltage and undervoltage reset thresholds, which further increases overall accuracy and reduces solution size and cost. The SET pin is used to select between the two available threshold voltages designed into each device. A separate SENSE input pin and VDD pin allow for the redundancy sought by safety-critical and high-reliability systems. This device also features independent reset outputs for the OV and UV pins; as a result of the open-drain configuration, UV and OV can be tied together. This device has a low typical quiescent current specification of 7µA . The TPS3702-Q1 is designed for automotive applications and is qualified for AEC-Q100 Grade 1. The TPS3702-Q1 is an integrated overvoltage and undervoltage window voltage detector in a small SOT-6 package. This highly accurate voltage detector is an excellent choice for systems that operate on low-voltage supply rails and have narrow margin supply tolerances. Low threshold hysteresis options of 0.55% and 1.0% prevent false reset signals when the monitored voltage supply is in the normal range of operation. Internal glitch immunity and noise filters further eliminate false resets resulting from erroneous signals. The TPS3702-Q1 does not require any external resistors for setting overvoltage and undervoltage reset thresholds, which further increases overall accuracy and reduces solution size and cost. The SET pin is used to select between the two available threshold voltages designed into each device. A separate SENSE input pin and VDD pin allow for the redundancy sought by safety-critical and high-reliability systems. This device also features independent reset outputs for the OV and UV pins; as a result of the open-drain configuration, UV and OV can be tied together. This device has a low typical quiescent current specification of 7µA . The TPS3702-Q1 is designed for automotive applications and is qualified for AEC-Q100 Grade 1.
