726-034 Series
Manufacturer: EDAC Inc.
Beta
⌘K

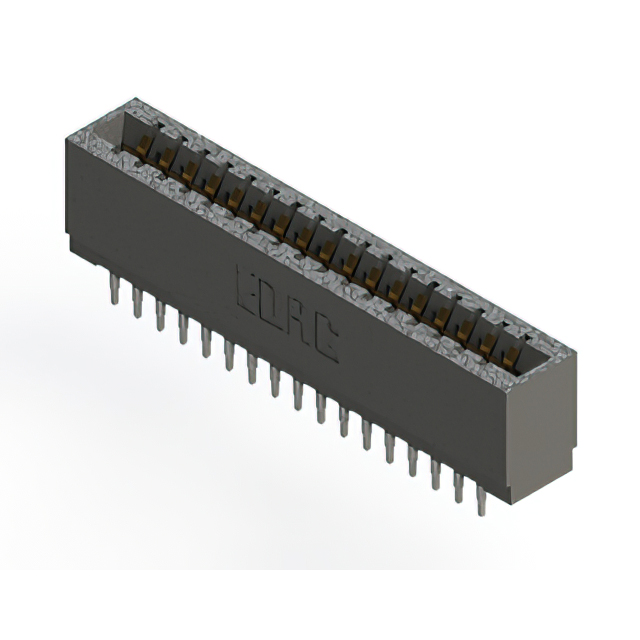

CONN EDGE DUAL FMALE 34POS 0.125
| Part | Termination Rows [custom] | Material - Insulation | Card Type | Gender | Number of Rows [custom] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish | Number of Positions [custom] | Pitch | Pitch | Contact Material | Contact Type | Termination | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Card Thickness [Max] | Card Thickness [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 2 | Through Hole | -40 C | 105 ░C | Black | Gold | 34 | 3.18 mm | 0.125 in | Copper Alloy | Cantilever | Press-Fit | Dual | 30 Áin | 0.76 Ám | 17 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 2 | Through Hole | -40 C | 105 ░C | Black | Gold | 34 | 3.18 mm | 0.125 in | Copper Alloy | Cantilever | Press-Fit | Dual | 30 Áin | 0.76 Ám | 17 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
