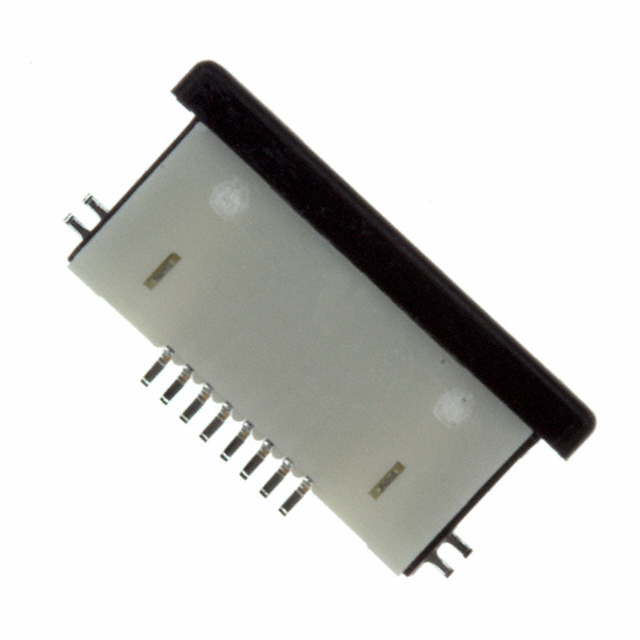

08FLZ-RS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN FFC BOTTOM 8POS 0.5MM R/A
| Part | Housing Color | Actuator Color | Current Rating (Amps) | Voltage Rating | Number of Positions | Contact Material | Contact Finish | Termination | Cable End Type | Material Flammability Rating | Flat Flex Type | Housing Material | Connector/Contact Type | Locking Feature | FFC, FCB Thickness | Pitch | Pitch | Actuator Material | Features | Height Above Board | Height Above Board | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | Black | 0.5 A | 50 V | 8 | Phosphor Bronze | Tin | Solder | Tapered | UL94 V-0 | FFC FPC | Nylon 6T Polyamide (PA6T) | Contacts Bottom | Slide Lock | 0.3 mm | 0.02 " | 0.5 mm | Polyamide (PA6T) Nylon 6T | Solder Retention Zero Insertion Force (ZIF) | 2 mm | 0.079 in | 85 °C | -25 °C | Right Angle Surface Mount |
