55102 Series

Catalog

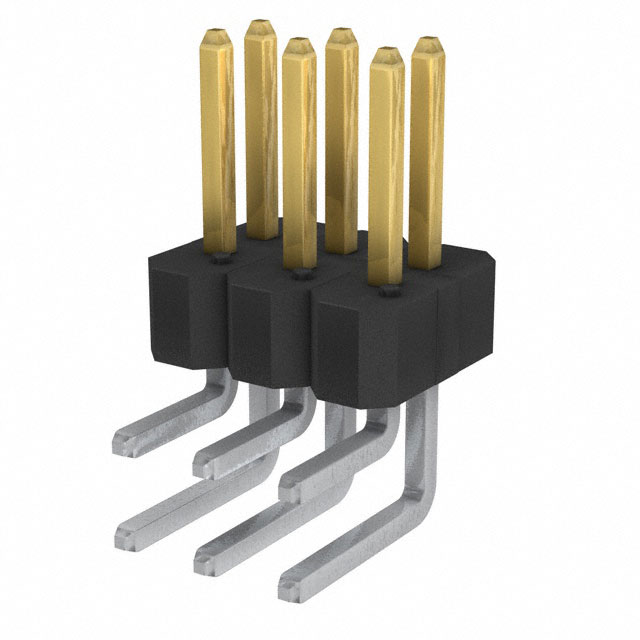

CONN HEADER R/A 6POS 2.54MM

Part	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Material Flammability Rating	Connector Type	Contact Finish - Post	Shrouding	Number of Positions	Mounting Type	Contact Type	Number of Positions Loaded	Termination	Contact Shape	Contact Finish - Mating	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating [x]
Amphenol ICC (FCI) 55102-G1103LF	3 A	0.1 in	2.54 mm	0.09 "	2.29 mm	2	Phosphor Bronze	2.54 mm	0.1 in	0.24 in	6.1 mm	125 °C	-65 ░C	30 Áin	0.76 Ám	0.23 in	5.84 mm	2.54 µm	100 µin	Black	UL94 V-0	Header	Tin	Unshrouded	6	Through Hole Right Angle	Male Pin	All	Solder	Square	Gold or Gold GXT™	Push-Pull
Amphenol ICC (FCI) 55102-T1713LF	3 A	0.1 in	2.54 mm			2	Phosphor Bronze	2.54 mm	0.1 in	0.24 in	6.1 mm	125 °C	-65 ░C	100 çin	2.54 çm	0.23 in	5.84 mm	2.54 µm	100 µin	Black	UL94 V-0	Header	Tin	Unshrouded	26	Through Hole Right Angle	Male Pin	All	Solder	Square		Push-Pull	0.12 in	3.05 mm

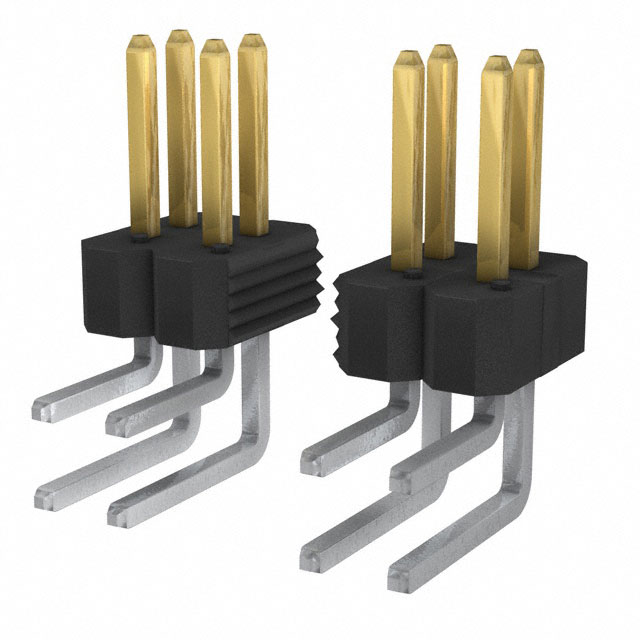

Amphenol ICC (FCI) 55102-G17-36		0.1 in	2.54 mm			2	Phosphor Bronze	2.54 mm	0.1 in	0.24 in	6.1 mm			30 Áin	0.76 Ám	0.23 in	5.84 mm	2.54 µm	100 µin	Black	UL94 V-0	Header	Tin	Unshrouded	36	Through Hole Right Angle	Male Pin	All	Solder	Square	Gold GXT™	Push-Pull	0.12 in	3.05 mm
Amphenol ICC (FCI) 55102-G1705LF	3 A	0.1 in	2.54 mm			2	Phosphor Bronze	2.54 mm	0.1 in	0.24 in	6.1 mm	125 °C	-65 ░C	30 Áin	0.76 Ám	0.23 in	5.84 mm	2.54 µm	100 µin	Black	UL94 V-0	Header	Tin	Unshrouded		Through Hole Right Angle	Male Pin	All	Solder	Square	Gold GXT™	Push-Pull	0.12 in	3.05 mm
Amphenol ICC (FCI) 55102-94003RLF	3 A	0.1 in	2.54 mm	0.09 "	2.29 mm	2	Phosphor Bronze	2.54 mm	0.1 in	0.24 in	6.1 mm	125 °C	-65 ░C		0.025 µm		14.2 mm	0.025 µm	1 µin	Black	UL94 V-0	Breakaway Header	Gold	Unshrouded	6	Through Hole Right Angle	Male Pin	All	Solder	Square	Gold	Push-Pull			Thermoplastic	1 µin	0.559 in
Amphenol ICC (FCI) 55102-G1706LF	3 A	0.1 in	2.54 mm			2	Phosphor Bronze	2.54 mm	0.1 in	0.24 in	6.1 mm	125 °C	-65 ░C	30 Áin	0.76 Ám	0.23 in	5.84 mm	2.54 µm	100 µin	Black	UL94 V-0	Header	Tin	Unshrouded	12	Through Hole Right Angle	Male Pin	All	Solder	Square	Gold or Gold GXT™	Push-Pull	0.12 in	3.05 mm
Amphenol ICC (FCI) 55102-G17-05		0.1 in	2.54 mm			2	Phosphor Bronze	2.54 mm	0.1 in	0.24 in	6.1 mm			30 Áin	0.76 Ám	0.23 in	5.84 mm	2.54 µm	100 µin	Black	UL94 V-0	Header	Tin	Unshrouded	10	Through Hole Right Angle	Male Pin	All	Solder	Square	Gold GXT™	Push-Pull	0.12 in	3.05 mm
Amphenol ICC (FCI) 55102-S3402LF	3 A	0.1 in	2.54 mm	0.1 in	2.54 mm	2	Phosphor Bronze	2.54 mm	0.1 in	0.24 in	6.1 mm	125 °C	-65 ░C	15 µin	0.38 µm	0.318 "		2.54 µm	100 µin	Black	UL94 V-0	Breakaway Header	Tin	Unshrouded	6	Through Hole Right Angle	Male Pin	All	Solder	Square	Gold or Gold GXT™	Push-Pull			Thermoplastic			8.08 mm
Amphenol ICC (FCI) 55102-T17-36		0.1 in	2.54 mm			2	Phosphor Bronze	2.54 mm	0.1 in	0.24 in	6.1 mm			100 çin	2.54 çm	0.23 in	5.84 mm	2.54 µm	100 µin	Black	UL94 V-0	Header	Tin	Unshrouded	36	Through Hole Right Angle	Male Pin	All	Solder	Square		Push-Pull	0.12 in	3.05 mm

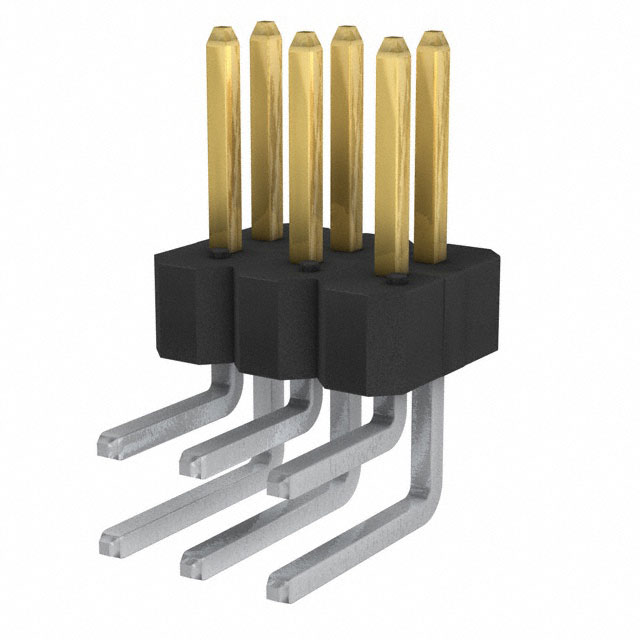

Amphenol ICC (FCI) 55102-G17-03		0.1 in	2.54 mm			2	Phosphor Bronze	2.54 mm	0.1 in	0.24 in	6.1 mm			30 Áin	0.76 Ám	0.23 in	5.84 mm	2.54 µm	100 µin	Black	UL94 V-0	Header	Tin	Unshrouded	6	Through Hole Right Angle	Male Pin	All	Solder	Square	Gold or Gold GXT™	Push-Pull	0.12 in	3.05 mm
