R12560 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

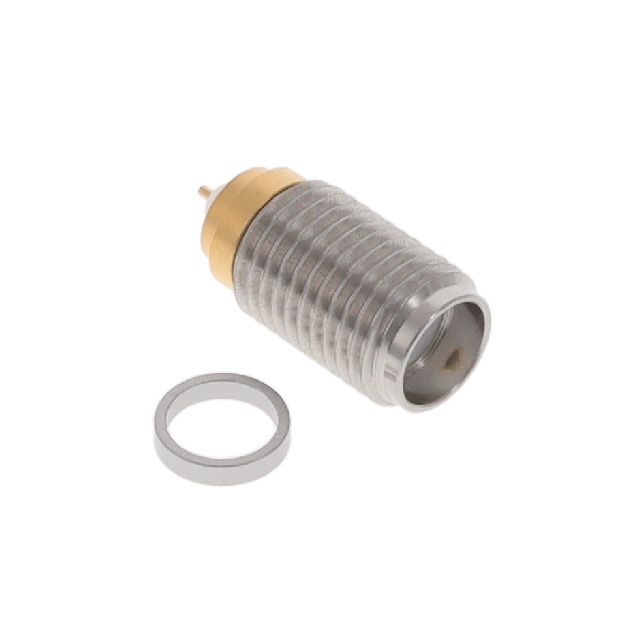

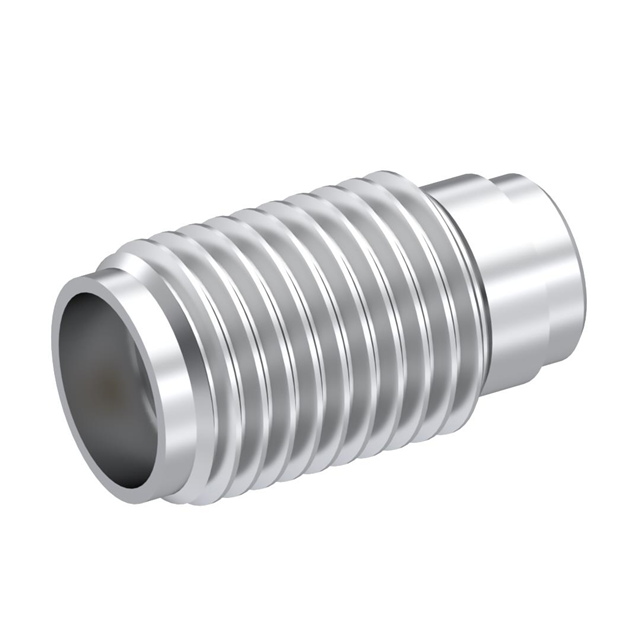

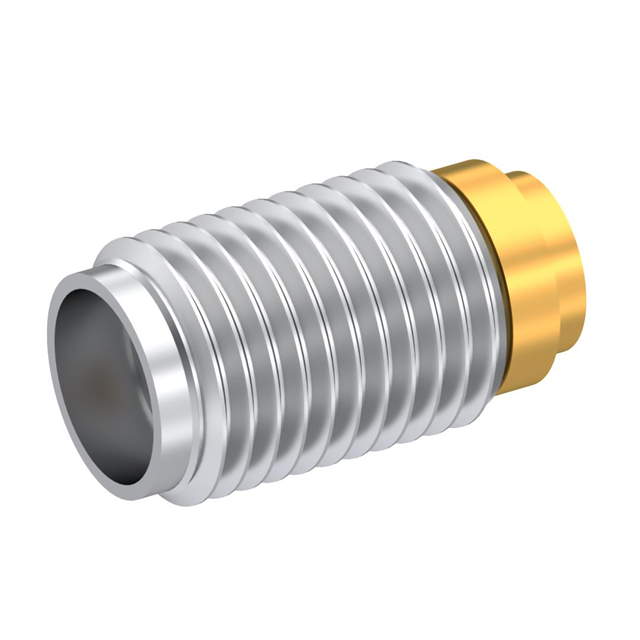

SMA / THREAD-IN JACK RECEPTACLE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Mating Cycles | Dielectric Material | Mounting Type | Connector Style | Fastening Type | Center Contact Material | Number of Ports | Connector Type | Contact Termination | Housing Color | Frequency - Max [Max] | Impedance | Shield Termination | Voltage Rating | Features | Body Finish | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -55 C | 150 °C | Gold | Stainless Steel | 500 | Polytetrafluoroethylene (PTFE) | Panel Mount Threaded | SMA | Threaded | Beryllium Copper | 1 | Female Socket Jack | Solder | Silver | 18 GHz | 50 Ohms | Solder | ||||
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Stainless Steel | 500 | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | SMA | Threaded | Beryllium Copper | 1 | Receptacle Female Socket | Solder | Silver | 26.5 GHz | 50 Ohms | Screw | 500 V | Extended Insulation | ||
 Radiall USA, Inc. | -40 C | 100 °C | Gold | Beryllium Copper | 500 | Polytetrafluoroethylene (PTFE) | Panel Mount | SMA | Threaded | Beryllium Copper | 1 | Female Socket Jack | Solder Eyelet | Gold | 18 GHz | 50 Ohms | Solder | 500 V | Gold | Bulkhead - Front Side Nut | |
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Stainless Steel | 500 | Polytetrafluoroethylene (PTFE) | Panel Mount Threaded | SMA | Threaded | Beryllium Copper | 1 | Female Socket Jack | Solder | Silver | 26.5 GHz | 50 Ohms | Solder | 500 V |
