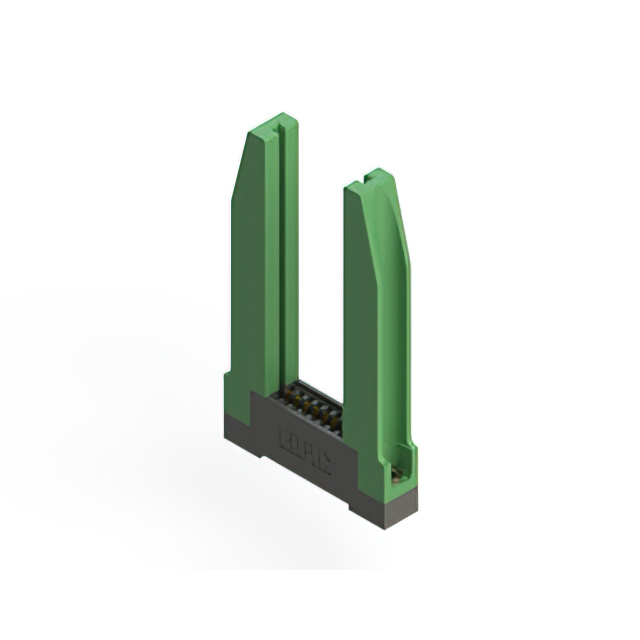

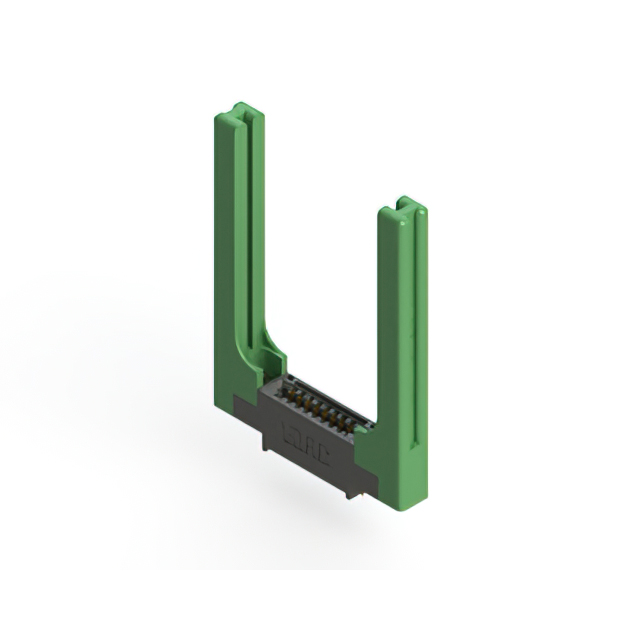

395-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 9POS 0.100
| Part | Material - Insulation | Termination Rows | Gender | Contact Finish Thickness | Contact Finish Thickness | Features | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Contact Finish | Color | Mounting Type | Flange Feature | Card Type | Termination | Read Out | Number of Positions/Bay/Row | Pitch | Pitch | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.25 Ám | 10 Áin | Card Guides | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Black | Through Hole | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Solder | Single | 9 | 0.1 " | 2.54 mm | 9 | -40 C | 105 ░C | Copper Alloy | 1 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Black | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Wire Wrap | Single | 9 | 0.1 " | 2.54 mm | 9 | -40 C | 105 ░C | Copper Alloy | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.25 Ám | 10 Áin | Card Guides | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Black | Right Angle Through Hole | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Solder | Single | 9 | 0.1 " | 2.54 mm | 9 | -40 C | 105 ░C | Copper Alloy | 1 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Black | Through Hole | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | Solder | Single | 9 | 0.1 " | 2.54 mm | 9 | -40 C | 105 ░C | Copper Alloy | 1 | 3.25 mm | 0.128 " | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Black | Through Hole | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Wire Wrap | Single | 9 | 0.1 " | 2.54 mm | 9 | -40 C | 105 ░C | Copper Alloy | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Black | Through Hole | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Wire Wrap | Single | 9 | 0.1 " | 2.54 mm | 9 | -40 C | 105 ░C | Copper Alloy | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Black | Through Hole | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Solder | Single | 9 | 0.1 " | 2.54 mm | 9 | -40 C | 105 ░C | Copper Alloy | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.25 Ám | 10 Áin | Card Guides | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Black | Through Hole | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Solder | Single | 9 | 0.1 " | 2.54 mm | 9 | -40 C | 105 ░C | Copper Alloy | 1 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Black | Through Hole | Non Specified - Single Edge | Wire Wrap | Single | 9 | 0.1 " | 2.54 mm | 9 | -40 C | 105 ░C | Copper Alloy | 1 | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | 0.25 Ám | 10 Áin | Card Guides | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Gold | Black | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Solder | Single | 9 | 0.1 " | 2.54 mm | 9 | -40 C | 105 ░C | Copper Alloy | 1 |
