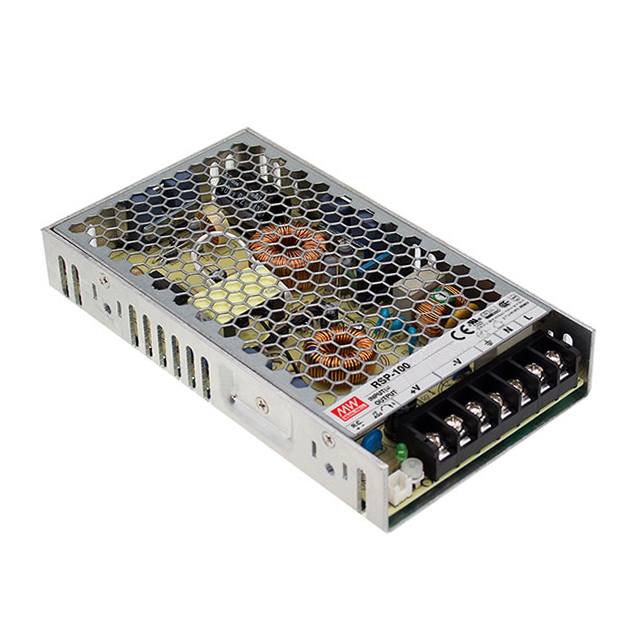

RSP-100 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 13.5V 101W
| Part | Minimum Load Required | Approval Agency | Mounting Type | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Features | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Number of Outputs | Type | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Applications | Voltage - Isolation | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | CB CCC CE cURus TUV | Chassis Mount | 86.5 % | -30 °C | 70 °C | Adjustable Output PFC Remote On/Off Universal Input | 85 VAC 120 VDC | 264 VAC 370 VDC | 101 W | 1 | Enclosed | 13.5 V | 1.18 in | 30 mm | 99 mm | 3.9 " | 7.05 " | 179 mm | ITE (Commercial) | 4000 V | ||
MEAN WELL USA Inc. | CB CCC CE cURus TUV | Chassis Mount | 88 % | -30 °C | 70 °C | Adjustable Output PFC Remote On/Off Universal Input | 85 VAC 120 VDC | 264 VAC 370 VDC | 101 W | 1 | Enclosed | 48 V | 1.18 in | 30 mm | 99 mm | 3.9 " | 7.05 " | 179 mm | ITE (Commercial) | 4000 V | 2.1 A |
