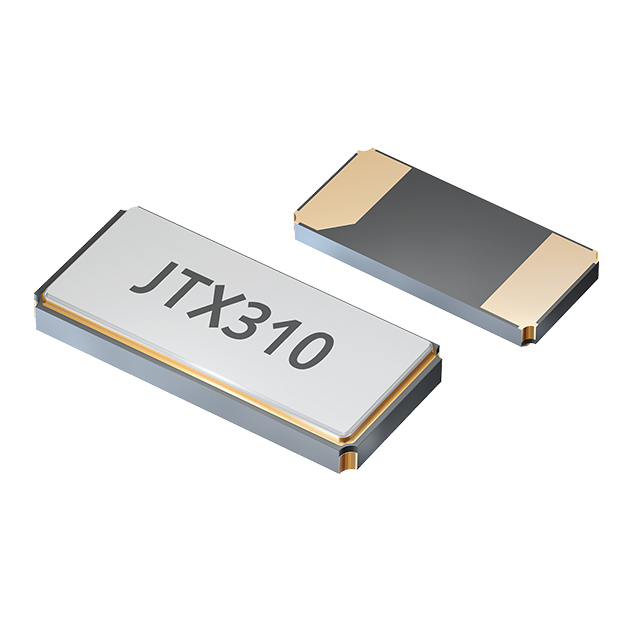

JTX310 Series

Catalog

CRYSTAL 32.7680KHZ 12.5PF SMD

Part	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Frequency Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Operating Mode	Load Capacitance	Package / Case	Frequency
Jauch Quartz Q 0,032768-JTX310-12,5-20-T1-HMR-LF	kHz Crystal (Tuning Fork)	1.5 mm	3.2 mm	0.126 in	0.059 "	AEC-Q200	20 ppm	0.035 in	0.9 mm	Surface Mount	85 °C	-40 C	70 kOhms	Fundamental	12.5 pF	2-SMD No Lead	0.032768 MHz
Jauch Quartz Q 0,032768-JTX310-6-10-T2-HMR-LF	kHz Crystal (Tuning Fork)	1.5 mm	3.2 mm	0.126 in	0.059 "	AEC-Q200	10 ppm	0.035 in	0.9 mm	Surface Mount	105 ░C	-40 C	80 kOhms	Fundamental	6 pF	2-SMD No Lead	0.032768 MHz
Jauch Quartz Q 0,032768-JTX310-12,5-10-T3-HMR-LF	kHz Crystal (Tuning Fork)	1.5 mm	3.2 mm	0.126 in	0.059 "	AEC-Q200	10 ppm	0.035 in	0.9 mm	Surface Mount	125 °C	-40 C	80 kOhms	Fundamental	12.5 pF	2-SMD No Lead	0.032768 MHz
Jauch Quartz Q 0,032768-JTX310-9-10-T1-HMR-60K-LF	kHz Crystal (Tuning Fork)	1.5 mm	3.2 mm	0.126 in	0.059 "	AEC-Q200	10 ppm	0.035 in	0.9 mm	Surface Mount	85 °C	-40 C	70 kOhms	Fundamental	9 pF	2-SMD No Lead	0.032768 MHz
Jauch Quartz Q 0,032768-JTX310-6-20-T1-HMR-70K-LF	kHz Crystal (Tuning Fork)	1.5 mm	3.2 mm	0.126 in	0.059 "	AEC-Q200	20 ppm	0.035 in	0.9 mm	Surface Mount	85 °C	-40 C	70 kOhms	Fundamental	6 pF	2-SMD No Lead	0.032768 MHz
Jauch Quartz Q 0,032768-JTX310-12,5-10-T2-HMR-70K-LF	kHz Crystal (Tuning Fork)	1.5 mm	3.2 mm	0.126 in	0.059 "	AEC-Q200	10 ppm	0.035 in	0.9 mm	Surface Mount	105 ░C	-40 C	70 kOhms	Fundamental	12.5 pF	2-SMD No Lead	0.032768 MHz
Jauch Quartz Q 0,032768-JTX310-12,5-10-T2-HMR-LF	kHz Crystal (Tuning Fork)	1.5 mm	3.2 mm	0.126 in	0.059 "	AEC-Q200	10 ppm	0.035 in	0.9 mm	Surface Mount	105 ░C	-40 C	80 kOhms	Fundamental	12.5 pF	2-SMD No Lead	0.032768 MHz
Jauch Quartz Q 0,032768-JTX310-7-20-T3-HMR-LF	kHz Crystal (Tuning Fork)	1.5 mm	3.2 mm	0.126 in	0.059 "	AEC-Q200	20 ppm	0.035 in	0.9 mm	Surface Mount	125 °C	-40 C	80 kOhms	Fundamental	7 pF	2-SMD No Lead	0.032768 MHz
Jauch Quartz Q 0,032768-JTX310-12,5-10-T3-HMR-70K-LF	kHz Crystal (Tuning Fork)	1.5 mm	3.2 mm	0.126 in	0.059 "	AEC-Q200	10 ppm	0.035 in	0.9 mm	Surface Mount	125 °C	-40 C	70 kOhms	Fundamental	12.5 pF	2-SMD No Lead	0.032768 MHz
Jauch Quartz Q 0,032768-JTX310-6-10-T3-HMR-LF	kHz Crystal (Tuning Fork)	1.5 mm	3.2 mm	0.126 in	0.059 "	AEC-Q200	10 ppm	0.035 in	0.9 mm	Surface Mount	125 °C	-40 C	80 kOhms	Fundamental	6 pF	2-SMD No Lead	0.032768 MHz
