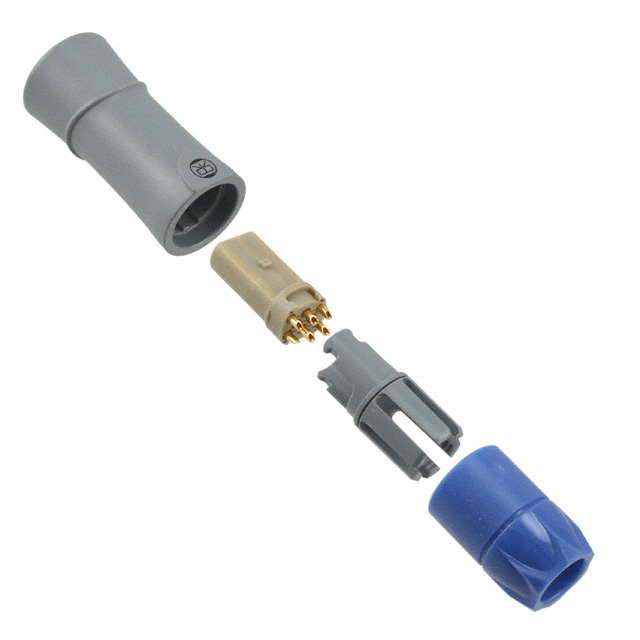

XRN.M08 Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 8P GOLD SLDR CUP

Part	Connector Type	Shell Material	Primary Material	Color	Insert Material	Shielding	Applications	Orientation	Mounting Type	Current Rating (Amps)	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Fastening Type	Backshell Material, Plating	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shell Size - Insert	Ingress Protection	Contact Finish - Mating
LEMO XRN.M08.GLL.6GZ	Receptacle Female Sockets	Sulfone	Plastic	Gray	Polyetheretherketone (PEEK)	Unshielded	Industrial Medical Testing Equipment & Measurement	N (Normal)	Free Hanging (In-Line)	5 A	6.5 mm	0.209 in	0.256 in	5.3 mm	Push-Pull	Sulfone	Backshell	170 °C	-50 °C	8	M08	IP50 - Dust Protected	Gold
LEMO XRN.M08.GLL.6A	Receptacle Female Sockets	Sulfone	Plastic	Blue Gray	Polyetheretherketone (PEEK)	Unshielded	Industrial Medical Testing Equipment & Measurement	N (Normal)	Free Hanging (In-Line)	5 A	6.5 mm	0.209 in	0.256 in	5.3 mm	Push-Pull	Sulfone	Backshell	170 °C	-50 °C	8	M08	IP50 - Dust Protected	Gold
LEMO XRN.M08.GLL.6G	Receptacle Female Sockets	Sulfone	Plastic	Gray	Polyetheretherketone (PEEK)	Unshielded	Industrial Medical Testing Equipment & Measurement	N (Normal)	Free Hanging (In-Line)	5 A	6.5 mm	0.209 in	0.256 in	5.3 mm	Push-Pull	Sulfone	Backshell	170 °C	-50 °C	8	M08	IP50 - Dust Protected	Gold
