BFB0612 Series

Catalog

FAN BLOWER 60X25MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)	Material - Frame	Power (Watts)	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Fan Type	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]	Noise	Approval Agency	Air Flow	Air Flow	RPM	Width [y]	Bearing Type	Voltage - Rated	Weight	Weight	Features

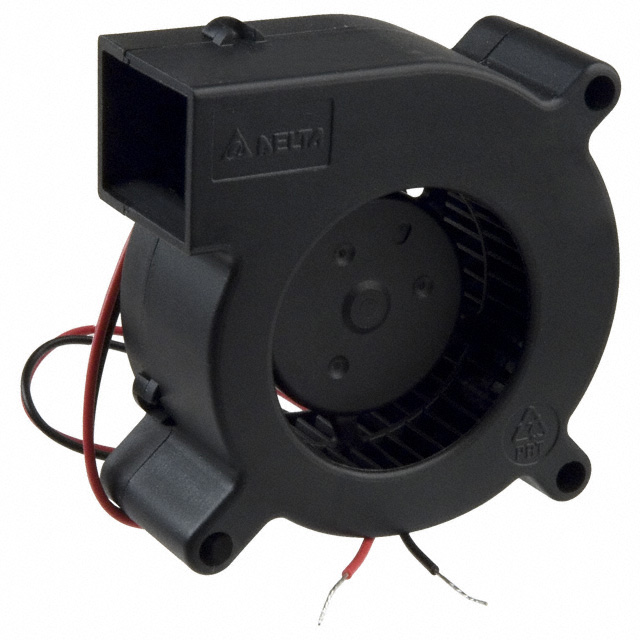

Delta Electronics BFB0612H	5 VDC	13.8 VDC	Plastic	40 °C 50000 Hrs	0.18 A	Plastic	2.16 W	60 mm	Square/Rounded	60 mm	2 Wire Leads	90 °C	-10 °C	Blower	106.6 Pa	0.428 in H2O	51.26 g	0.113 lb	30 dB	CE CSA UL VDE	6.7 CFM	0.188 mł/min	3200 RPM	25 mm	Ball	12 VDC
Delta Electronics BFB0612HB-F00	5.5 VDC	13.8 VDC	Plastic		0.18 A	Plastic	2.16 W	60 mm	Square/Rounded	60 mm	3 Wire Leads			Blower	162.2 Pa	0.651 in H2O			37 dB	CE CSA UL VDE	4.7 CFM	0.132 mł/min	4800 RPM	15.4 mm	Ball	12 VDC	45.81 g	0.101 lb	Speed Sensor (Tach)

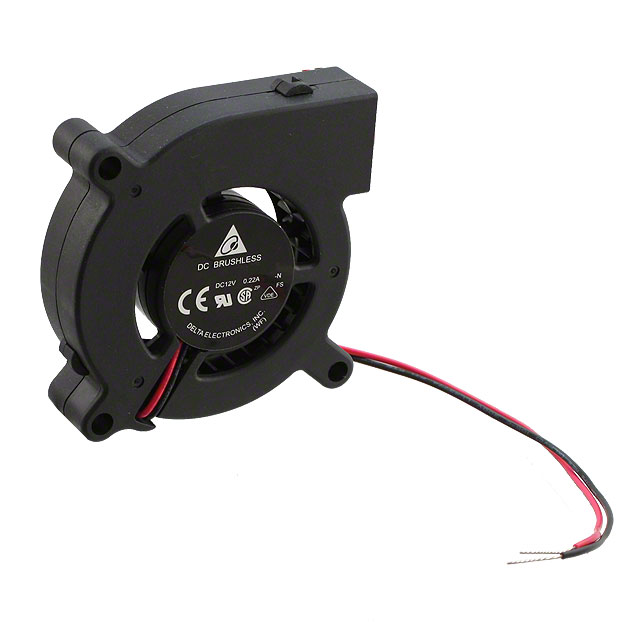

Delta Electronics BFB0612HB-N	7 V	13.8 VDC	Plastic	40 °C 50000 Hrs	0.18 A	Plastic	2.16 W	60 mm	Square/Rounded	60 mm	2 Wire Leads	90 °C	-10 °C	Blower	162.2 Pa	0.651 in H2O			37 dB	CE CSA UL VDE	4.7 CFM	0.132 mł/min	4800 RPM	15.4 mm	Ball	12 VDC	45.81 g	0.101 lb
