FR01AR10 Series

Catalog

ROTARY SWITCH, 10 POSITION, 1 POLE

Part	Electrical Life	Length	Length	Mechanical Life	Body Material	Contact Finish	Actuator Type	Contact Material	Circuit	Actuator Level	Current Rating (Amps)	Voltage Rating	Termination Style	Pitch	Pitch	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Mounting Type	Height Above Board	Height Above Board
NKK Switches FR01AR10PB	10000 Cycles	0.516 in	13.11 mm	10000 Steps	Polyamide (PA) Nylon Glass Filled	Gold	Rotary with Shaft	Copper Alloy	BCD	Raised	100 mA	5 V	PC Pin	2.54 mm	0.1 "	10	85 °C	-25 °C	28.05 mm	1.104 in	Panel Mount

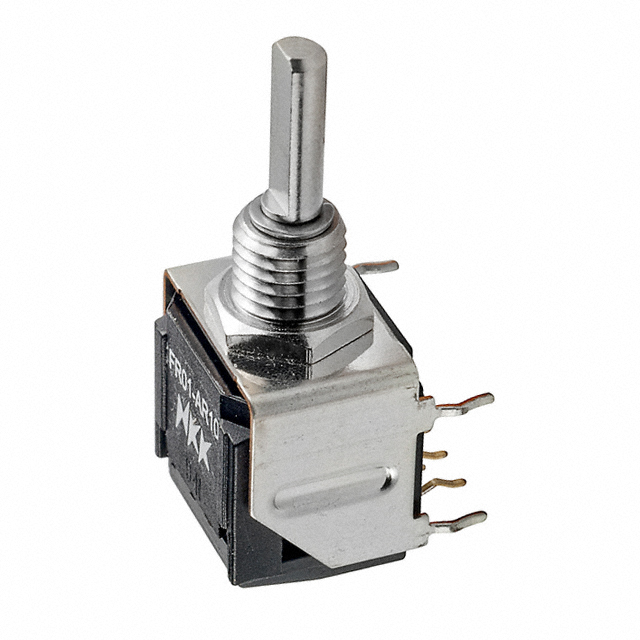

NKK Switches FR01AR10HB-S	10000 Cycles	0.516 in	13.11 mm	10000 Steps	Polyamide (PA) Nylon Glass Filled	Gold	Rotary with Shaft	Copper Alloy	BCD	Raised	100 mA	5 V	PC Pin	2.54 mm	0.1 "	10	85 °C	-25 °C			Panel Mount Right Angle	0.433 in	11 mm
NKK Switches FR01AR10PB-W-S	10000 Cycles	0.516 in	13.11 mm	10000 Steps	Polyamide (PA) Nylon Glass Filled	Gold	Rotary with Shaft	Copper Alloy	BCD	Raised	100 mA	5 V	PC Pin	2.54 mm	0.1 "	10	85 °C	-25 °C	28.05 mm	1.104 in	Panel Mount
