M80-707 Series

Catalog

HEADER CONNECTOR,PCB MOUNT,PLUG,63 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,HOLE .164-.189 ROHS COMPLIANT: NO

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Mounting Type	Number of Positions	Contact Type	Insulation Height	Insulation Height	Contact Finish - Post	Connector Type	Insulation Color	Number of Positions Loaded	Termination	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Rows [custom]	Features
Harwin Inc. M80-7076301	Circular	Beryllium Copper	157.5 Áin	4 Ám	Glass Filled Nylon 4/6 Polyamide (PA46)	0.079 "	2 mm	-55 C	125 °C	UL94 V-0	Through Hole	63	Female Socket	6.28 mm	0.247 "	Tin-Lead	Receptacle	Black	All	Solder	2 mm	0.079 in	0.118 in	3 mm	Gold	12 Áin	0.3 Ám	Board to Board Cable	3	Mating Flange
Harwin Inc. M80-7075105	Circular	Beryllium Copper	12 µin	0.3 µm	Glass Filled Nylon 4/6 Polyamide (PA46)	0.079 "	2 mm	-55 C	125 °C	UL94 V-0	Through Hole	51	Female Socket	6.28 mm	0.247 "	Gold	Receptacle	Black	All	Solder	2 mm	0.079 in	0.118 in	3 mm	Gold	12 Áin	0.3 Ám	Board to Board Cable	3	Mating Flange

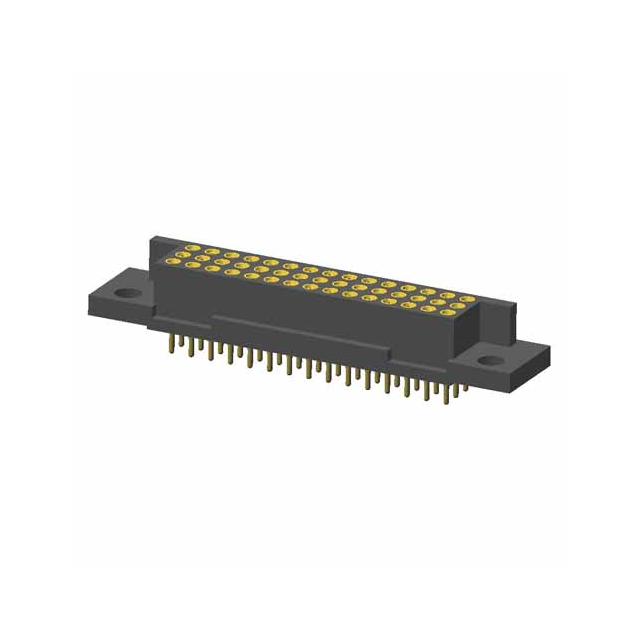

Harwin Inc. M80-7072705	Circular	Beryllium Copper	12 µin	0.3 µm	Glass Filled Nylon 4/6 Polyamide (PA46)	0.079 "	2 mm	-55 C	125 °C	UL94 V-0	Through Hole	27	Female Socket	6.28 mm	0.247 "	Gold	Receptacle	Black	All	Solder	2 mm	0.079 in	0.118 in	3 mm	Gold	12 Áin	0.3 Ám	Board to Board Cable	3	Mating Flange

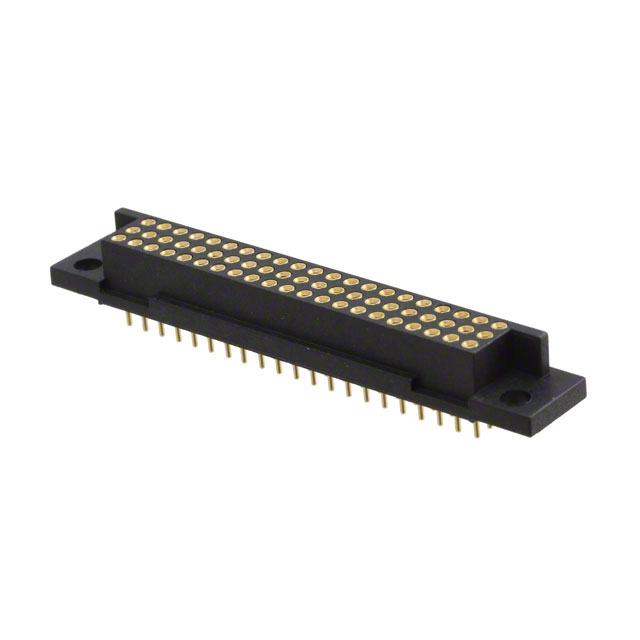

Harwin Inc. M80-7076305	Circular	Beryllium Copper	12 µin	0.3 µm	Glass Filled Nylon 4/6 Polyamide (PA46)	0.079 "	2 mm	-55 C	125 °C	UL94 V-0	Through Hole	63	Female Socket	6.28 mm	0.247 "	Gold	Receptacle	Black	All	Solder	2 mm	0.079 in	0.118 in	3 mm	Gold	12 Áin	0.3 Ám	Board to Board Cable	3	Mating Flange
