8404 Series
Manufacturer: Belden Inc.
Beta
⌘K

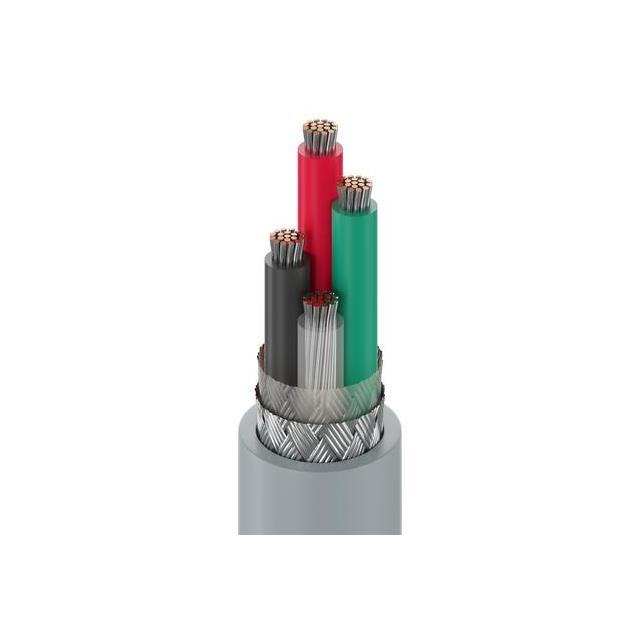

4 #20 PE SHLD PVC
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Usage | Length | Length | Ratings | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Wire Gauge | Jacket (Insulation) Material | Voltage | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Tinned Viscose | 19 | 32 AWG | Double Braid | 4 | 0.252 in | 6.4 mm | Microphone | Audio | 304.8 m | 1000 ft | AWM Style 2094 | Copper Tinned | 0.813 mm | 0.032 in | Chrome | 20 AWG | Poly-Vinyl Chloride (PVC) | 300 VDC | Polyethylene (PE) | -20 ░C | 60 °C |
