AYA01B Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K

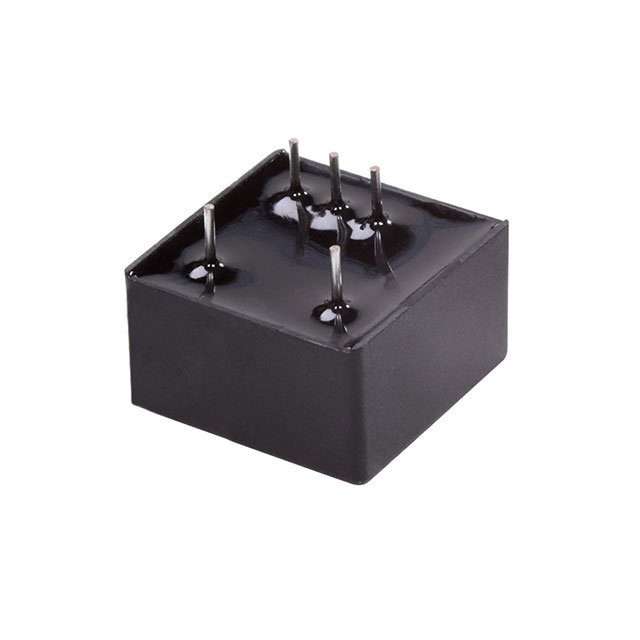

DC DC CONVERTER 12V 3W
| Part | Voltage - Isolation | Number of Outputs | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Features | Package / Case | Current - Output (Max) [Max] | Voltage - Output 1 | Mounting Type | Type | Voltage - Input (Max) [Max] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 1.5 kV | 1 | 85 % | 0.31 " | 14 mm | 14 mm | 0.55 " | 0.55 in | 8 mm | SCP | 7-DIP Module 4 Leads | 250 mA | 12 V | Through Hole | Isolated Module | 10 V | ITE (Commercial) | 85 °C | -40 C | 3 W | 4.5 V |
ARTESYN / Advanced Energy | 1.5 kV | 1 | 87 % | 0.31 " | 14 mm | 14 mm | 0.55 " | 0.55 in | 8 mm | SCP | 7-DIP Module 4 Leads | 250 mA | 12 V | Through Hole | Isolated Module | 18 V | ITE (Commercial) | 85 °C | -40 C | 3 W | 9 V |
