800UDP8 Series
Manufacturer: E-Switch
Beta
⌘K
PUSHBUTTON SWITCHES PUSHBUTTON, DPDT , ON-(ON), THROUGH HOLE, RIGHT ANGLE, BLACK, IP67
| Part | Mechanical Life | Electrical Life | Features | Termination Style | Actuator Type | Voltage Rating - DC | Circuit | Type | Current Rating (Amps) | Mounting Type | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Color - Actuator/Cap | Ingress Protection | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

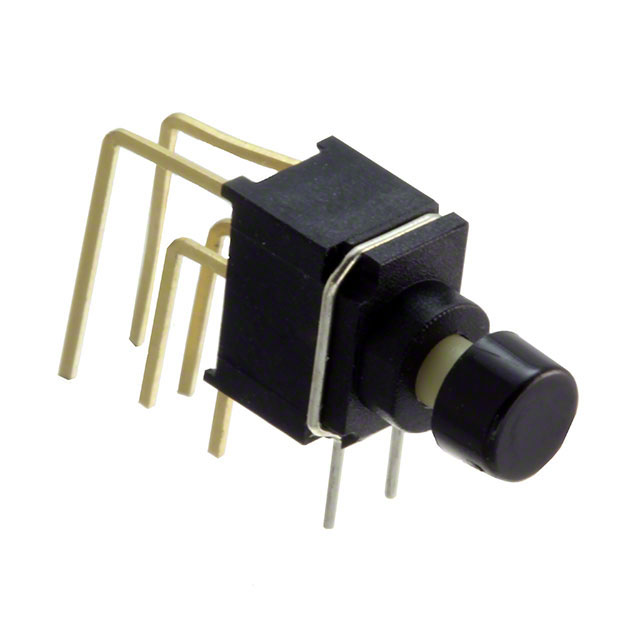

 E-Switch | 40000 Cycles | 6000 Cycles | Epoxy Sealed Terminals | PC Pin | Button Round | 20 V | DPDT | Standard | 0.4 VA | Right Angle Through Hole | No Marking | 85 °C | -30 ░C | 20 V | Black | IP67 - Dust Tight Waterproof | On-Mom |

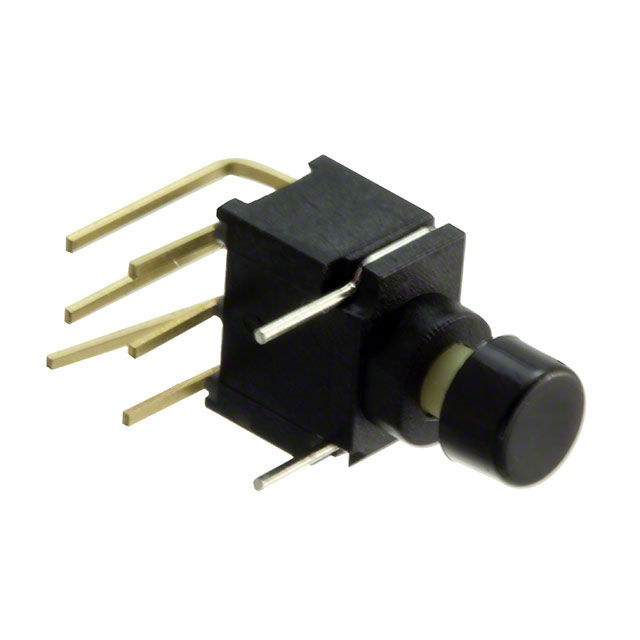

 E-Switch | 40000 Cycles | 6000 Cycles | Epoxy Sealed Terminals | PC Pin | Button Round | 20 V | DPDT | Standard | 0.4 VA | Right Angle Through Hole Vertical | No Marking | 85 °C | -30 ░C | 20 V | Black | IP67 - Dust Tight Waterproof | On-Mom |

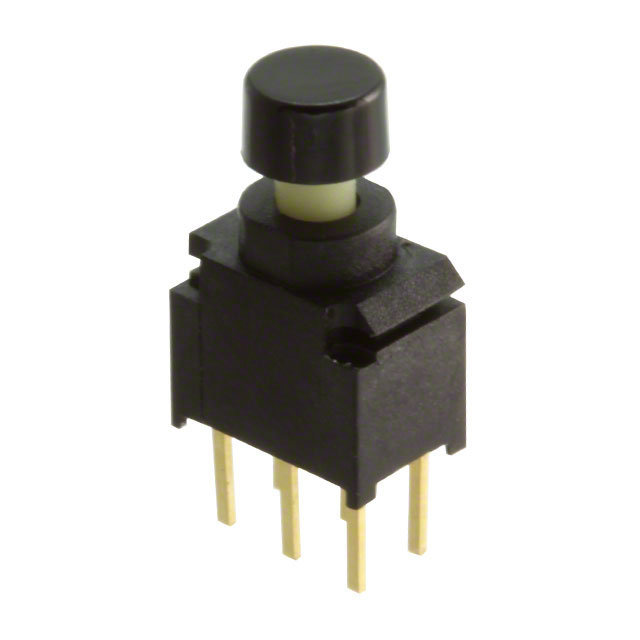

 E-Switch | 40000 Cycles | 6000 Cycles | Epoxy Sealed Terminals | PC Pin | Button Round | 20 V | DPDT | Standard | 0.4 VA | Through Hole | No Marking | 85 °C | -30 ░C | 20 V | Black | IP67 - Dust Tight Waterproof | On-Mom |
