9525 Series
Manufacturer: Belden Inc.
Beta
⌘K

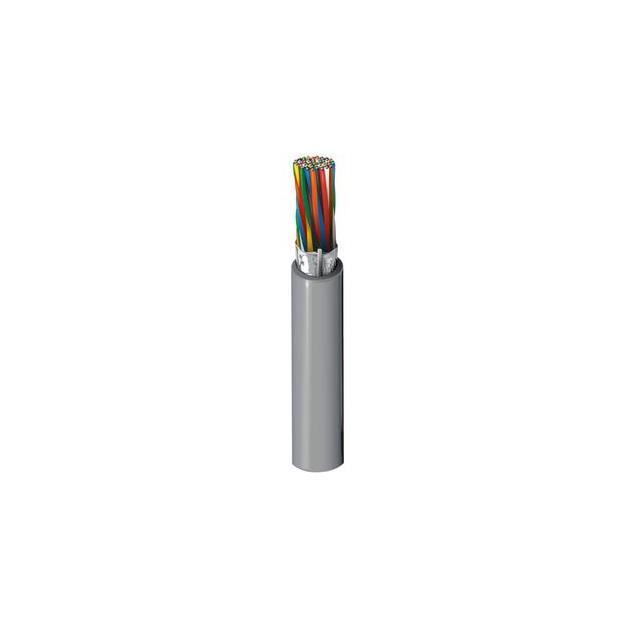

MULTI-PAIR 50COND 24AWG
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Usage | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Ratings | Features | Number of Conductors | Wire Gauge | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Length | Length | Voltage | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 7 | 32 AWG | 12.78 mm | 0.503 " | Poly-Vinyl Chloride (PVC) | Computer | Multi-Pair | 80 °C | -30 ░C | Chrome | UL Style 2464 | Drain Wire | 50 | 24 AWG | Poly-Vinyl Chloride (PVC) | Foil | 1.143 mm | 0.045 in | 304.8 m | 1000 ft | 300 VDC | Copper Tinned |
Belden Inc. | Aluminum | 100 % | 7 | 32 AWG | 12.78 mm | 0.503 " | Poly-Vinyl Chloride (PVC) | Computer | Multi-Pair | 80 °C | -30 ░C | Chrome | UL Style 2464 | Drain Wire | 50 | 24 AWG | Poly-Vinyl Chloride (PVC) | Foil | 1.143 mm | 0.045 in | 152.4 m | 500 ft | 300 VDC | Copper Tinned |
