075710 Series
Manufacturer: Molex
Beta
⌘K

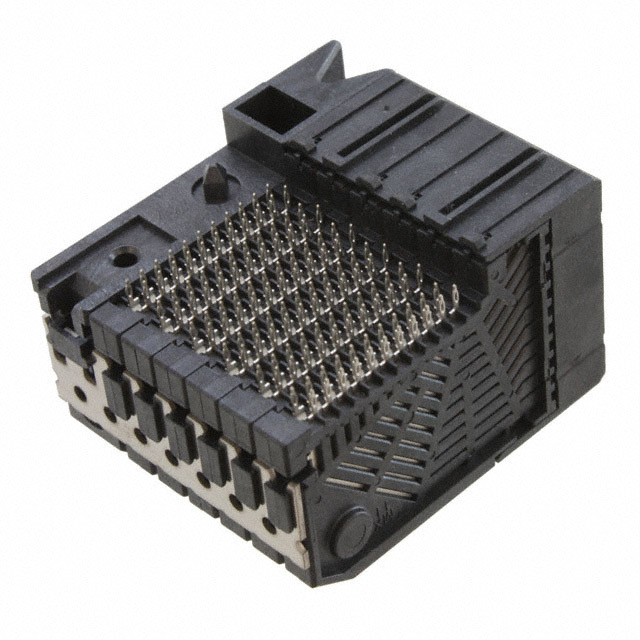

CONN RCPT I-TRAC 220POS PCB
| Part | Connector Type | Number of Positions Loaded | Contact Finish | Number of Positions | Connector Style | Connector Usage | Connector Usage | Termination | Contact Finish Thickness | Contact Finish Thickness | Color | Material Flammability Rating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Number of Columns | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Receptacle Female Sockets | All | Gold | 220 | I-Trac | Coplanar | Daughtercard | Press-Fit | 0.76 Ám | 30 Áin | Black | UL94 V-0 | Through Hole Right Angle | 80 C | -55 °C | 11 | 10 | 120 VDC |
 Molex | Receptacle Female Sockets | All | Gold | 132 | Guide Left I-Trac | Coplanar | Daughtercard | Press-Fit | 0.76 Ám | 30 Áin | Black | UL94 V-0 | Board Edge Right Angle Through Hole | 80 C | -55 °C | 11 | 6 | 120 VDC |
