807-088 Series
Manufacturer: EDAC Inc.
Beta
⌘K

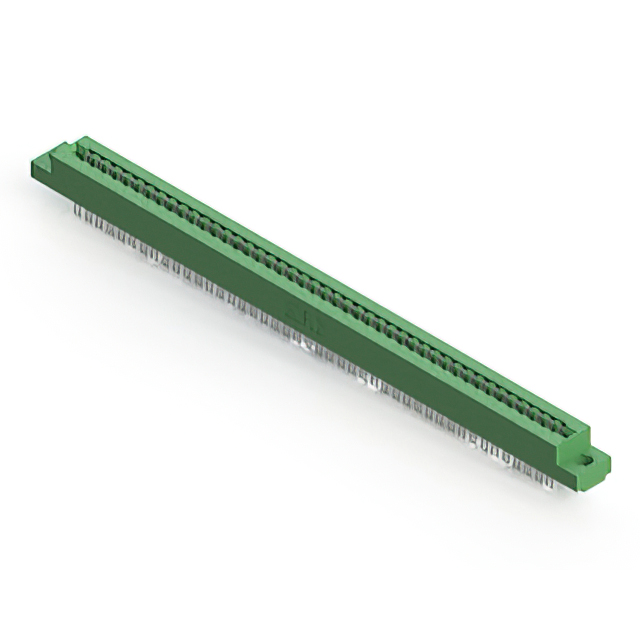

CONN EDGE DUAL FMALE 88POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Contact Finish | Number of Rows [custom] | Gender | Contact Type | Card Type | Number of Positions/Bay/Row | Contact Material | Read Out | Number of Positions | Termination | Color | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | 2 | Female | Semi Bellows | Non Specified - Dual Edge | 44 | Copper Alloy | Dual | 88 | Solder | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 125 °C | -40 C | Through Hole | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Tin | 2 | Female | Semi Bellows | Non Specified - Dual Edge | 44 | Copper Alloy | Dual | 88 | Solder | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 125 °C | -40 C | Through Hole | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | 2 | Female | Semi Bellows | Non Specified - Dual Edge | 44 | Copper Alloy | Dual | 88 | Solder | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 125 °C | -40 C | Board Edge Straddle Mount | Flush Mount M3 Threaded Insert Top Opening | Card Extender | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | 2 | Female | Semi Bellows | Non Specified - Dual Edge | 44 | Copper Alloy | Dual | 88 | Solder | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 125 °C | -40 C | Through Hole | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Tin | 2 | Female | Semi Bellows | Non Specified - Dual Edge | 44 | Copper Alloy | Dual | 88 | Solder Eyelet(s) | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 125 °C | -40 C | Through Hole | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Tin | 2 | Female | Semi Bellows | Non Specified - Dual Edge | 44 | Copper Alloy | Dual | 88 | Solder Eyelet(s) | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 125 °C | -40 C | Through Hole | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Tin | 2 | Female | Semi Bellows | Non Specified - Dual Edge | 44 | Copper Alloy | Single | 88 | Solder | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 125 °C | -40 C | Right Angle Through Hole | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Gold | 2 | Female | Semi Bellows | Non Specified - Dual Edge | 44 | Copper Alloy | Dual | 88 | Solder | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 125 °C | -40 C | Through Hole | ||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Tin | 2 | Female | Semi Bellows | Non Specified - Dual Edge | 44 | Copper Alloy | Dual | 88 | Solder | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 125 °C | -40 C | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | |||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Tin | 2 | Female | Semi Bellows | Non Specified - Dual Edge | 44 | Copper Alloy | Dual | 88 | Solder | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 125 °C | -40 C | Through Hole | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " |
