3415 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PG R 22-16 COMM 22-18 MIL 3/8

Part	Contact Finish	Thickness	Thickness	Mounting Type	Material - Insulation	Width - Outer Edges [custom]	Width - Outer Edges [custom]	Contact Material	Insulation	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Features	Stud/Tab Size	Termination	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Color	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Termination	Length - Termination	Tongue Inside Opening [x]	Tongue Inside Opening [x]

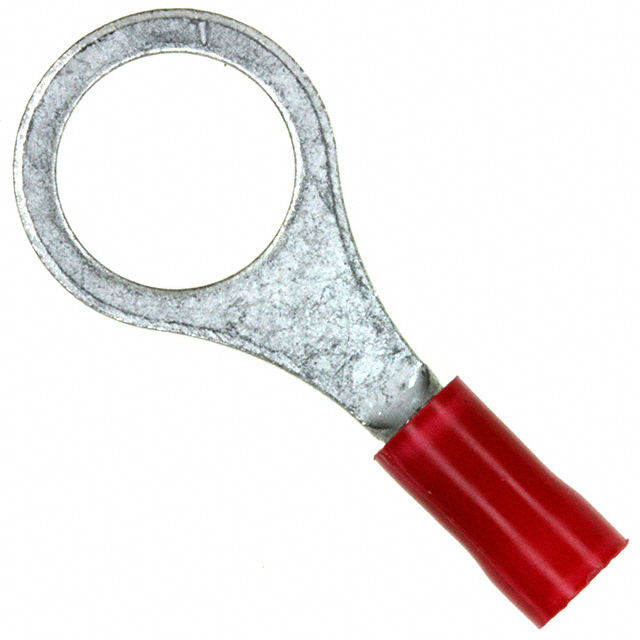

TE Connectivity Raychem Cable Protection 34152	Tin	0.031 in	0.79 mm	Free Hanging (In-Line)	Poly-Vinyl Chloride (PVC)	13.49 mm	0.531 "	Copper	Insulated	0.14 in	0.105 in	3.56 mm	2.67 mm	Serrated Termination	3/8 Stud	Crimp	Circular	22 AWG	16 AWG	31.24 mm	1.23 in	Red
TE Connectivity Raychem Cable Protection 34157	Tin	0.031 in	0.79 mm	Free Hanging (In-Line)	Poly-Vinyl Chloride (PVC)			Copper	Insulated					Serrated Termination		Crimp	Circular			18.16 mm	0.715 "	Blue	4.9 mm	3 mm	0.193 in	0.118 in	0.25 "	6.35 mm	4 Stud
TE Connectivity Raychem Cable Protection 34156				Free Hanging (In-Line)	Poly-Vinyl Chloride (PVC)			Copper	Insulated	0.14 in	0.105 in	3.56 mm	2.67 mm	Serrated Termination		Crimp	Standard	22 AWG	16 AWG	23.37 mm	0.92 "	Red							10 Stud	7.92 mm	0.312 in	0.375 in	9.53 mm	10.57 mm	0.416 in	5 mm	0.197 in
