696422 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

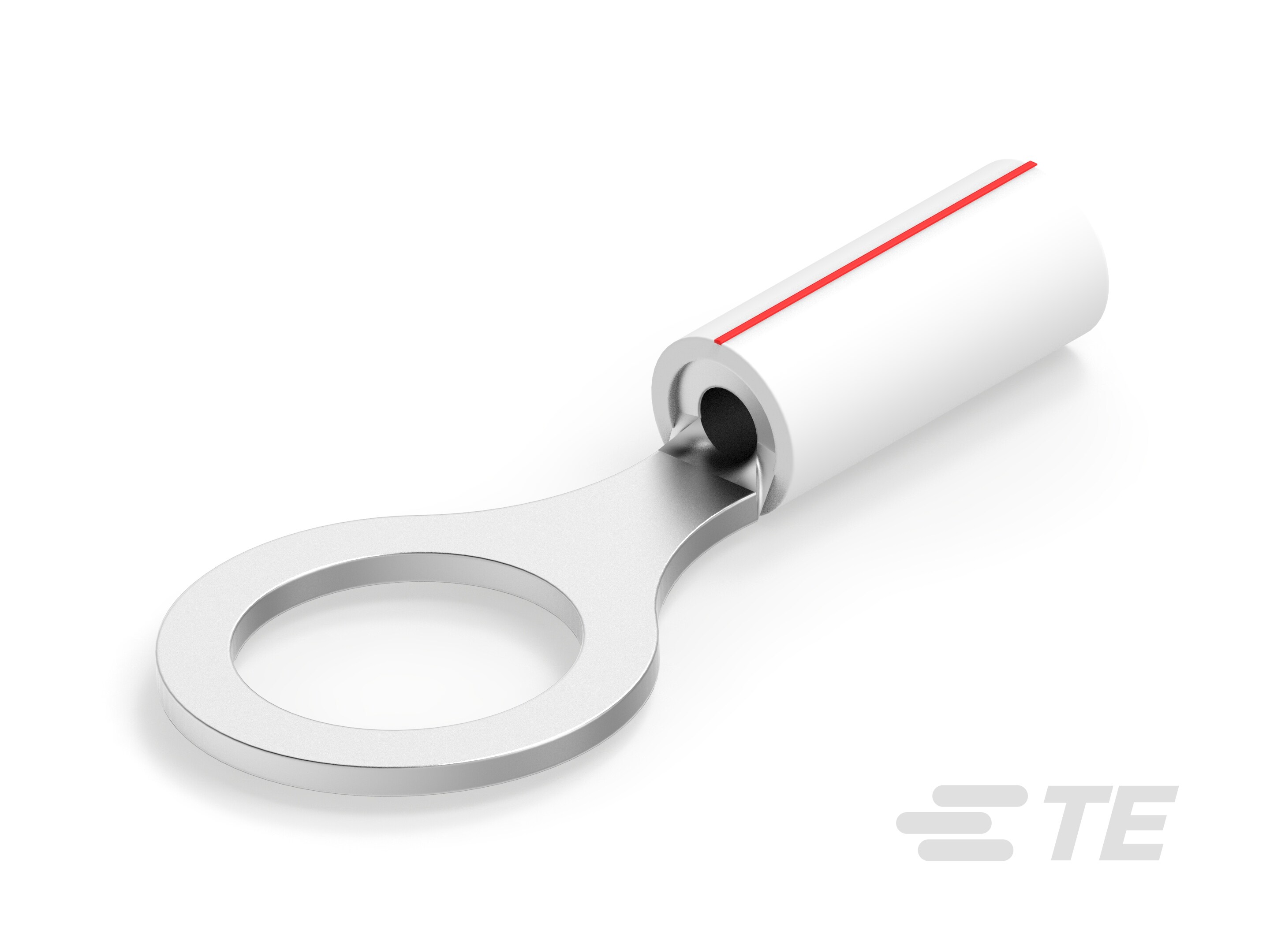

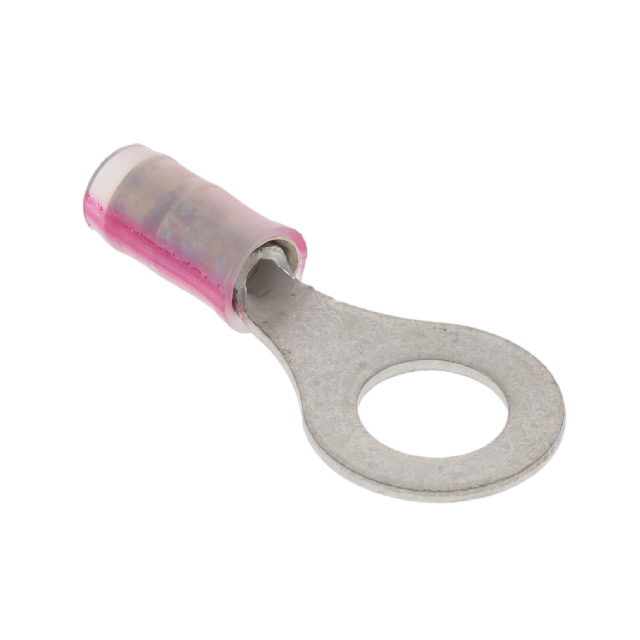

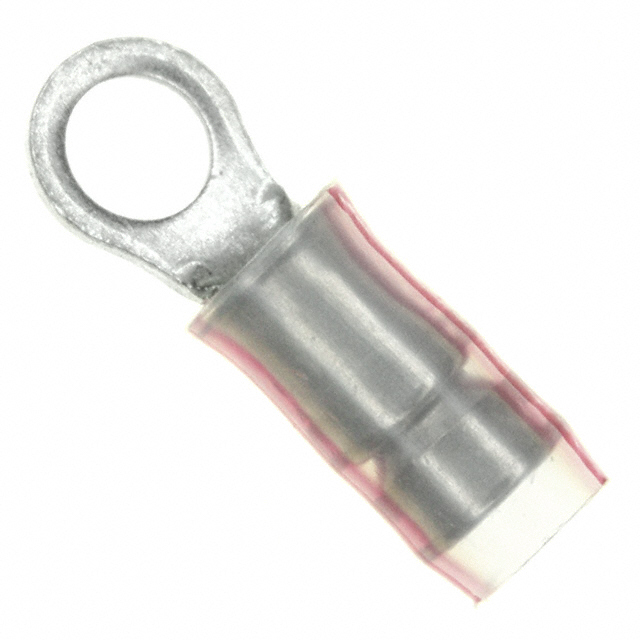

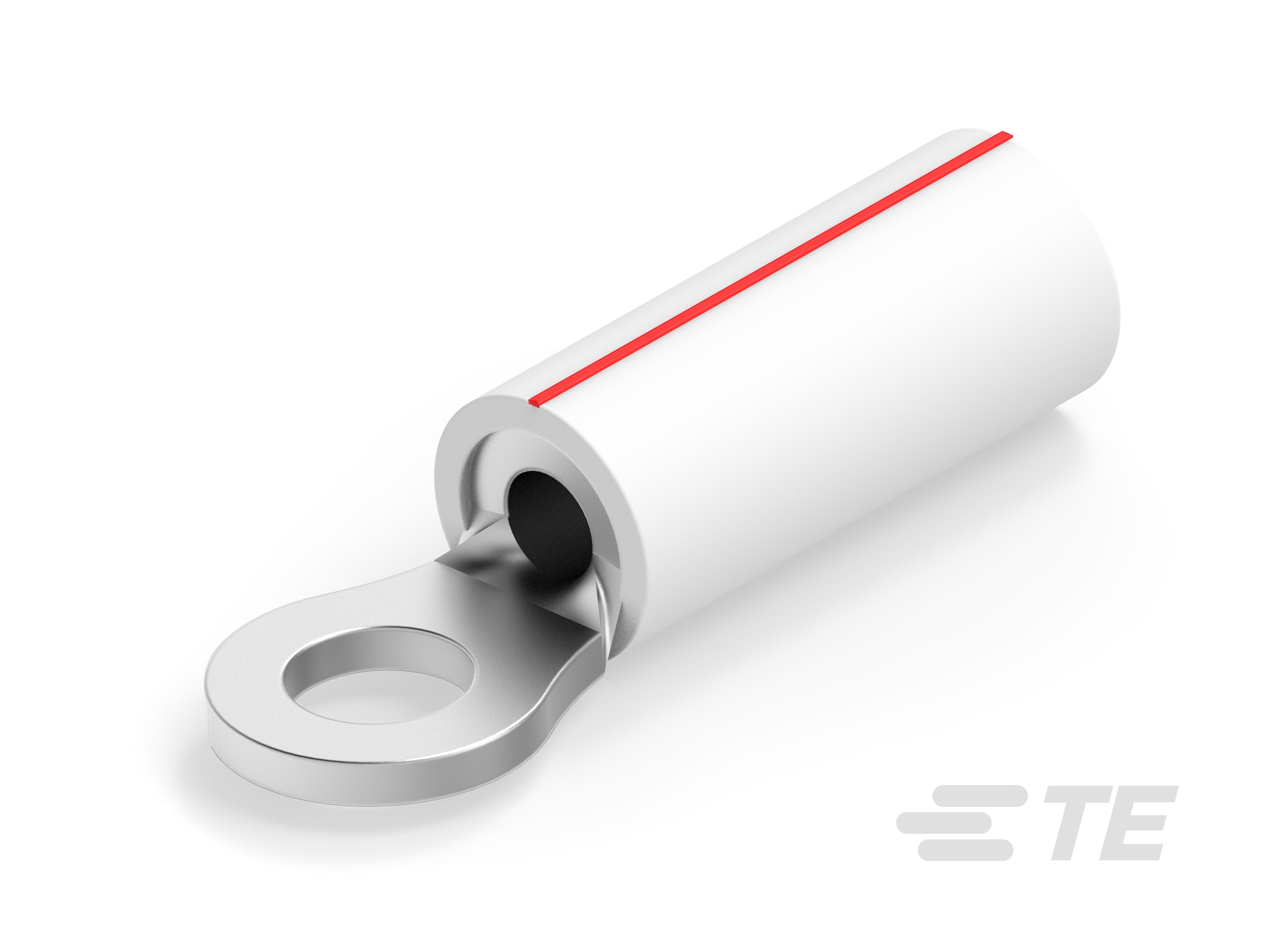

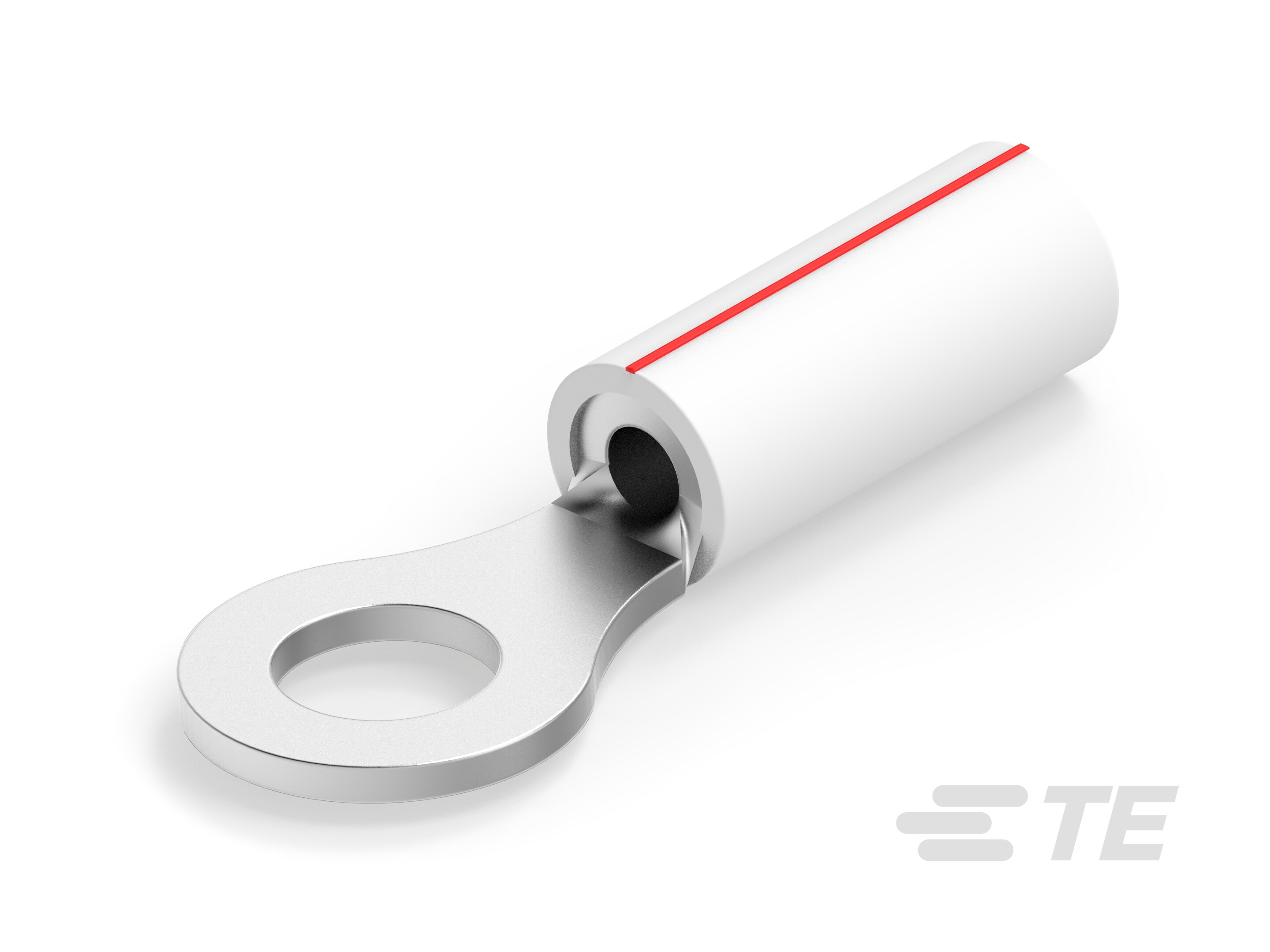

PIDG PVF2 22-16COM22-18MIL5/16
| Part | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Material - Insulation | Contact Finish | Stud/Tab Size | Contact Material | Termination | Width - Outer Edges [x] | Width - Outer Edges [x] | Thickness | Thickness | Features | Length - Overall [x] | Length - Overall [x] | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Color | Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.08 " | 3.18 mm | 2.03 mm | 0.125 in | Polyvinylidene Fluoride (PVDF) | Tin | 0.3125 Stud | Copper | Crimp | 11.91 mm | 0.469 " | 0.79 mm | 0.031 in | Radiation Resistant Serrated Termination | 1.083 " | 27.51 mm | Circular | 16 AWG | 22 AWG | Free Hanging (In-Line) | Natural Red Stripe | Insulated | ||
 TE Connectivity AMP Connectors | 0.08 " | 3.18 mm | 2.03 mm | 0.125 in | Polyvinylidene Fluoride (PVDF) | Tin | 6 Stud | Copper | Crimp | 0.79 mm | 0.031 in | Radiation Resistant Serrated Termination | 0.677 " | 17.2 mm | Circular | 16 AWG | 22 AWG | Free Hanging (In-Line) | Natural Red Stripe | Insulated | 0.218 in | 5.54 mm | ||
 TE Connectivity AMP Connectors | 0.08 " | 3.18 mm | 2.03 mm | 0.125 in | Polyvinylidene Fluoride (PVDF) | Tin | 4 Stud | Copper | Crimp | 0.79 mm | 0.031 in | Radiation Resistant Serrated Termination | 0.677 " | 17.2 mm | Circular | 16 AWG | 22 AWG | Free Hanging (In-Line) | Natural Red Stripe | Insulated | 0.218 in | 5.54 mm | ||
 TE Connectivity AMP Connectors | 0.08 " | 3.18 mm | 2.03 mm | 0.125 in | Polyvinylidene Fluoride (PVDF) | Tin | 0.25 Stud | Copper | Crimp | 11.91 mm | 0.469 " | 0.79 mm | 0.031 in | Radiation Resistant Serrated Termination | 1.083 " | 27.51 mm | Circular | 16 AWG | 22 AWG | Free Hanging (In-Line) | Natural Red Stripe | Insulated | ||
 TE Connectivity AMP Connectors | 0.08 " | 3.18 mm | 2.03 mm | 0.125 in | Polyvinylidene Fluoride (PVDF) | Tin | 8 Stud | Copper | Crimp | 7.92 mm | 0.312 in | 0.79 mm | 0.031 in | Radiation Resistant Serrated Termination | 0.849 in | 21.56 mm | Circular | 16 AWG | 22 AWG | Free Hanging (In-Line) | Natural Red Stripe | Insulated |
