QFWB-5 Series

Manufacturer: Qualtek

Catalog

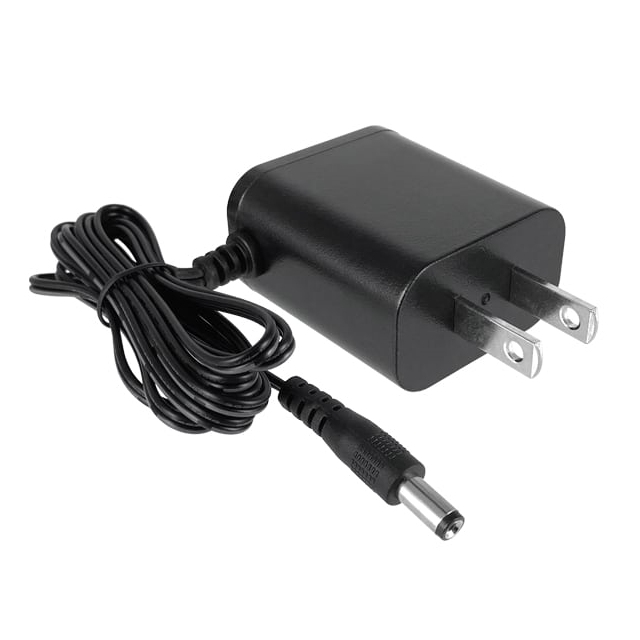

AC/DC WALL MOUNT ADAPTER 5V 6W

Part	Weight	Weight	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Output Connector [x]	Output Connector [diameter]	Output Connector	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption	Region Utilized	Cord Length	Cord Length	Voltage - Output	Applications	Efficiency	Power (Watts)	Form	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Current - Output (Max) [Max]	Polarization	Approval Agency	Input Type
Qualtek QFWB-5-5-US01	0.121 lb	54.88 g	24 mm	42 mm	1.65 "	0.94 in	39.2 mm	1.54 in	11 mm	2.1 mm 5.5 mm	Barrel Plug	100 VAC	240 VAC	100 mW	North America	1.5 m	59 in	5 V	ITE (Commercial)	Level VI	6 W	Wall Mount	40 °C	0 °C	NEMA 1-15P	1.2 A	Positive Center	cULus	Fixed Blade
Qualtek QFWB-5-12-US01	0.121 lb	54.88 g	24 mm	42 mm	1.65 "	0.94 in	39.2 mm	1.54 in	11 mm	2.1 mm 5.5 mm	Barrel Plug	100 VAC	240 VAC	100 mW	North America	1.5 m	59 in	12 V	ITE (Commercial)	Level VI	6 W	Wall Mount	40 °C	0 °C	NEMA 1-15P	500 mA	Positive Center	cULus	Fixed Blade
