172672 Series

Manufacturer: Molex

Catalog

7.50MM PITCH SUPER SABRE RECEPTACLE CRIMP HOUSING, UL 94V-2, GLOW-WIRE CAPABLE, 3 CIRCUITS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Material - Insulation	Note	Fastening Type	Color	Pitch	Pitch	Mounting Type	Contact Type	Connector Type	Number of Rows	Contact Termination	Number of Positions

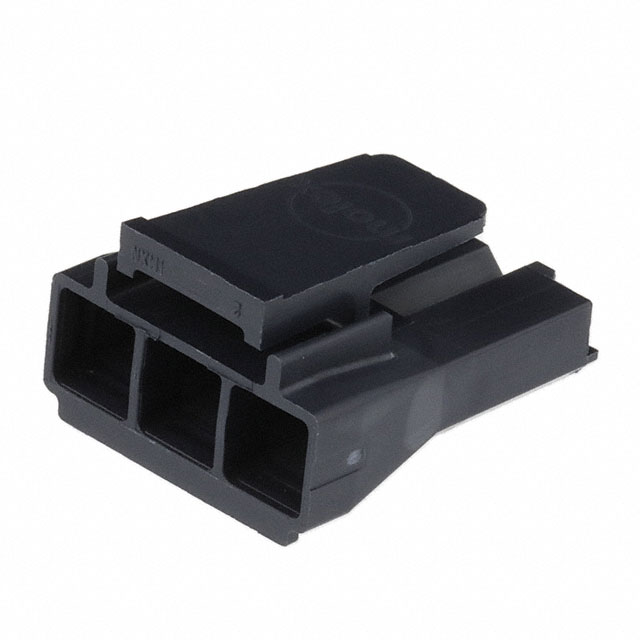

Molex 1726723003	125 °C	-40 C	34 A	Nylon Polyamide (PA)	Contacts Not Included	Latch Lock	Black	0.295 in	7.5 mm	Free Hanging (In-Line)	Female Blade Socket	Receptacle	1	Crimp

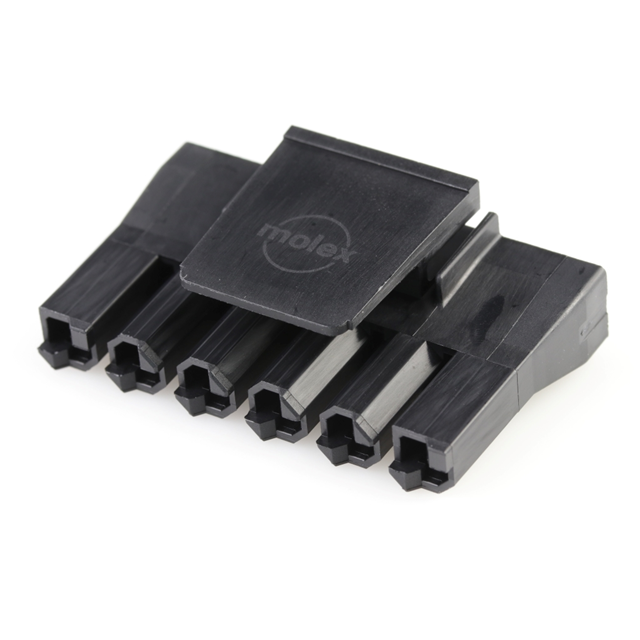

Molex 1726723006	125 °C	-40 C	34 A	Nylon Polyamide (PA)	Contacts Not Included	Latch Lock	Black	0.295 in	7.5 mm	Free Hanging (In-Line)	Female Blade Socket	Receptacle	1	Crimp	6

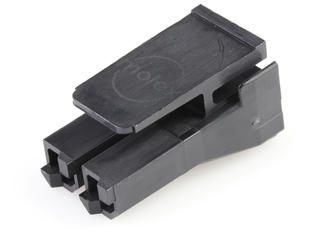

Molex 1726722002							Black	0.295 in	7.5 mm	Free Hanging (In-Line)	Female Blade Socket	Receptacle	1	Crimp	2

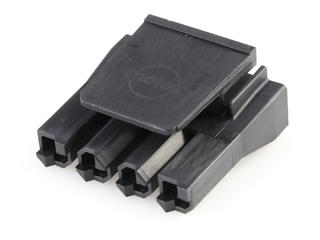

Molex 1726723004	125 °C	-40 C	34 A	Nylon Polyamide (PA)	Contacts Not Included	Latch Lock	Black	0.295 in	7.5 mm	Free Hanging (In-Line)	Female Blade Socket	Receptacle	1	Crimp	4

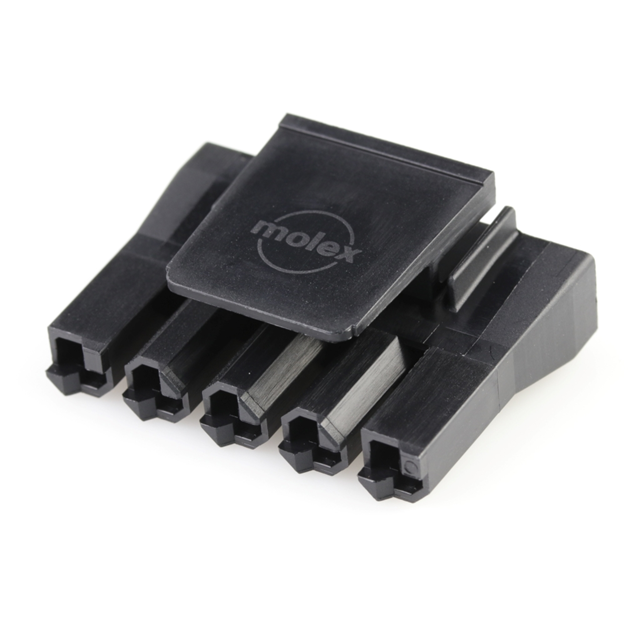

Molex 1726723005	125 °C	-40 C	34 A	Nylon Polyamide (PA)	Contacts Not Included	Latch Lock	Black	0.295 in	7.5 mm	Free Hanging (In-Line)	Female Blade Socket	Receptacle	1	Crimp	5

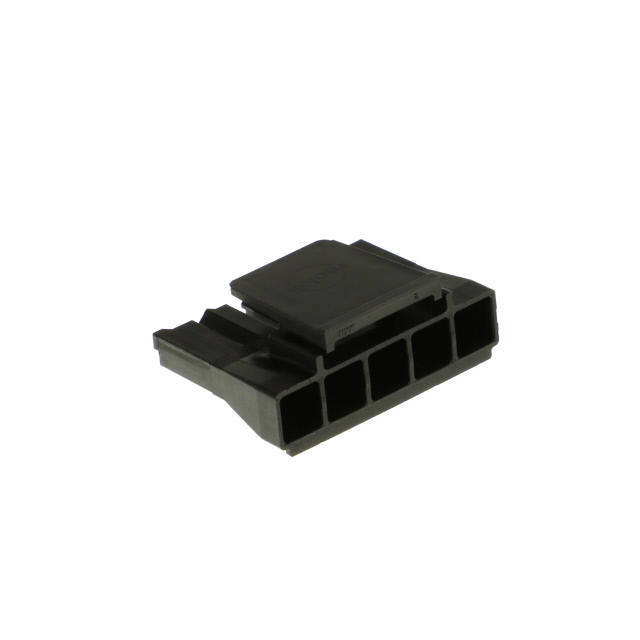

Molex 1726722005	125 °C	-40 C	34 A	Nylon Polyamide (PA)	Contacts Not Included	Latch Lock	Black	0.295 in	7.5 mm	Free Hanging (In-Line)	Female Blade Socket	Receptacle	1	Crimp	5
Molex 1726723002							Black	0.295 in	7.5 mm	Free Hanging (In-Line)	Female Blade Socket	Receptacle	1	Crimp	2

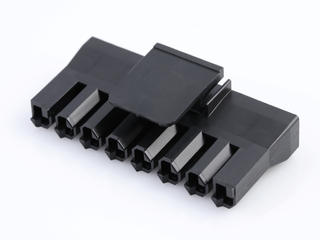

Molex 1726723008							Black	0.295 in	7.5 mm	Free Hanging (In-Line)	Female Blade Socket	Receptacle	1	Crimp	8
Molex 1726722006	125 °C	-40 C	34 A	Nylon Polyamide (PA)	Contacts Not Included	Latch Lock	Black	0.295 in	7.5 mm	Free Hanging (In-Line)	Female Blade Socket	Receptacle	1	Crimp	6

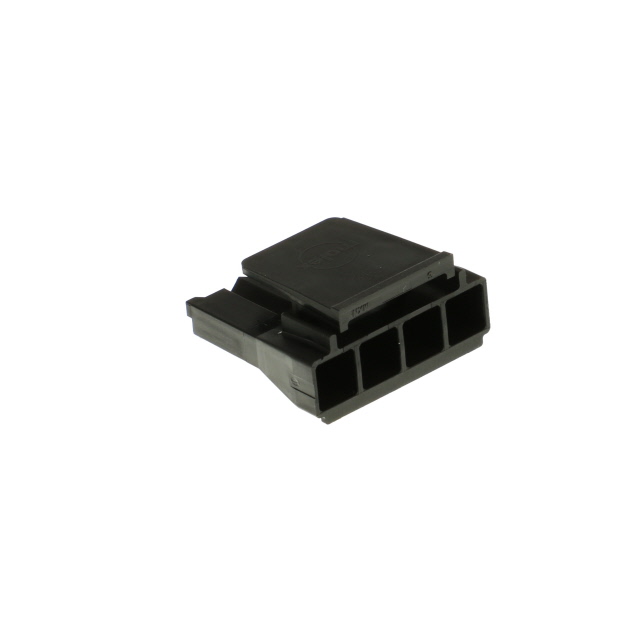

Molex 1726722004	125 °C	-40 C	34 A	Nylon Polyamide (PA)	Contacts Not Included	Latch Lock	Black	0.295 in	7.5 mm	Free Hanging (In-Line)	Female Blade Socket	Receptacle	1	Crimp	4
