53S205 Series
Manufacturer: Rosenberger
Beta
⌘K

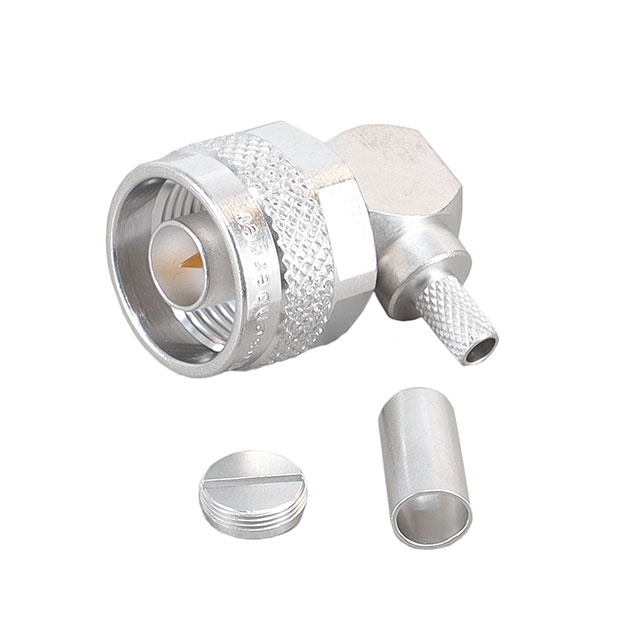

CONN N TYPE PLUG RA 50OHM SOLDER
| Part | Voltage Rating | Center Contact Plating | Includes | Body Finish | Insertion Loss | Body Material | Dielectric Material | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Shield Termination | Contact Termination | Mounting Type | Fastening Type | Frequency - Max [Max] | Number of Ports | Connector Type | Housing Color | Center Contact Material | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 V | Gold | 1 Connector 1 End Cap | Silver | 0.05 dB | Brass | Polytetrafluoroethylene (PTFE) | 500 | 155 C | -55 C | N Type | Solder | Solder | Free Hanging (In-Line) Right Angle | Threaded | 11 GHz | 1 | Plug Male Pin | Silver | Brass | 50 Ohms |
