632-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K
632 SERIES RIGHT ANGLE D-SUB REC
| Part | Dielectric Material | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Material Flammability Rating | Shell Material, Finish | Connector Style | Contact Type | Connector Type | Current Rating (Amps) | Termination | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Flange Feature | Features | Mounting Type | Backset Spacing | Backset Spacing | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

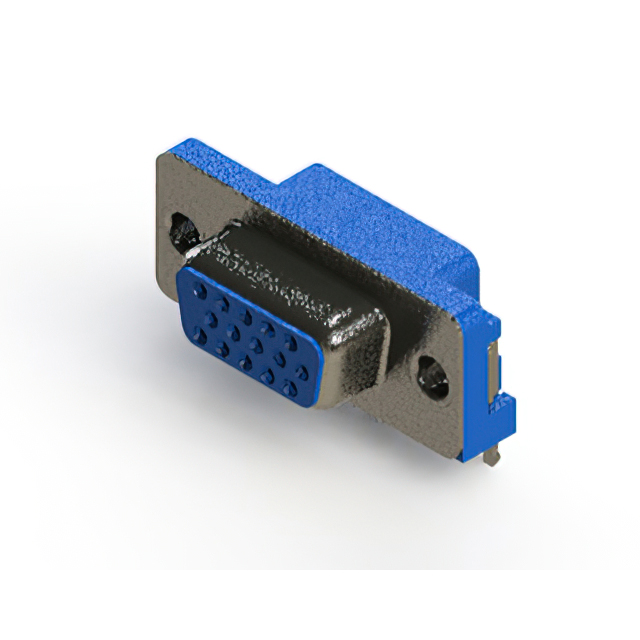

 EDAC Inc. | Polyester Thermoplastic | Brass | Blue | -55 C | 125 °C | 3 | UL94 V-0 | Nickel Plated Steel | D-Sub High Density | Signal | Receptacle Female Sockets | 3 A | Solder | Gold | (DE E) High Density | 1 | 30 Áin | 0.76 Ám | 15 | Housing/Shell (M3) | Board Lock Shielded | Right Angle Through Hole | ||||

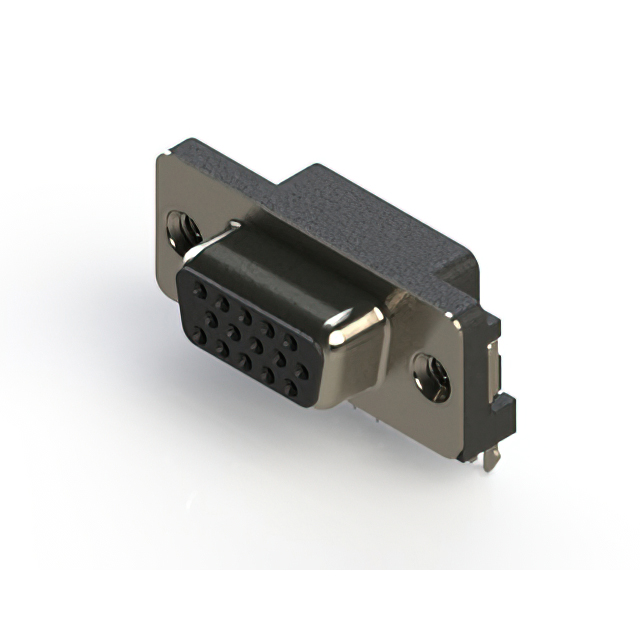

 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 125 °C | 3 | UL94 V-0 | Nickel Plated Steel | D-Sub High Density | Signal | Receptacle Female Sockets | 3 A | Solder | Gold | (DE E) High Density | 1 | 30 Áin | 0.76 Ám | 15 | Housing/Shell | Board Lock Shielded | Right Angle Through Hole | 3.08 mm | 0.121 in | 4-40 | |

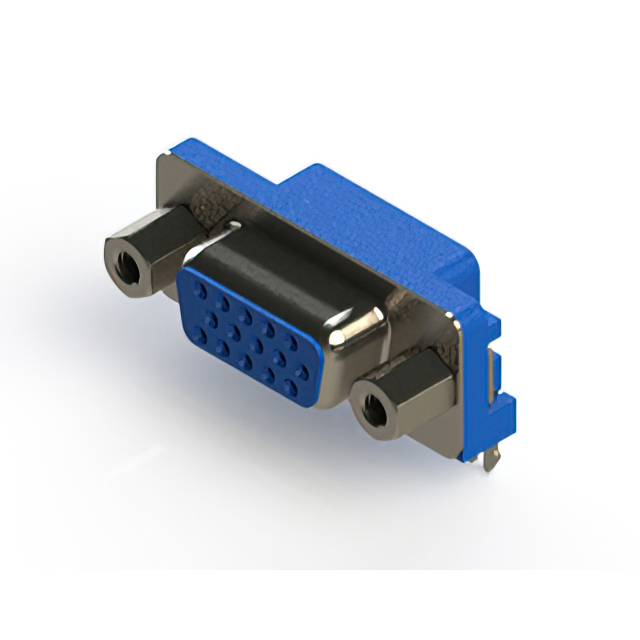

 EDAC Inc. | Polyester Thermoplastic | Brass | Blue | -55 C | 125 °C | 3 | UL94 V-0 | Nickel Plated Steel | D-Sub High Density | Signal | Receptacle Female Sockets | 3 A | Solder | Gold | (DE E) High Density | 1 | 15 µin | 0.38 µm | 15 | 4-40 Mating Side Female Screwlock | Board Lock Shielded | Right Angle Through Hole | ||||

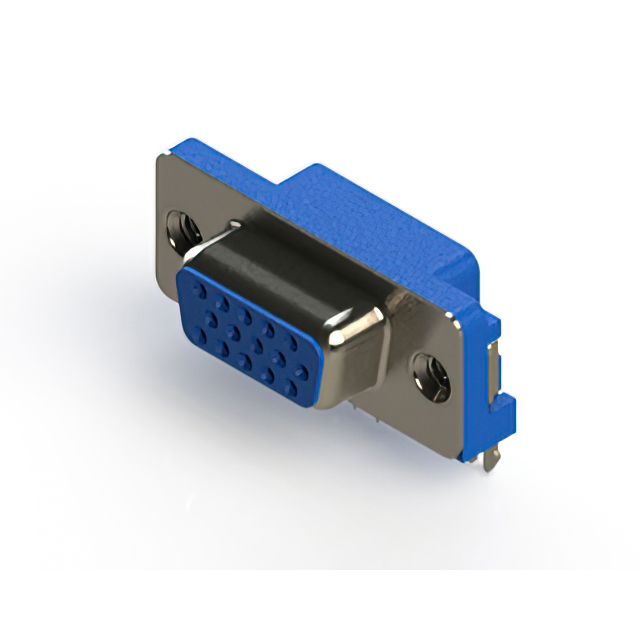

 EDAC Inc. | Polyester Thermoplastic | Brass | Blue | -55 C | 85 °C | 3 | UL94 V-0 | Nickel Plated Steel | D-Sub High Density | Signal | Receptacle Female Sockets | 3 A | Solder | Gold | (DE E) High Density | 1 | 30 Áin | 0.76 Ám | 15 | Housing/Shell (Unthreaded) | Board Lock Shielded | Right Angle Through Hole | ||||
 EDAC Inc. | Polyester Thermoplastic | Brass | Blue | -55 C | 85 °C | 3 | UL94 V-0 | Nickel Plated Steel | D-Sub High Density | Signal | Receptacle Female Sockets | 3 A | Solder | Gold | (DE E) High Density | 1 | 15 | Housing/Shell | Board Lock Shielded | Right Angle Through Hole | 4-40 | Flash | ||||
 EDAC Inc. | Polyester Thermoplastic | Brass | Blue | -55 C | 125 °C | 3 | UL94 V-0 | Nickel Plated Steel | D-Sub High Density | Signal | Receptacle Female Sockets | 3 A | Solder | Gold | (DE E) High Density | 1 | 15 µin | 0.38 µm | 15 | Housing/Shell (Unthreaded) | Board Lock Shielded | Right Angle Through Hole | ||||

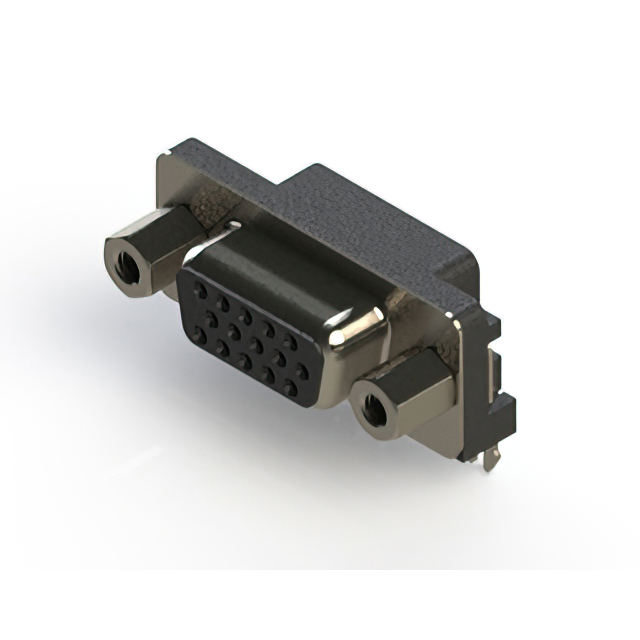

 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 85 °C | 3 | UL94 V-0 | Nickel Plated Steel | D-Sub High Density | Signal | Receptacle Female Sockets | 3 A | Solder | Gold | (DE E) High Density | 1 | 15 | 4-40 Mating Side Female Screwlock | Board Lock Shielded | Right Angle Through Hole | 3.08 mm | 0.121 in | Flash | |||
 EDAC Inc. | Polyester Thermoplastic | Brass | Blue | -55 C | 85 °C | 3 | UL94 V-0 | Nickel Plated Steel | D-Sub High Density | Signal | Receptacle Female Sockets | 3 A | Solder | Gold | (DE E) High Density | 1 | 15 µin | 0.38 µm | 15 | Housing/Shell (M3) | Board Lock Shielded | Right Angle Through Hole | ||||

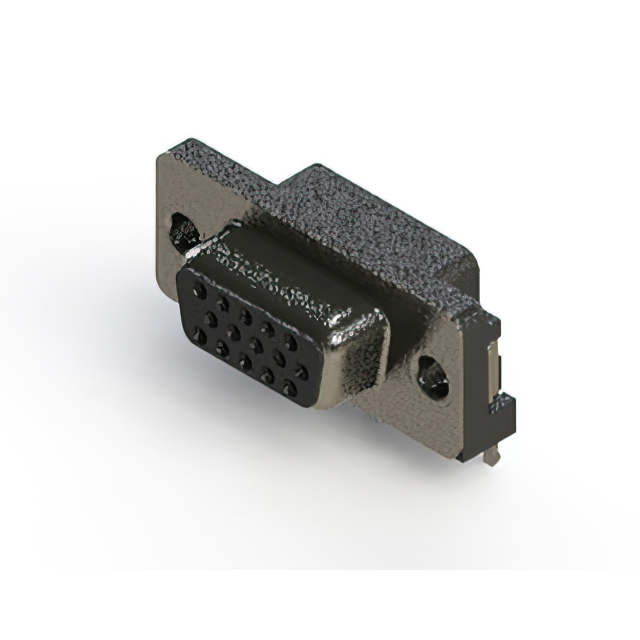

 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 125 °C | 3 | UL94 V-0 | Nickel Plated Steel | D-Sub High Density | Signal | Receptacle Female Sockets | 3 A | Solder | Gold | (DE E) High Density | 1 | 15 | Housing/Shell (M3) | Board Lock Shielded | Right Angle Through Hole | 3.08 mm | 0.121 in | Flash | |||
 EDAC Inc. | Polyester Thermoplastic | Brass | Black | -55 C | 125 °C | 3 | UL94 V-0 | Nickel Plated Steel | D-Sub High Density | Signal | Receptacle Female Sockets | 3 A | Solder | Gold | (DE E) High Density | 1 | 15 µin | 0.38 µm | 15 | Housing/Shell (Unthreaded) | Board Lock Shielded | Right Angle Through Hole | 3.08 mm | 0.121 in |
