170340 Series

Catalog

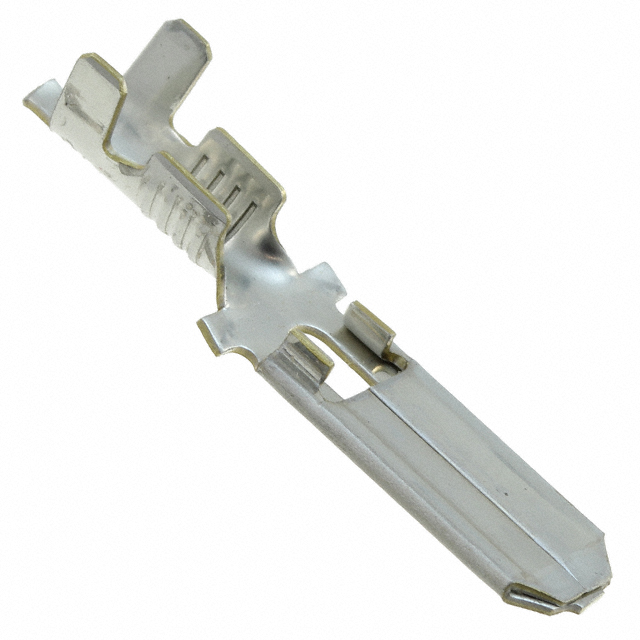

CONN QC TAB 14-20AWG 0.250 CRIMP

Part	Contact Material	Tab Length	Tab Length	Tab Width	Tab Width	Gender	Tab Thickness	Tab Thickness	Termination	Terminal Type	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall	Length - Overall	Mounting Type	Insulation	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Contact Finish
TE Connectivity Raychem Cable Protection 1-170340-3	Brass	0.543 in	13.8 mm	6.35 mm	0.25 in	Male	0.032 in	0.81 mm	Crimp	Standard	14 AWG	20 AWG	24.3 mm	0.957 in	Free Hanging (In-Line)	Non-Insulated	0.083 "	2.11 mm	0.134 in	3.4 mm	Tin
TE Connectivity Raychem Cable Protection 170340-3	Brass	0.543 in	13.8 mm	6.35 mm	0.25 in	Male	0.032 in	0.81 mm	Crimp	Standard	14 AWG	20 AWG	24.3 mm	0.957 in	Free Hanging (In-Line)	Non-Insulated	0.083 "	2.11 mm	0.134 in	3.4 mm	Tin
