PPPN181 Series

Catalog

CONN HDR 18POS 0.079 GOLD PCB

Part	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Shape	Termination	Number of Rows	Fastening Type	Mounting Type	Insulation Color	Contact Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Connector Type	Current Rating (Amps)	Contact Finish - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Number of Positions	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Voltage Rating

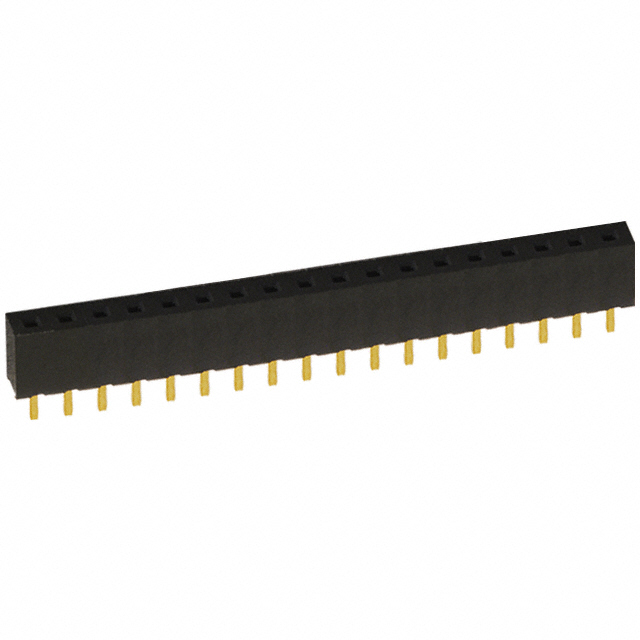

Sullins Connector Solutions PPPN181BFCN	Flash	Phosphor Bronze	Polyester	Square	Solder	1	Push-Pull	Through Hole	Black	Female Socket	UL94 V-0	2.4 mm	0.094 in	4.4 mm	0.173 in	Header	2 A	Gold	Flash	All	18	Gold	0.079 "	2 mm	-40 C	105 ░C
Sullins Connector Solutions PPPN181BFLC	Flash	Phosphor Bronze	Polyester	Square	Solder	1	Push-Pull	Surface Mount	Black	Female Socket	UL94 V-0					Header	2 A	Gold	Flash	All	18	Gold	0.079 "	2 mm	-40 C	105 ░C	0.181 in	4.6 mm	150 VDC
