NPPN032 Series

Catalog

CONN HDR 6POS 0.079 GOLD SMD

Part	Contact Finish Thickness - Post	Contact Shape	Contact Material	Insulation Material	Features	Mounting Type	Contact Type	Connector Type	Number of Positions Loaded	Material Flammability Rating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Termination	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Post	Contact Finish - Mating	Current Rating (Amps)	Number of Positions	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
Sullins Connector Solutions NPPN032GFNP-RC	Flash	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Board Guide	Surface Mount	Female Socket	Header Top or Bottom Entry	All	UL94 V-0	Black	-40 C	105 ░C	2	Solder	2 mm	0.079 in	0.079 "	2 mm	Flash	Push-Pull	Gold	Gold	2 A	6
Sullins Connector Solutions NPPN032GFNP-M81RC	Flash	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Board Guide Pick and Place	Surface Mount	Female Socket	Header Top or Bottom Entry	All	UL94 V-0	Black	-40 C	105 ░C	2	Solder	2 mm	0.079 in	0.079 "	2 mm	Flash	Push-Pull	Gold	Gold	2 A	6

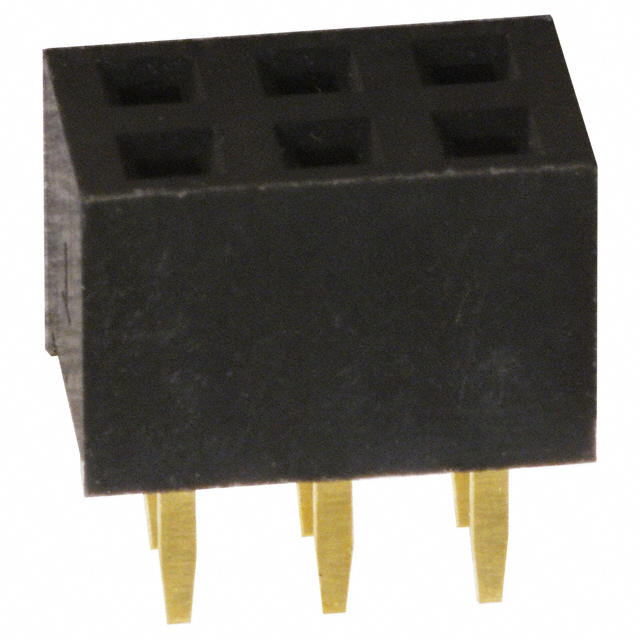

Sullins Connector Solutions NPPN032AFCN-RC	Flash	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)		Through Hole	Female Socket	Header	All	UL94 V-0	Black	-40 C	105 ░C	2	Solder	2 mm	0.079 in	0.079 "	2 mm	Flash	Push-Pull	Gold	Gold		6	2.4 mm	0.094 in	4.3 mm	0.169 "
