RR9LE5410 Series

Catalog

AC/DC DSKTP/WALL MT ADPT 12V 65W

Part	Approval Agency	Standard Number	No Load Power Consumption	Applications	Output Connector [diameter]	Output Connector	Output Connector [x]	Power (Watts)	Voltage - Output	Efficiency	Polarization	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Region Utilized	Operating Temperature [Min]	Operating Temperature [Max]	Form	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Input Type	Cord Length	Cord Length	Input Connector

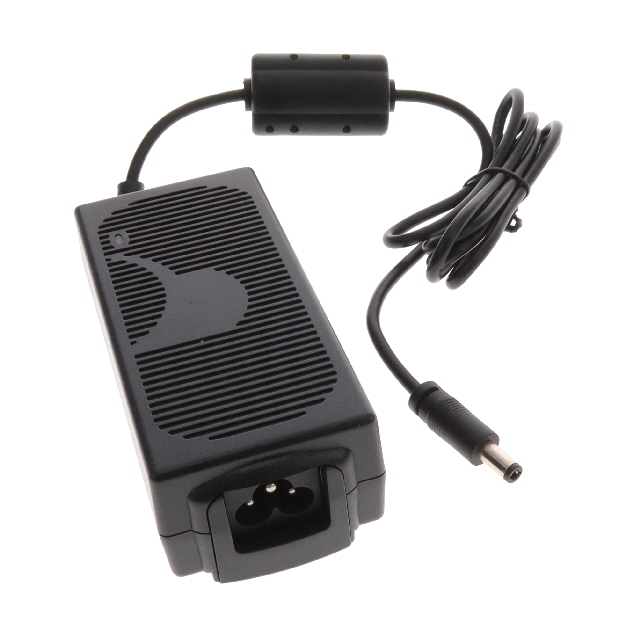

GlobTek, Inc. RR9LE5410LCP-IMR6B	CB CE cETLus EAC ETL FCC PSE S-Mark UkrSEPRO VCCI	60601-1-11 60601-1-2 62368-1	150 mW	ITE (Commercial) Medical	2.5 mm 5.5 mm	Barrel Plug	11 mm	65 W	12 V	CoC Tier 2 Level VI	Positive Center	264 VAC	90 VAC	5.41 A	International	-20 ░C	40 °C	Desktop Wall Mount	36.6 mm	53.5 mm	4.63 in	117.5 mm	2.11 in	1.44 in	Cord Multi-Blade (Sold Separately)	1.2 m	47.2 in

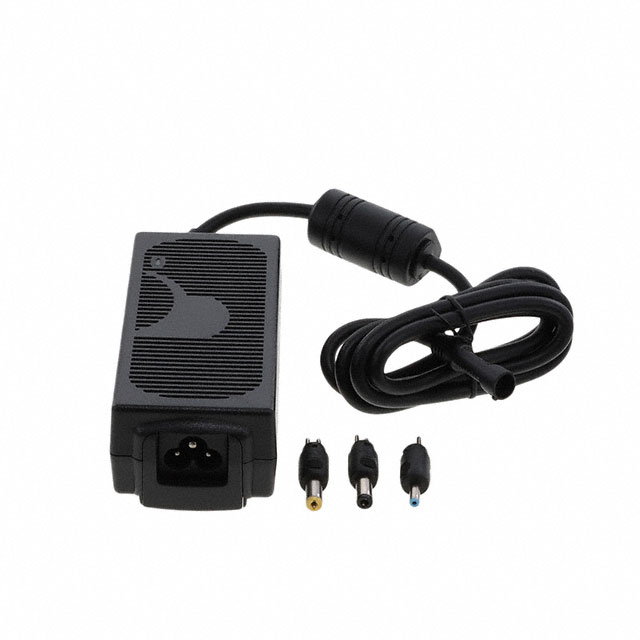

GlobTek, Inc. RR9LE5410T00-IMR6B	CB CE cETLus EAC ETL FCC PSE S-Mark UkrSEPRO VCCI	60601-1-11 60601-1-2 62368-1	150 mW	ITE (Commercial) Medical		Barrel Plug Kit (1.3mm x 3.5mm		65 W	12 V	CoC Tier 2 Level VI	Positive Tip Negative Sleeve	264 VAC	90 VAC	5.41 A	International	-20 ░C	40 °C	Desktop Wall Mount	36.6 mm	53.5 mm	4.63 in	117.5 mm	2.11 in	1.44 in	Cord Multi-Blade (Sold Separately)	1.2 m	47.2 in

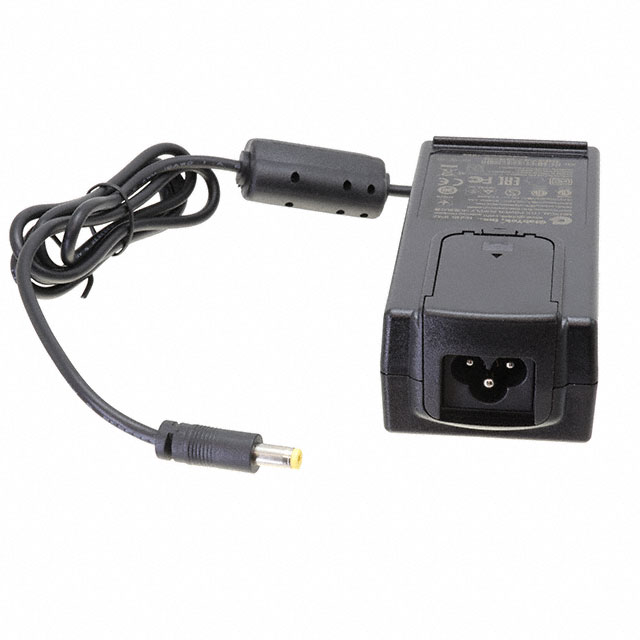

GlobTek, Inc. RR9LE5410CCP-IMR6B	CB CE cETLus EAC ETL FCC PSE S-Mark UkrSEPRO VCCI	60601-1-11 60601-1-2 62368-1	150 mW	ITE (Commercial) Medical	2.1 mm 5.5 mm	Barrel Plug	11 mm	65 W	12 V	CoC Tier 2 Level VI	Positive Center	264 VAC	90 VAC	5.41 A	International	-20 ░C	40 °C	Desktop Wall Mount	36.6 mm	53.5 mm	4.63 in	117.5 mm	2.11 in	1.44 in	Cord Multi-Blade (Sold Separately)	1.2 m	47.2 in
GlobTek, Inc. RR9LE5410CR9P-IMR6B	CB CE cETLus EAC ETL FCC PSE S-Mark UkrSEPRO VCCI	60601-1-11 60601-1-2 62368-1	150 mW	ITE (Commercial) Medical	2.1 mm 5.5 mm	Barrel Plug	9.5 mm	65 W	12 V	CoC Tier 2 Level VI	Positive Center	264 VAC	90 VAC	5.41 A	International	-20 ░C	40 °C	Desktop Wall Mount	36.6 mm	53.5 mm	4.63 in	117.5 mm	2.11 in	1.44 in	Multi-Blade (Sold Separately)	1.2 m	47.2 in	IEC 320-C6
