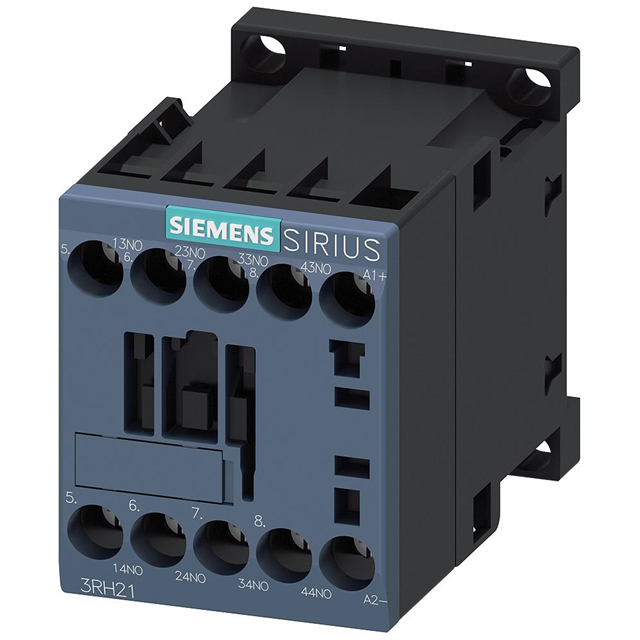

3RH21401 Series

Manufacturer: Siemens

Catalog

CONTACTOR RELAY 4NO DC 125V SCRE

Part	Coil Power	Release Time	Operate Time	Switching Voltage [Max]	Coil Voltage	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Features	Termination Style	Contact Rating (Current)	Mounting Type	Must Operate Voltage	Coil Voltage [Min]	Coil Voltage [Max]
Siemens 3RH21401BG40	4 W	13 ms	100 ms	690 VAC	125 VDC	4PST-NO (4 Form A)	-25 °C	60 °C	Auxiliary Contacts	Screw Terminal	10 A	Chassis Mount DIN Rail	100 VDC
Siemens 3RH21401AU60	37 VA	15 ms	33 ms	690 VAC	277 VAC	4PST-NO (4 Form A)	-25 °C	60 °C	Auxiliary Contacts	Screw Terminal	10 A	Chassis Mount DIN Rail	235.5 VAC
Siemens 3RH21401BN40	4 W	13 ms	100 ms	690 VAC	250 VDC	4PST-NO (4 Form A)	-25 °C	60 °C	Auxiliary Contacts	Screw Terminal	10 A	Chassis Mount DIN Rail	200 VDC
Siemens 3RH21401FB40	4 W	65 ms	100 ms	690 VAC	24 VDC	4PST-NO (4 Form A)	-25 °C	60 °C	Auxiliary Contacts	Screw Terminal	10 A	Chassis Mount DIN Rail	19.2 VDC
Siemens 3RH21401BW40	4 W	13 ms	100 ms	690 VAC	48 VDC	4PST-NO (4 Form A)	-25 °C	60 °C	Auxiliary Contacts	Screw Terminal	10 A	Chassis Mount DIN Rail	38.4 VDC
Siemens 3RH21401WB40	1.6 W	20 ms	120 ms	690 VAC	24 VDC	4PST-NO (4 Form A)	-25 °C	50 °C	Auxiliary Contacts	Screw Terminal	10 A	Chassis Mount DIN Rail	20.4 VDC
Siemens 3RH21401AV60	37 VA	15 ms	33 ms	690 VAC	480 VAC	4PST-NO (4 Form A)	-25 °C	60 °C	Auxiliary Contacts	Screw Terminal	10 A	Chassis Mount DIN Rail	408 VAC
Siemens 3RH21401BE80	4 W	13 ms	100 ms	690 VAC	80 VDC	4PST-2NO/2NC (2 Form A 2 Form B)	-25 °C	60 °C	Auxiliary Contacts	Screw Terminal	10 A	Chassis Mount DIN Rail	64 VDC
Siemens 3RH21401AN60	37 VA	15 ms	33 ms	690 VAC		4PST-NO (4 Form A)	-25 °C	60 °C	Auxiliary Contacts	Screw Terminal	10 A	Chassis Mount DIN Rail		200 VAC/DC	220 VAC/DC
Siemens 3RH21401AM20	37 VA	15 ms	33 ms	690 VAC	208 VAC	4PST-NO (4 Form A)	-25 °C	60 °C	Auxiliary Contacts	Screw Terminal	10 A	Chassis Mount DIN Rail	176.8 VAC
