FR20204VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
RECEPTACLE, THR, SINGLE ROW, .10
| Part | Insulation Material | Contact Shape | Contact Material | Mounting Type | Contact Type | Insulation Height | Insulation Height | Termination | Number of Positions Loaded | Contact Finish - Mating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Number of Rows | Number of Positions | Contact Finish Thickness - Mating | Insulation Color | Connector Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Rows [custom] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

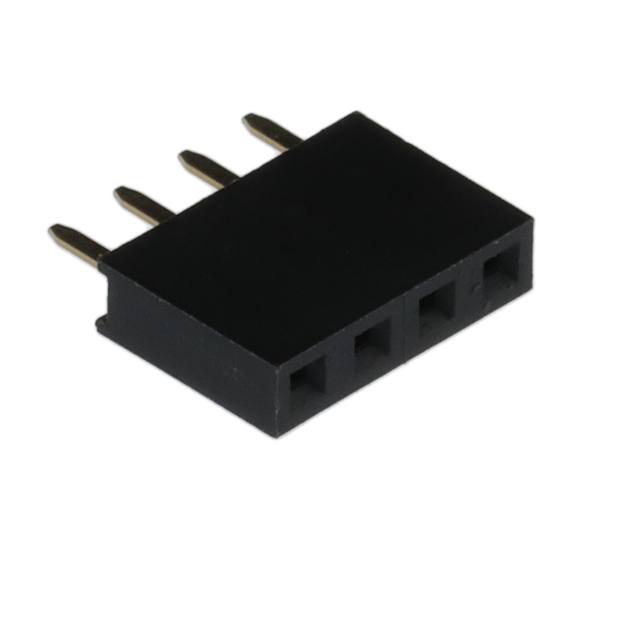

 METZ CONNECT USA Inc. | Nylon 6 Polyamide (PA6) | Square | Copper Alloy | Through Hole | Female Socket | 0.28 in | 7.1 mm | Solder | All | Gold | Push-Pull | -40 C | 105 ░C | 0.118 in | 3 mm | 0.1 " | 2.54 mm | 1 | 4 | Flash | Black | Receptacle | ||||

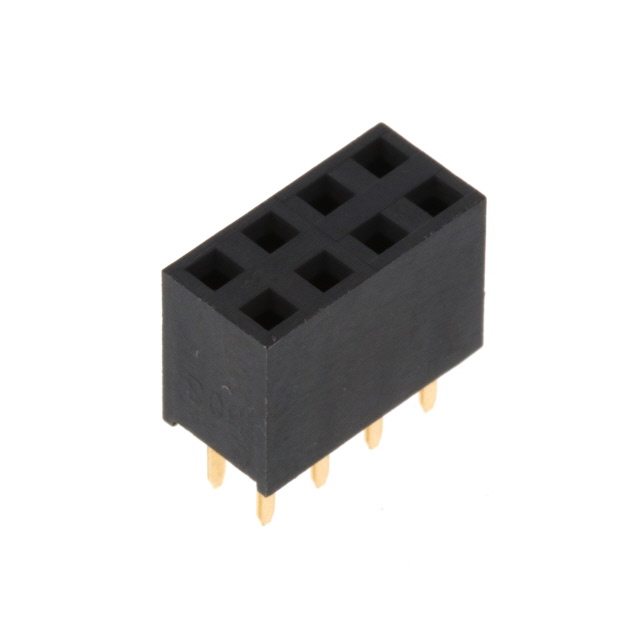

 METZ CONNECT USA Inc. | Nylon 6 Polyamide (PA6) | Square | Copper Alloy | Through Hole | Female Socket | 0.28 in | 7.1 mm | Solder | All | Gold | Push-Pull | -40 C | 105 ░C | 0.118 in | 3 mm | 0.1 " | 2.54 mm | 8 | Flash | Black | Receptacle | 0.1 in | 2.54 mm | 2 | IP00 |
