055836 Series
Manufacturer: Molex
Beta
⌘K
CONN PLUG HSG 30POS 3.00MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Features | Connector Type | Row Spacing [x] | Row Spacing [x] | Mounting Type | Number of Positions | Contact Type | Color | Pitch [x] | Pitch [x] | Fastening Type | Number of Rows | Note | Insulation Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | -40 °C | 105 ░C | Assembly Kit | Plug | 0.118 in | 3 mm | Free Hanging (In-Line) | 30 | Male Pin | Gray | 3 mm | 0.118 in | Push-Pull | 6 | Contacts Not Included | Polycarbonate (PC) Polyester | Crimp |
 Molex | -40 °C | 105 ░C | Assembly Kit | Plug | 0.118 in | 3 mm | Free Hanging (In-Line) | 20 | Male Pin | Gray | 3 mm | 0.118 in | Push-Pull | 5 | Contacts Not Included | Polyester | Crimp |

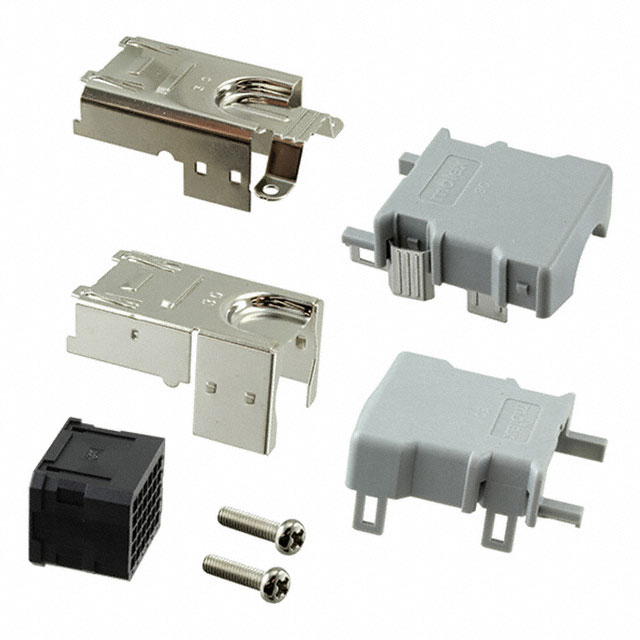

Molex | -40 °C | 105 ░C | Assembly Kit | Plug | 0.118 in | 3 mm | Free Hanging (In-Line) | 30 | Male Pin | Gray | 3 mm | 0.118 in | Push-Pull | 6 | Contacts Not Included | Polycarbonate (PC) Polyester | Crimp |

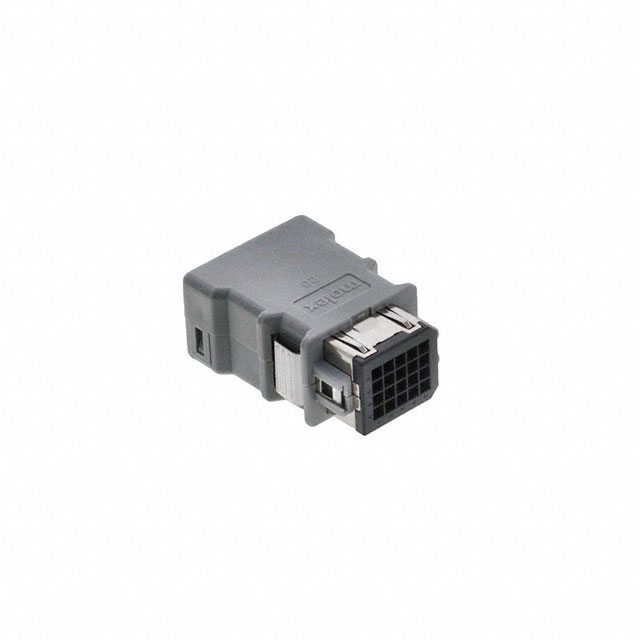

Molex | -40 °C | 105 ░C | Assembly Kit | Plug | 0.118 in | 3 mm | Free Hanging (In-Line) | 20 | Male Pin | Gray | 3 mm | 0.118 in | Push-Pull | 5 | Contacts Not Included | Polycarbonate (PC) Polyester | Crimp |

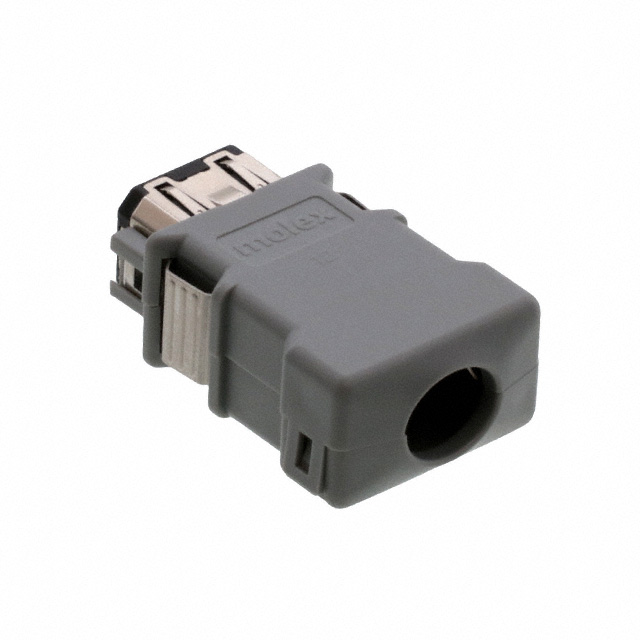

 Molex | -40 °C | 105 ░C | Assembly Kit | Plug | 0.118 in | 3 mm | Free Hanging (In-Line) | 12 | Male Pin | Gray | 3 mm | 0.118 in | Push-Pull | Contacts Not Included | Polyester | Crimp | |
 Molex | -40 °C | 105 ░C | Assembly Kit | Plug | 0.118 in | 3 mm | Free Hanging (In-Line) | 30 | Male Pin | Gray | 3 mm | 0.118 in | Push-Pull | 6 | Contacts Not Included | Polyester | Crimp |
