PPPN172 Series

Catalog

CONN HDR 34POS 0.079 GOLD PCB

Part	Insulation Material	Contact Finish Thickness - Post	Contact Shape	Contact Material	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Connector Type	Insulation Color	Contact Finish - Mating	Number of Positions [custom]	Contact Length - Post	Contact Length - Post	Mounting Type	Number of Rows [custom]	Fastening Type	Contact Finish - Post	Insulation Height [z]

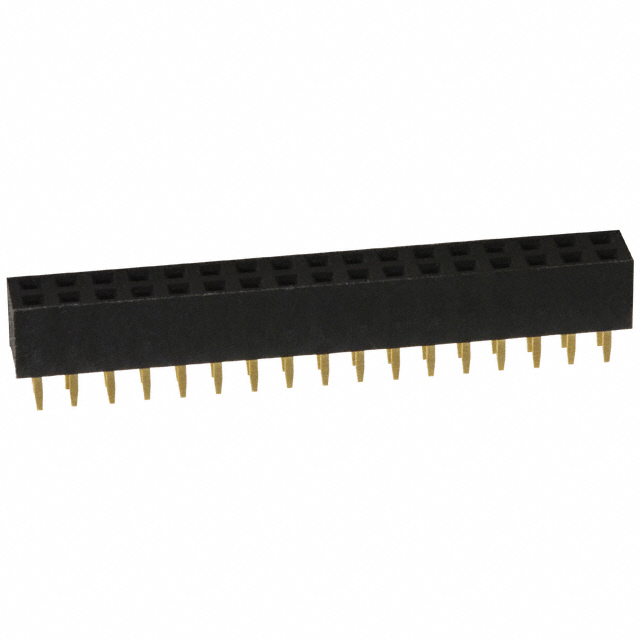

Sullins Connector Solutions PPPN172AFCN	Polyester	Flash	Square	Phosphor Bronze	0.079 "	2 mm	All	4.3 mm	0.169 "	2 mm	0.079 in	Flash	UL94 V-0	Solder	-40 C	105 ░C	Female Socket	Header	Black	Gold	34	2.4 mm	0.094 in	Through Hole	2	Push-Pull	Gold

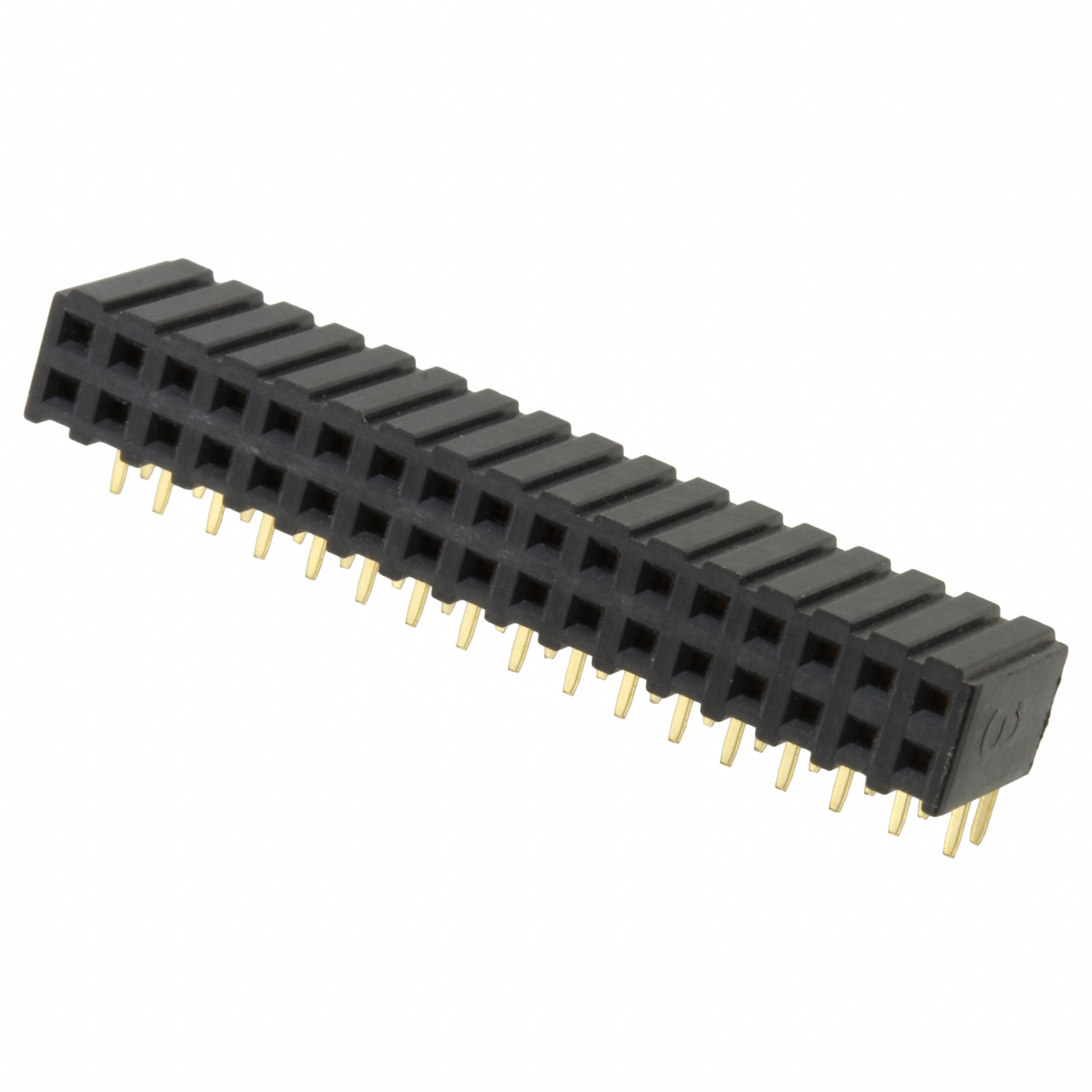

Sullins Connector Solutions PPPN172FJFN	Polyester	Flash	Square	Phosphor Bronze	0.079 "	2 mm	All	4.85 mm		2 mm	0.079 in	Flash	UL94 V-0	Solder	-40 C	105 ░C	Female Socket	Header	Black	Gold	34	3 mm	0.118 in	Right Angle Through Hole	2	Push-Pull	Gold	0.191 in
