R19166 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
QLI FEMALE -7/16 MALE STRAIGHT A
| Part | Center Contact Material | Dielectric Material | Body Finish | Body Material | Center Contact Plating | Impedance | Convert To (Adapter End) | Conversion Type | Frequency - Max [Max] | Convert From (Adapter End) | Style | Mounting Type | Fastening Type | Fastening Type | Adapter Series | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

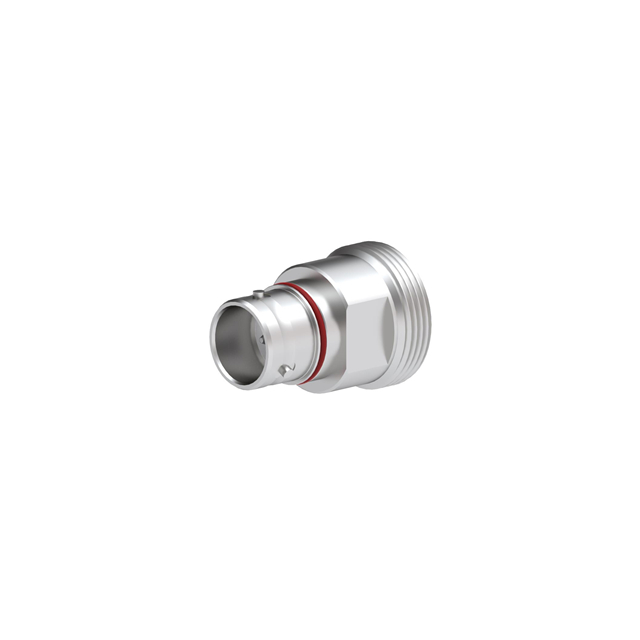

 Radiall USA, Inc. | Bronze | Polytetrafluoroethylene (PTFE) | White Bronze | Brass | Silver | 50 Ohms | 7/16 Plug Male Pin | Between Series | 6000 MHz | Female Socket QLI Jack | Straight | Free Hanging (In-Line) | Threaded | Bayonet Lock | QLI to 7/16 | Plug to Jack |

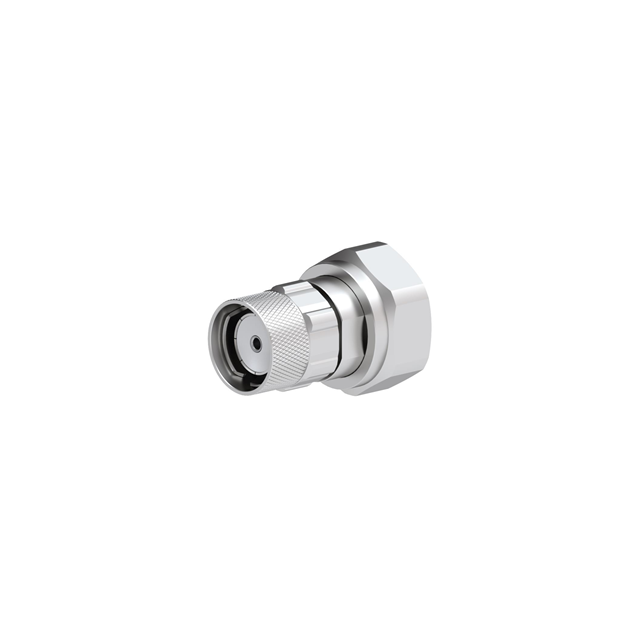

 Radiall USA, Inc. | Bronze | Polytetrafluoroethylene (PTFE) | White Bronze | Brass | Silver | 50 Ohms | 7/16 Jack Female Socket | Between Series | 6000 MHz | Male Pin QLI Plug | Straight | Free Hanging (In-Line) | Threaded | Bayonet Lock | QLI to 7/16 | Plug to Jack |
