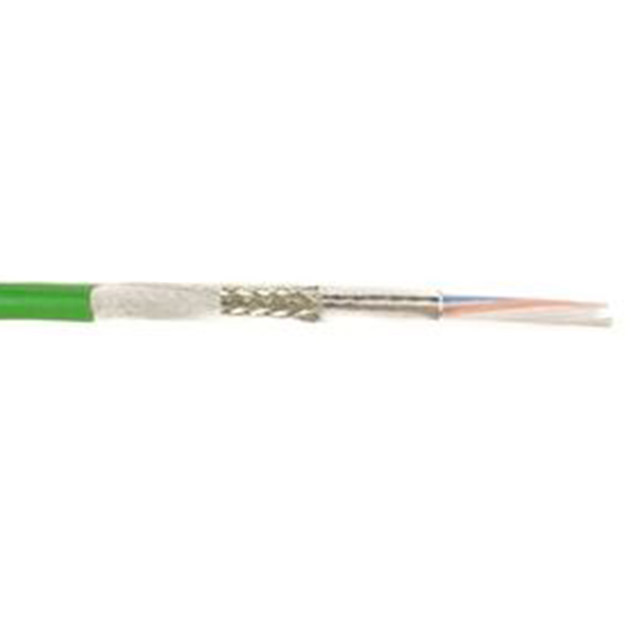

74005 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTICONDUCTOR CABLE, ETHERNET, TORSIONAL FLEX, CAT5, SHIELDED, 4 CONDUCTOR, 22 AWG, 500 FT
| Part | Shield Material | Shield Coverage | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Insulation | Cable Type | Voltage | Features | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Shield Type | Jacket (Insulation) Material | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 85 % 100 % | Copper Tinned | 34 AWG | 19 | 80 °C | -40 C | 3.05 m 15.24 m 152.4 m | 10 ft 50 ft 500 ft | 4 | 0.256 in | 6.5 mm | 22 AWG | Polypropylene (PP) | Multi-Conductor | 300 VDC | Oil Resistant | 100 ft | 30.5 m | 0.031 in | 0.787 mm | Green | Braid Foil | Thermoplastic Polyurethane (TPU) | Industrial Network |
